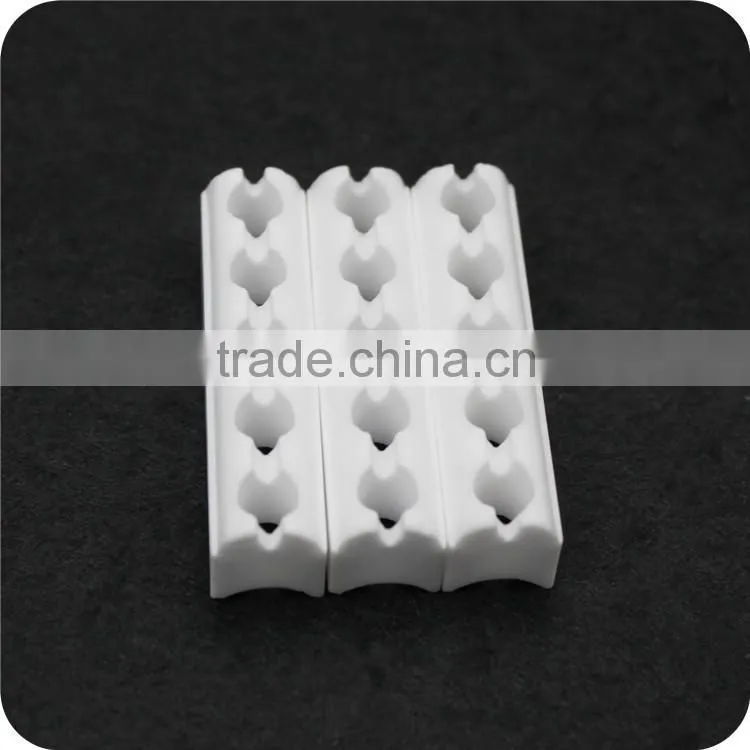

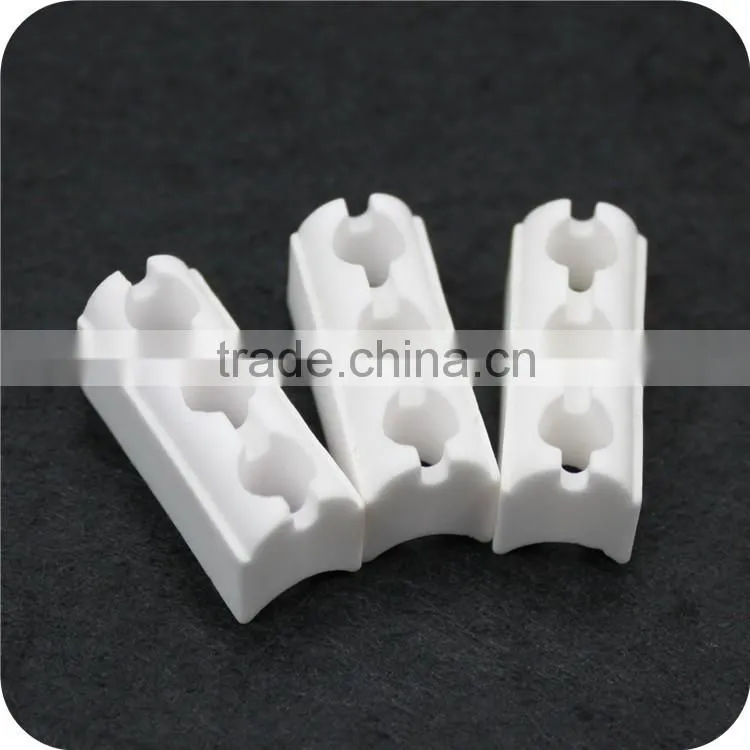

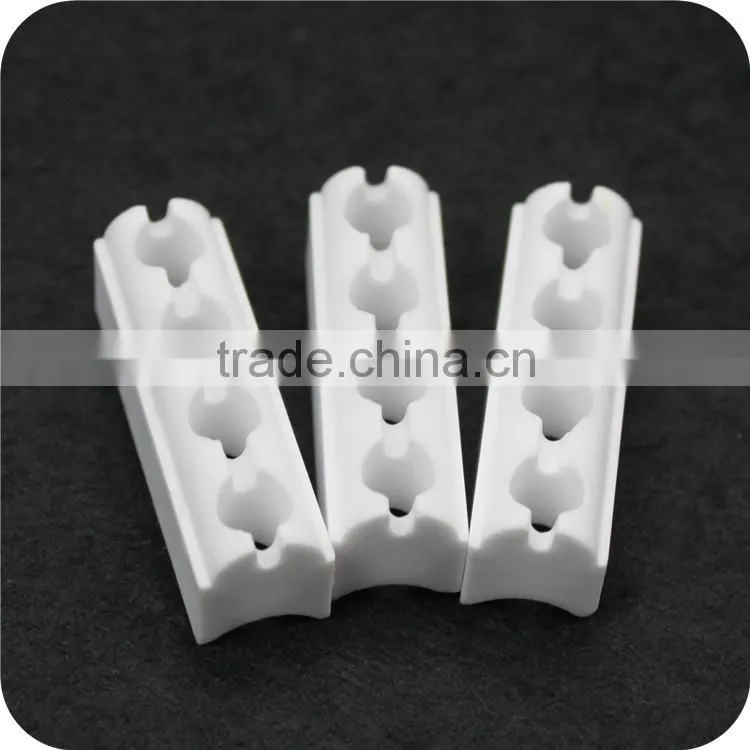

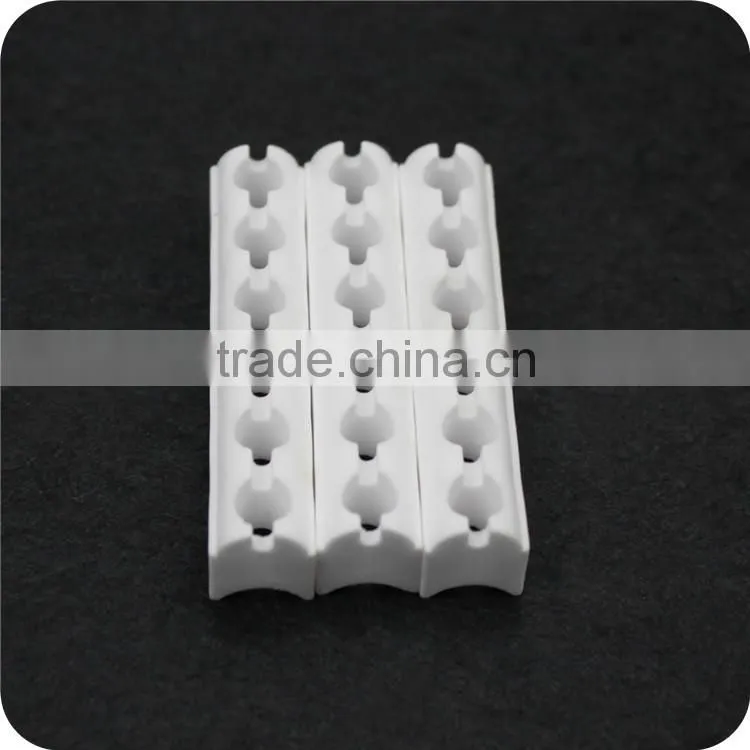

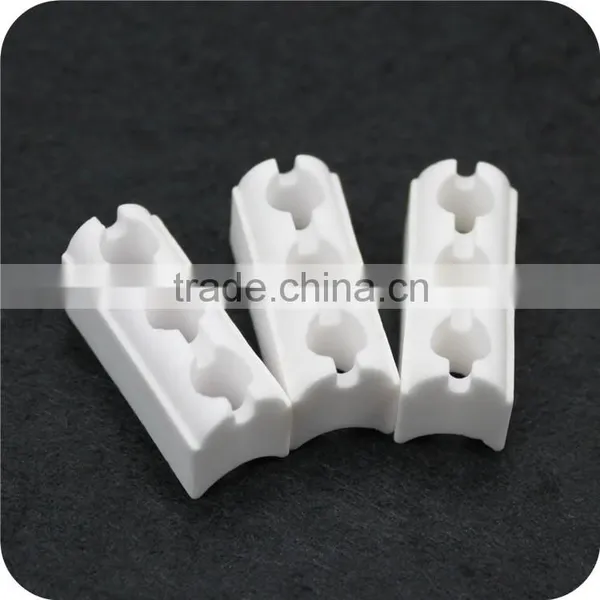

high heat resistance insulating 95% alumina ceramic 1-8 holes ceramic band heating insulators
1. Material: Steatite ceramic
| Performance | |||||
| Item | Index | Unit | Steatite ceramic | 95 Al2O3 | 96 Al2O3 |
| Physical Characteristics | Bulk density | g/cm3 | 2.7 | 3.6 | 3.6 |
| Water absorption | % | 0 | 0 | 0 | |
| Mechanical Characteristics | Flexural strength | Mpa | 145 | 320 | 340 |
| Hardness Vickers | Gpa | 5.7 | 12.2 | 13.5 | |
| Elastic modulus | Gpa | 120 | 280 | 320 | |
| Poisson’s ratio | - | 0.21 | 0.22 | 0.23 | |
| Thermal Characteristics | Linear expansion coefficient | 20-5000C 10-6/0C | 7.9 | 7.1 | 7.2 |
| Thermal conductivity | w/(m.k) | 2.5 | 16 | 24 | |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | |
| Electrical Characteristics | Dielectric constant(1MHZ) | - | 6.2 | 9 | 9.4 |
| Dielectric loss angle | *10-4 | 18 | 15 | 5 | |
| Dielectric strength | *106V/m | 18 | 12 | 15 | |
2. Properties:
Higher density, higer surface finish and unifomity than heat press cast method, excellent thermal condictivity and heat transfer, resistance against thermal shock and mechanical abuse.
3. Application:
As ceramic parts of flexible pad and channel heaters at operations of pre and postweld heat treatment; Welding process, stress-relieving, pre-heating & post heating, ship-building, other resistance-heating environment.
4. About us:
Jiangsu Sailamike Precision Ceramic is a worldwide leader in the development and production of advanced insulating ceramics. We provide a wide selection of advanced ceramics including Alumina ceramic, Zirconia ceramic, cordierite, steatite ceramic and mullite, which improves and extends the performance of your product, process, or system. Whether you need high temperature stability, high hardness and wear resistance surfaces, improved stiffness to weight radiations, anti-corrosive barriers or low thermal expansion rates - we can deliver. We can offer significant performance and cost advantages to meet your needs.
Welcome you contact us for more information.
5. FAQ:
6. Contact us:
