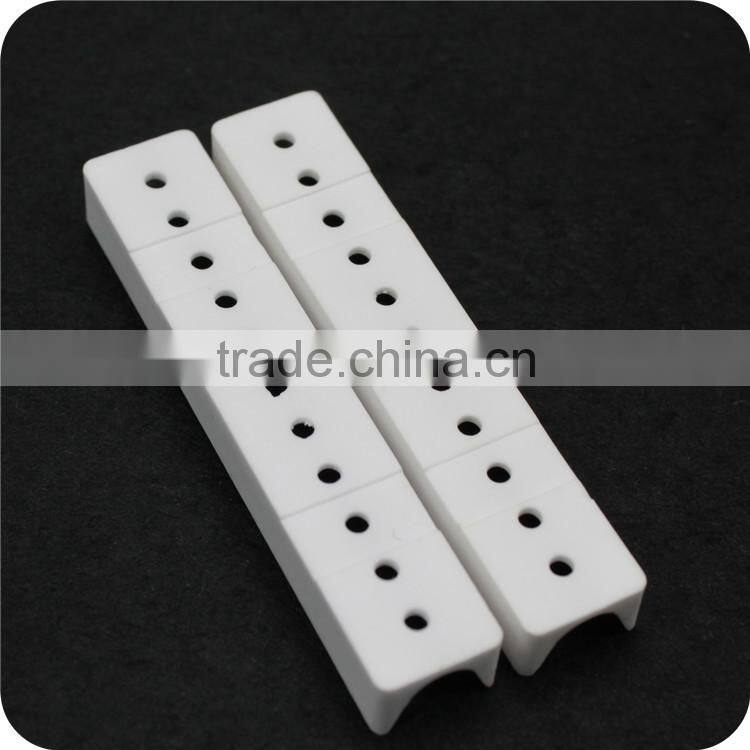

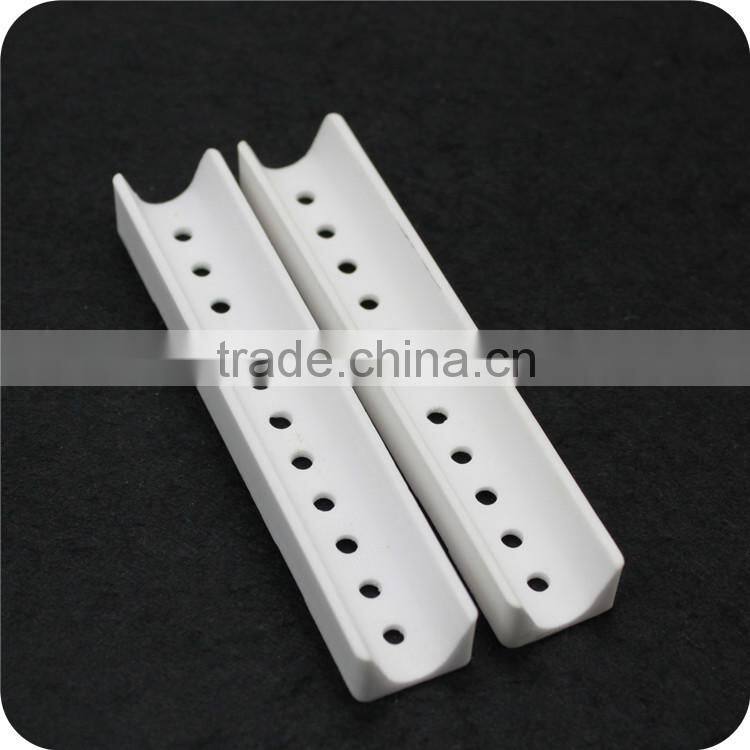

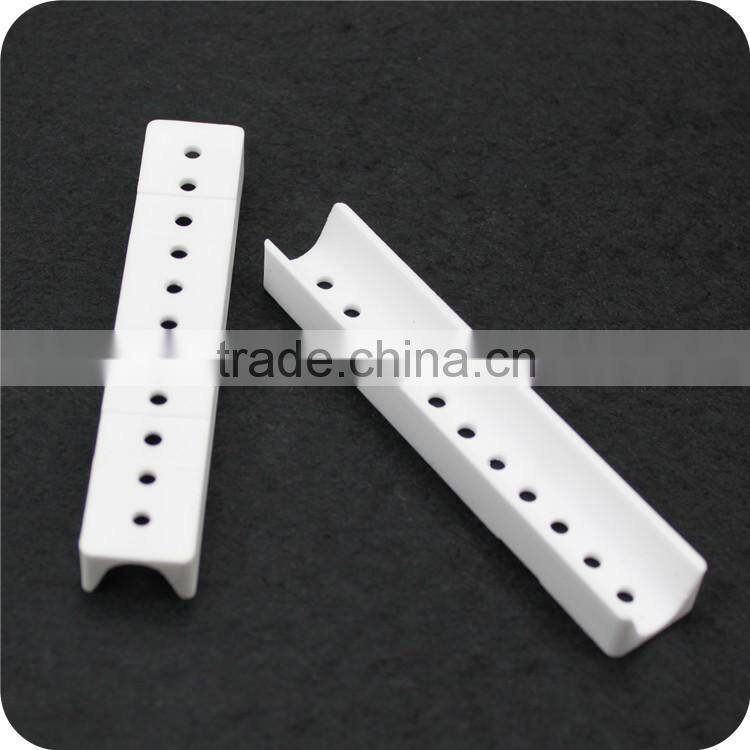

high temperature resistance 95 alo3 alumina ceramic stick ceramic plate
1. Material: 95% alumina ceramic
| Performance | |||||
| Item | Index | Unit | Steatite ceramic | 95 Al2O3 | 96 Al2O3 |
| Physical Characteristics | Bulk density | g/cm3 | 2.7 | 3.6 | 3.6 |
| Water absorption | % | 0 | 0 | 0 | |
|
Mechanical Characteristics |
Flexural strength | Mpa | 145 | 320 | 340 |
| Hardness Vickers | Gpa | 5.7 | 12.2 | 13.5 | |
| Elastic modulus | Gpa | 120 | 280 | 320 | |
| Poisson’s ratio | - | 0.21 | 0.22 | 0.23 | |
| Thermal Characteristics | Linear expansion coefficient | 20-5000C 10-6/0C | 7.9 | 7.1 | 7.2 |
| Thermal conductivity | w/(m.k) | 2.5 | 16 | 24 | |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | |
| Electrical Characteristics | Dielectric constant(1MHZ) | - | 6.2 | 9 | 9.4 |
| Dielectric loss angle | *10-4 | 18 | 15 | 5 | |
| Dielectric strength | *106V/m | 18 | 12 | 15 | |
2. Advantages:
1). High temperature resistance
2). High pressure resistance
3). Excellent insulation
3. Application:
1). Ceramic shaft for aquarium equipment filter pump.
2). Ceramic plunger for high pressure cleaner.
3). Wearlessness,resistant acid-base and high intensity ceramic assembly apply to petroleum ,chemical and chemical industry.
4). Wearlesness, corrosion resistance parts apply to precision machine.
5). They are also widely used in all kinds of ovens.
4. About us:
Jiangsu Sailamike Precision Ceramic is a worldwide leader in the development and production of advanced insulating ceramics. We provide a wide selection of advanced ceramics including Alumina ceramic, Zirconia ceramic, cordierite, steatite ceramic and mullite, which improves and extends the performance of your product, process, or system. Whether you need high temperature stability, high hardness and wear resistance surfaces, improved stiffness to weight radiations, anti-corrosive barriers or low thermal expansion rates - we can deliver. We can offer significant performance and cost advantages to meet your needs.
Welcome you contact us for more information.
5. FAQ:
6. Contact us:
