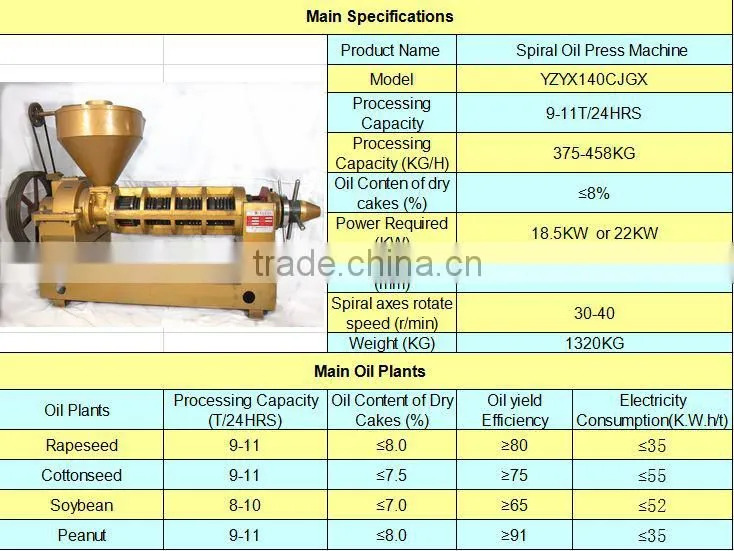

Help Center380v Oil Expeller YZYX140GX With Gear Box /low Noisy Oil Press Machine
Related Products
-
Cocoa Beans Companies Coffee Roaster Machine Oil Automatic Press MachineUS$ 2,700 - 3,400MOQ: 1 Set -
Website Brazil Soybean Oil Oil Small MillUS$ 5,600 - 6,400MOQ: 1 Piece
-
Oil Press Machine Buyer Soya Bean Prices Oil Sacha Inchi SeedsUS$ 4,000 - 4,300MOQ: 1 Piece
-
Small Manufacturing Machines Corn Seed Oil Cold Press Oil Seed MachineUS$ 2,600 - 3,200MOQ: 1 Piece
-
20ton/24hours Coconut Oil Press Machine Walnut Oil Presser for Oil FactoryUS$ 5,600 - 6,400MOQ: 1 Piece
1. More than 30 types of oil plants, such as rapeseed, cotton seed, soybean, shelled peanut, flax seed, sunflower seed and palm kernel, etc.
2. Used in oil factory, oil mill and private oil production workshop.
3. Good both for pressing raw oil material and roasted oil material.
1. Transferred by the triangle belt, the electromotor drives the spiral shaft.
2. The oil plants falls into the first section of the spirals through the feeding part and being carried toward the end of the machine along with the rotating squeeze spirals.
3. As the space between the squeeze spirals are getting smaller, the oil plants frictions with each other as well as the squeeze spirals and the squeeze loops. The pressure in the chest is becoming bigger.
4. During this process, the oil plants are smashed and big amount of heat is generated, the tissue cells are destroyed and the oil is separated from the oil plants and flow out from several outlets.
5. After extracted, the oil plants turns to be cake containing low oil and discharged in thin slices from the end of the machine. The whole oil and residue separation process is completed.
oil residue in cake %?
<6.0% is the best value!
Packing |
Fumigated solid wooden box |
Shipment |
By sea |
1. We supply spare parts all year around.
2. We supply technical solutions and helps for buyers at any time.
3. Have designers to help construct oil factory.
1. Since 1998, 17 years’ manufacturing experiences.
2. Covering an area of 50000 square meters, with more than 300 staffs, 10% are engineer and technician.
3. Comply I S O 9 0 0 1: 2 0 0 8 management system, in a leading position in China oil press industry.
4. We are an enterprise incorporating industry and export, provide overseas clients with prompt delivery and professional after-sale service.
FAQ
-
Delivery time.
---20~30 days after order confirmation. We need time to prepare machine according to exporting standard, wear-in, making wooden box, fumigation and suitable ship arrangement from forwarder. -
If I don't know how to operate this machine? how can I do?
---Our machine has been tested OK and fully assembled before shipping, customer just needs to make
2~4 hours wear-in and then can work. -
What's wear-in for new machine?
--- use 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1st hour, adjust oil cake thickness as 3mm.
2nd hour, adjust oil cake thickness as 2.5mm.
3rd hour, adjust oil cake thickness as mm. -
What are cold press and hot press?
---Cold press is pressing dry and raw seeds. Usually need to press 2 times to get maximum oil.
---Hot press is pressing roasted seeds. Usually only press 1 time to get maximum oil. peanuts roast
to 125~130 degree with 1~2% moisture. (We produce seeds roaster heated by economical fuel.
