1. Make oil from seeds and nuts. Oil is for cooking and residue cake is for animal feed or fertilizer.The spiral squeezing structure can achieve high oil output, thus the oil content of the residue cake is low.
2. High working efficiency! Oil press of spiral type just need process the oil plants by one time to get the maximum oil.
3. Make high quality healthy oil.Physical squeezing craft maximally keeps the nutrients such as the protein, fatty acids and minerals, etc.No chemical substances left.
4. Costeffective!Long durability: all the parts are made of the most suitable material and treated with refined crafts, such as cemented quenching and tempering to increase the hardness, consequently the durability.Just need replace the wearing parts. The main machine can run for more than 10 years.
5.Our oil press strictly conforms to GB/T9793.1-19999 of the People’s Republic of China and has been ISO and BV certified.
6. The spare parts on the machine such as the squeeze loop, squeeze spiral and squeeze bar are designed to be dismountable. When they are out of service period, users only need to replace them and no need to displace the whole machine.
Press extraction efficiency (output)
| Oilseed* | Raw Oil Content % | Raw Protein Content | Oil Removal Efficiency% | Extruding Temperature ° F | Expelled Meal Oil Content % | Expelled Meal Protein Content % |
|---|---|---|---|---|---|---|
| Soybean | 18-22 | 36-40 | 65-70 | 300-320 | 5-8 | 42-46 |
| Cotton | 20-22 | 20-22 | 65-70 | 230-250 | 5-8 | 26-30 |
| Canola | 35-40 | 22-26 | 72-75 | 250-260 | 8-13 | 32-37 |
| Sunflower | 35-45 | 16-22 | 72-75 | 240-260 | 10-13 | 22-27 |
*All values used for oil and protein content are expressed in average ranges. Actual content varies due to variental differences and growing conditions. Operator management also influences the quality of the end product. Results when coupling press with Inst-Pro Extruder.
Forgged squeeze part, spare parts can pressing 500,000kgs for change
YZYX120 single oil press working video
/watch?v=rT48j2gFap0
YZYX120WZ oil press with filter working video
/watch?v=5iJmMY6F-sY
See more videos:
Seeds Roasting: /programs/view/BooEDmlM0AU/
Plate frame filter: /programs/view/Co2W-8sqEd4/
Copra oil expelling: /programs/view/MeipKW6HosM/
General instruction: /programs/view/JjNXj8Yxls4/
Home use oil press: /programs/view/3uAgLmN41hc/
Operation instruction: /programs/view/SYlstFHJjik/

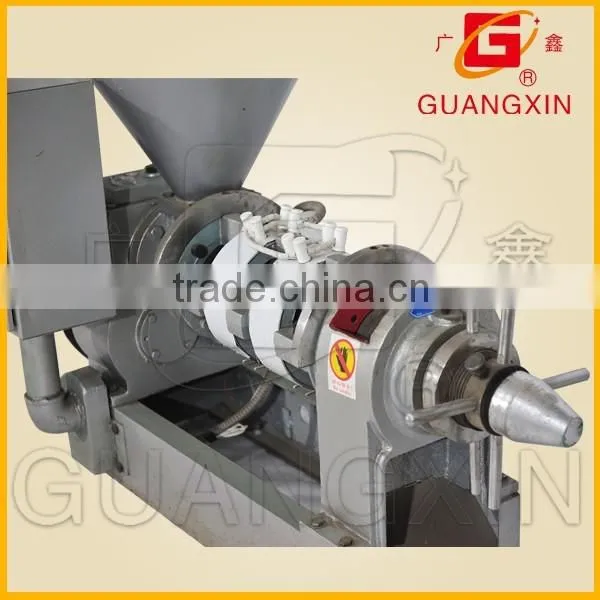

Forgged squeeze parts
big processing capacity capacity 416kgs/h Cold Press Oil Machine
1. More than 30 types of oil plants, such as rapeseed, cotton seed, soybean, shelled peanut, flax seed, sunflower seed and palm kernel, etc.
2. Used in oil factory, oil mill and private oil production workshop.
3. Good both for pressing raw oil material and roasted oil material.

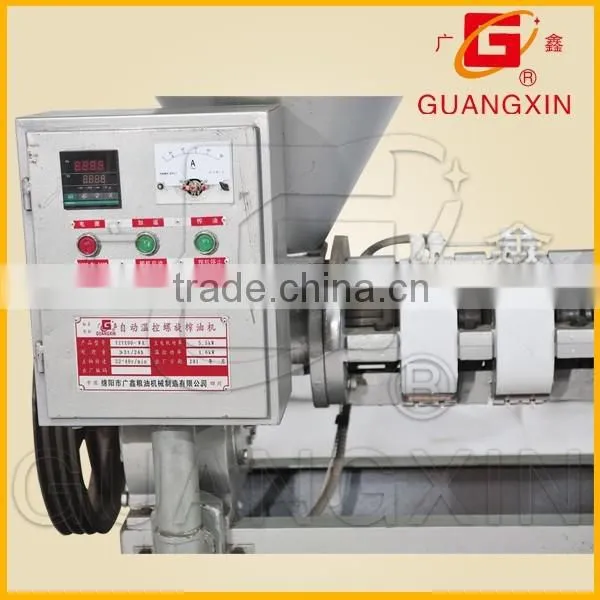

High output oil auto-warming-up 11T/24h Plant seed oil Press Machine
The function of autowarming up the press cage has replaced the traditional way by squeezing residue cake, which shortened the preparation work and reduced the energy consumption. When the squeezing is suspended, the temperature can be maintained at a certain degree by this system.
1. Transferred by the triangle belt, the electromotor drives the spiral shaft.
2. The oil plants falls into the first section of the spirals through the feeding part and being carried toward the end of the machine along with the rotating squeeze spirals.
3. As the space between the squeeze spirals are getting smaller, the oil plants frictions with each other as well as the squeeze spirals and the squeeze loops. The pressure in the chest is becoming bigger.
4. During this process, the oil plants are smashed and big amount of heat is generated, the tissue cells are destroyed and the oil is separated from the oil plants and flow out from several outlets.
5. After extracted, the oil plants turns to be cake containing low oil and discharged in thin slices from the end of the machine. The whole oil and residue separation process is completed.
oil residue in cake %?
1. We supply spare parts all year around.
2. We supply technical solutions and helps for buyers at any time.
3. Have designers to help construct oil factory.
FAQ
-
Delivery time.
---10~20days after order confirmation. We need time to prepare machine according to exporting standard, wear-in, making wooden box, fumigation and suitable ship arrangement from forwarder. -
If I don't know how to operate this machine? how can I do?
---Our machine has been tested OK and fully assembled before shipping, customer just needs to make
2~4 hours wear-in and then can work. -
What's wear-in for new machine?
--- use 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1st hour, adjust oil cake thickness as 3mm.
2nd hour, adjust oil cake thickness as 2.5mm ,3rd hour, adjust oil cake thickness as mm. -
What are cold press and hot press?
---Cold press is pressing dry and raw seeds. Usually need to press 2 times to get maximum oil.
---Hot press is pressing roasted seeds. Usually only press 1 time to get maximum oil. peanuts roast
to 125~130 degree with 1~2% moisture. (We produce seeds roaster heated by economical fuel.
...how to get good price? please contact ms jane liu 86 183 8161 6620
