Help CenterScrew Oil Press /oil Expeller Hot Sale in Thailand
Related Products
-
Factory Price Small Cold Press Oil Machine , Industrail Seed Screw Oil Press NEW ARRIVALUS$ 1,888 - 2,718MOQ: 1 Piece -
Mini Auto Warm up Spiral Groundnut Oil Press MachineUS$ 1,000 - 1,400MOQ: 1 Piece
-
Mini Cheap Spiral Peanut Oil Press Machine YZYX90US$ 700 - 1,100MOQ: 1 Piece
-
Economical Vegetable Seeds Oil Press Machine YZYX90-2US$ 700 - 1,100MOQ: 1 Piece
-
Cheap Manual Home Use Small Oil Press Machine YZYX70 Quality ChoiceUS$ 600 - 900MOQ: 1 Piece
The series automatic temperature controlled combined oil presses made by our company are suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.

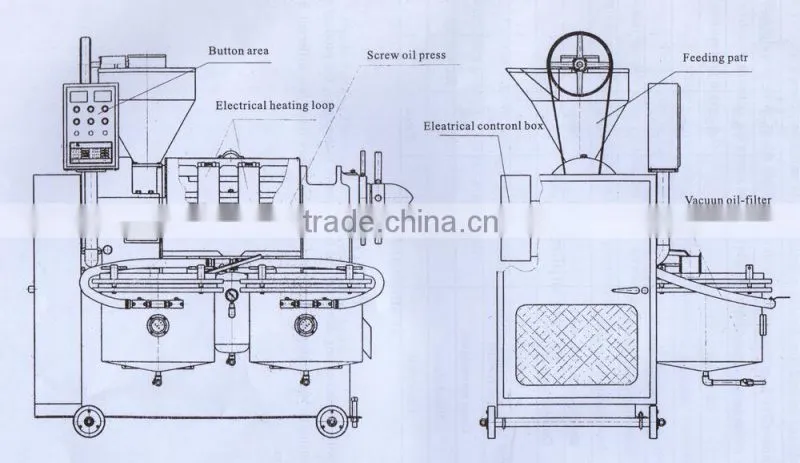

This model have three functions 1, heating 2,squeezing 3,filtering
1, Heat band used only for starting the press . provide a fast warm up to get the press started .
2,Pressing -it is good for large range oil plant , such as tea seed , peanut , sesame , palm kenel ect
3,Filtering- vacuum filtration machine it automatic filtering the oil and get the clean and edible oil .
One set of YZYX90WZ including below items
No |
Items |
Quantity (piece) |
No |
Items |
Quantity (piece) |
1 |
Oil press |
1piece |
4 |
Electric control box |
1piece |
2 |
Oil filter |
1piece |
5 |
11kw motor |
1piece |
3 |
Heat band |
1piece |
6 |
Triangle belt |
4piece |

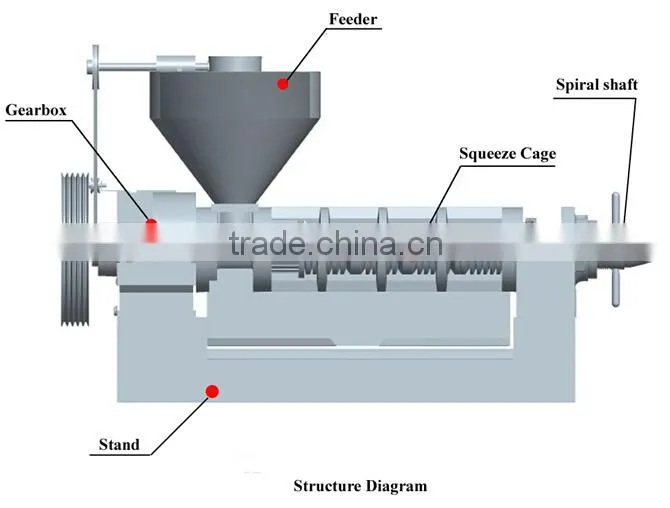

1,Gearbox :Cast iron bigger gearbox provide a strong foundation for operating smoothly and provide a long working life .
2, Feeder:carbon steel feeder
3, Squeeze cage: carbon steel lengthen squeeze cage (squeeze loop ,squeeze spiral can remove and changed after long time working)
under the combined effects of several forces , oil squeezed from the oil plants comes out from the squeeze bars and the grooves of the squeeze loops .
The residue is conveyed to the end of the press chest and sischarged in thin strips of oil cake from the space between the cake adjuster and the loop for cake out .
|
| |
1. More than 30 types of oil plants, such as rapeseed, cotton seed, soybean, shelled peanut, flax seed, sunflower seed and palm kernel, etc.
2. Used in oil factory, oil mill and private oil production workshop.
3. Good both for pressing raw oil material and roasted oil material.
1. We supply spare parts all year around.
2. We supply technical solutions and helps for buyers at any time.
3. Have designers to help construct oil factory.
1. Since 1998, 17 years’ manufacturing experiences.
2. Covering an area of 50000 square meters, with more than 300 staffs, 10% are engineer and technician.
3. Comply I S O 9 0 0 1: 2 0 0 8 management system, in a leading position in China oil press industry.
4. We are an enterprise incorporating industry and export, provide overseas clients with prompt delivery and professional after-sale service.
FAQ
1. Delivery time.
---20~30 days after order confirmation. We need time to prepare machine according to exporting standard, wear-in, making wooden box, fumigation and suitable ship arrangement from forwarder.
2. If I don't know how to operate this machine? how can I do?
---Our machine has been tested OK and fully assembled before shipping, customer just needs to make
2~4 hours wear-in and then can work.
3. What's wear-in for new machine?
--- use 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1st hour, adjust oil cake thickness as 3mm.
2nd hour, adjust oil cake thickness as 2.5mm.
3rd hour, adjust oil cake thickness as mm.
4. What are cold press and hot press?
---Cold press is pressing dry and raw seeds. Usually need to press 2 times to get maximum oil.
---Hot press is pressing roasted seeds. Usually only press 1 time to get maximum oil. peanuts roast to 125~130 degree with 1~2% moisture. (We produce seeds roaster heated by economical fuel.)
