Small Business Required Copra Oil Making Machine for Nigeria

Small Business Required Copra Oil Making Machine for Nigeria photo-1
Small Business Required Copra Oil Making Machine for Nigeria photo-2
Small Business Required Copra Oil Making Machine for Nigeria photo-3

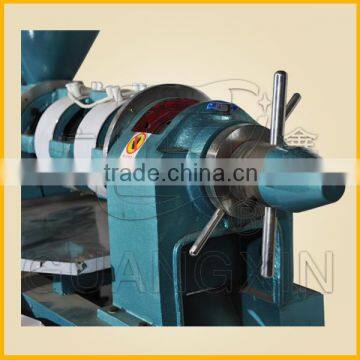

Small Business Required Copra Oil Making Machine for Nigeria photo-4

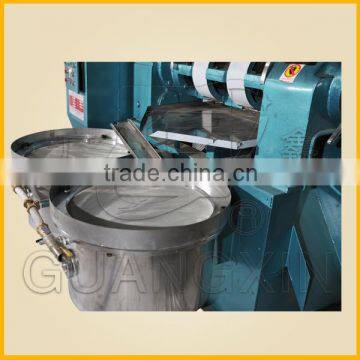

Small Business Required Copra Oil Making Machine for Nigeria photo-5

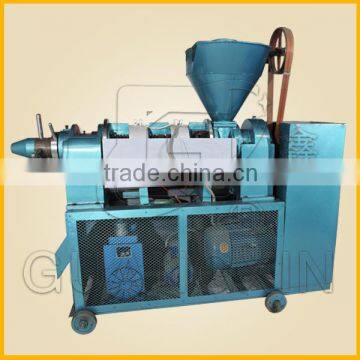

Small Business Required Copra Oil Making Machine for Nigeria photo-6
US$ 3,550 - 4,550 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, copra oil
Type:
Other, Cold & Hot Pressing Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai guangzhou ningbo shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Usage Other, copra oil
Type Other, Cold & Hot Pressing Machine
Automatic Grade Automatic
Production Capacity 270kgs /hrs, 6.5tons/day
Place of Origin Sichuan, China
Brand Name Guangxin
Model Number YZYX120WZ
Voltage 380V 50hz
Power(W) 11KW
Dimension(L*W*H) L2120xW1350xH1890(mm)
Weight 560kgs
Certification ISO9001:2008,SGS,TUV
After-sales Service Provided No overseas service provided

small business required copra oil making machine for Nigeria



1.  Transferred by the triangle belt, the electromotor drives the spiral shaft.



2.  The oil plants falls into the first section of the spirals through the feeding part and being carried toward the end of the machine along with the rotating squeeze spirals.



3.  As the space between the squeeze spirals are getting smaller, the oil plants frictions with each other as well as the squeeze spirals and the squeeze loops. The pressure in the chest is becoming bigger.



4.  During this process, the oil plants are smashed and big amount of heat is generated, the tissue cells are destroyed and the oil is separated from the oil plants and flow out from several outlets.



5.  After extracted, the oil plants turns to be cake and discharged from the end of the machine. The whole oil and residue separation process is completed.



6. The oil flow to the vacuum oil filter to be cleaned for cooking.

small business required copra oil making machine for Nigeria

small business required copra oil making machine for Nigeria







small business required copra oil making machine for Nigeria

 Product Name

copra oil making machine for Nigeria

Processing Capacity (t/24h)

6.5tons

Oil Content of dry cakes (%)

≤5.5 (best value)

Power Required (KW)

11KW

Measurement (mm)

L2120xW1350xH1890(mm)

Spiral axes rotate speed (r/min)

28-41

Weight (KG)

1080kgs

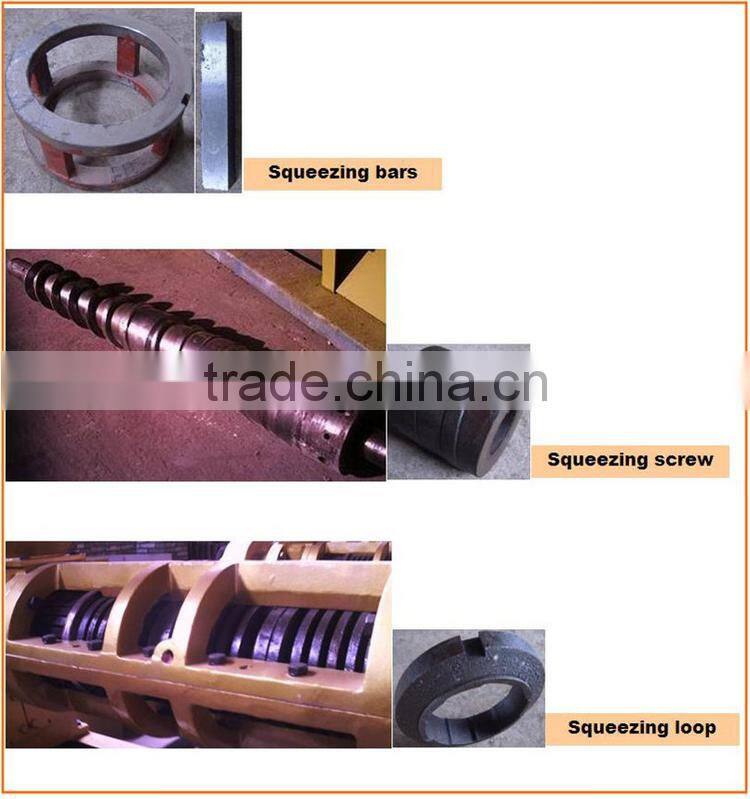

Forged squeezing parts,make it Durable  !small business required copra oil making machine for Nigeria





small business required copra oil making machine for Nigeria

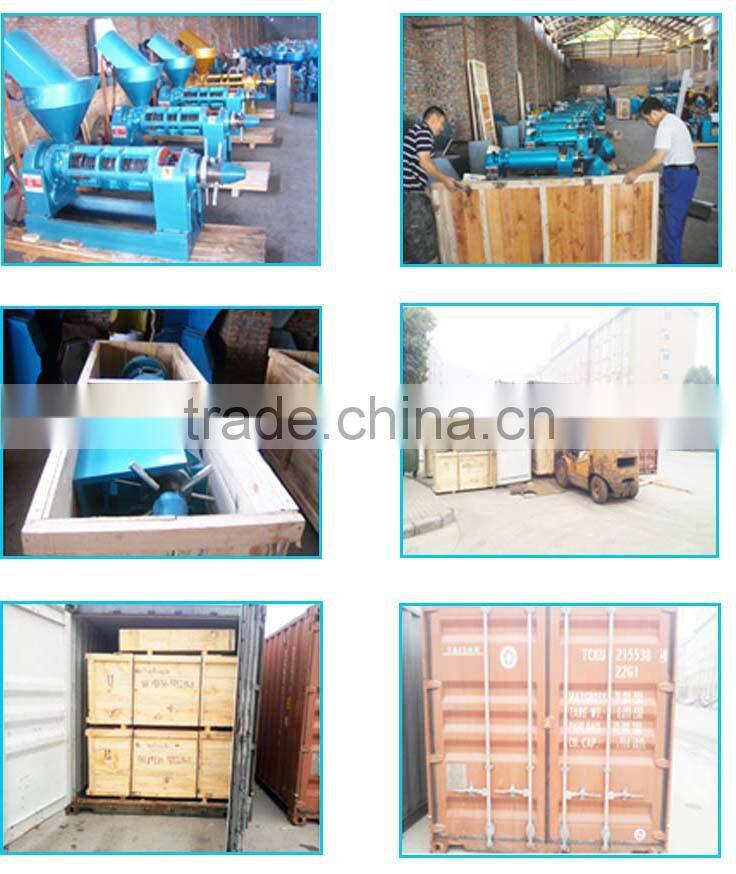

Packing

Fumigated solid wooden box

Shipment

By sea

small business required copra oil making machine for Nigeria



1. We supply spare parts all year around.

2. We supply technical solutions and helps for buyers at any time.

3. Have designers to help construct oil factory.





1. Since 1998, 17 years’ manufacturing experiences.



2. Covering an area of 50000 square meters, with more than 300 staffs, 10% are engineer and technician.



3. Comply I S O 9 0 0 1: 2 0 0 8 management system, in a leading position in China oil press industry.



4. We are an enterprise incorporating industry and export, provide overseas clients with prompt delivery and professional after-sale service.

 small business required copra oil making machine for Nigeria



FAQ



  1. Delivery time.
    ---20~30 days after order confirmation. We need time to prepare machine according to exporting standard, wear-in, making wooden box, fumigation and suitable ship arrangement from forwarder.
  2. If I don't know how to operate this machine? how can I do?
    ---Our machine has been tested OK and fully assembled before shipping, customer just needs to make
    2~4 hours wear-in and then can work.
  3. What's wear-in for new machine?
    --- use 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
    1st hour, adjust oil cake thickness as 3mm.
    2nd hour, adjust oil cake thickness as 2.5mm.
    3rd hour, adjust oil cake thickness as mm.
  4. What are cold press and hot press?
    ---Cold press is pressing dry and raw seeds. Usually need to press 2 times to get maximum oil.
    ---Hot press is pressing roasted seeds. Usually only press 1 time to get maximum oil. peanuts roast
    to 125~130 degree with 1~2% moisture. (We produce seeds roaster heated by economical fuel.
