ISO9001:2008/CE certificate China factory sales scissor lift elevator
1.Introduction of self-propelled scissor lift:
1)It is used for maintenance or aerial work ,can also move a short distance
2)One person drive and another person operate on the platform
3)It can move upward and downward ,automatically ,be operated both on the platform or on ground
4)Two sources of power :storage battery and Diesel engine
2.Applications of self-propelled scissor lift
Self-propelled scissor lift is widely used for aerial installation, maintenance, clean at the
construction sites, workshops, warehouse, station, hotel, airport, wharf, gas station andstadium etc.Custom-made according to the requirement
3.Type list of self-propelled scissor lift
Type |
HTJZ-06D |
HTJZ-08D |
working height (m) |
7.88 |
9.69 |
Platform height maximum (m) |
6.2 |
7.99 |
Load capacity kg mm |
320 |
230 |
Length (m) |
2.485 |
2.485 |
Width (m) |
0.82 |
0.82 |
Height-stowed (m) |
2.16 |
2.285 |
folding guardrail height |
1.71 |
1.835 |
Platform size minimum (m) |
1.06 |
1.185 |
Platform size (m) |
2.26×0.8 |
2.26×0.8 |
Length extension deck (m) |
0.9 |
0.9 |
Ground clearance -center( mm) |
100/20 |
100/20 |
Turning radius minimum (m) |
2.3 |
2.3 |
Speed (stowed)km/h |
3.2 |
3.2 |
Speed (raised)km/h |
0.8 |
0.8 |
Grade ability |
25% |
25% |
Tire m |
0.305×0.125 |
0.305×0.125 |
Weight kg |
2300 |
2450 |
Lifting motor v/kw |
24/3 |
24/3 |
Maintenance -free battery v/Ah |
4×6/230 |
4×6/230 |
Charger v/A |
24/20-30 |
24/20-30 |
Type |
HTJZ10D |
HTJZ12D |
Working height mm |
11500 mm |
13230mm |
Platform height maximum (mm) |
9800mm |
11530mm |
Platform height minimum ( mm) |
1310mm |
1435mm |
Length extension deck ( mm) |
900mm |
900mm |
Load capacity kg |
320kg |
230kg |
Turning radius minimum |
2300mm |
2300mm |
Speed (stowed /raised) |
3.2 |
3.2 |
0.8 |
0.8 |
|
Length |
2485mm |
2485mm |
Width |
1150mm |
1150mm |
Height |
2410mm |
2535mm |
Platform measurement |
2260*1130mm |
2260*1130mm |
Ground clearance -center |
20mm |
20mm |
Grade ability |
25% |
25% |
Tire |
φ381×127 mm |
φ381×127 mm |
Weight |
2650kg |
2800kg |
Lifting motor v/kw |
24/3 |
24/3 |
Maintenance -free battery v/Ah |
4×6/230 |
4×6/230 |
Charger v/A |
24/20-30 |
24/20-30 |

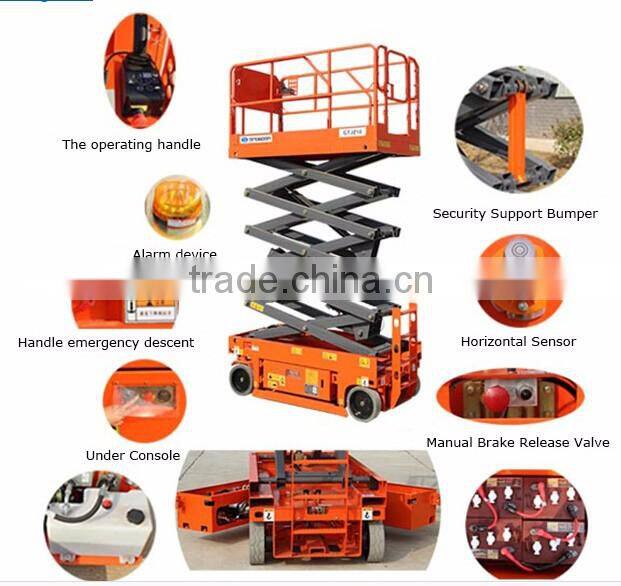

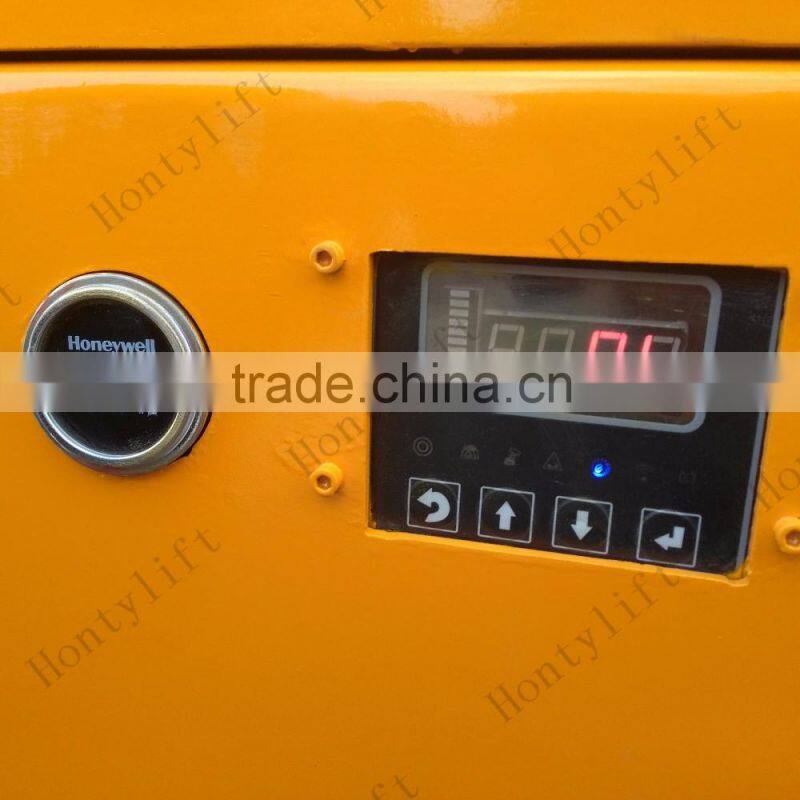

4.Detailed pictures of self-propelled scissor lift
5.Standard configuration of self-propelled scissor lift
* 2-wheel hydraulic motor drive
* 2-wheel steering
* High/low travel speed
* Extension deck
* Foldable guardrails
* Tilt sensor and alarm
* Descend alarm
* Safety overhaul support
* Timer
* Intelligent charger
* Swing-out tray
* Pothole protection device
* Emergency descend device
* Emergency release brake
* Anti-collision protection of platform
| Packaging Details: |
1) Internal packaging:be packed air bubble film inside first 2) External packaging:be packed in wooden cases |
|---|---|
| Delivery and shipping Details: |
1)Usually be shipped by maritime transport 2)if it is landlocked countries, generally |
1)- One year warranty for whole machines.
2)- Providing free quick-wear part.
3)- Low charge for continue maintenance when warranty is expired.
4)- Exclusive engineer support at any time.
5)- We can provide free training to end-users6)- 24hours online services
Why will you choose us?
1. Established early
Jinan Honty lift was founded in 2005, which is one of the main manufacturer of
hydraulic equipments
2. Mature technology
we took the development on the technology of hydraulic lifting table as well as elevator,
We have excellent equipment, advanced technology, perfect detection method and
skilled technicians
3. Good reputation
we are also given the honor of “Company with good credit” by the Chinese Government. and
now we are the main number of the manufacturer of Lifting, Transportation, Stocking and
Logistics of China as well
4. Many kinds of products
we have 12 series, more than 100 models products, main business is to design andmanufacture
non-standard product.
5. CE&ISO
Our products approved -CE&ISO,
6. Exported to many countries
Products are exported to Europe ,North America ,South America, Mid-east, Southeast Asia ,
Easten Asia,etc.and got good reputation.
7.OEM service
Our product are be approved by CE and ISO9001.and we can provide
1-year after-sale service apart from man-made damaged
This is our workshop, Products are manufactured here
If you are interested in our products,welcome to contact me at any time.
i will back to you within 12 hours
