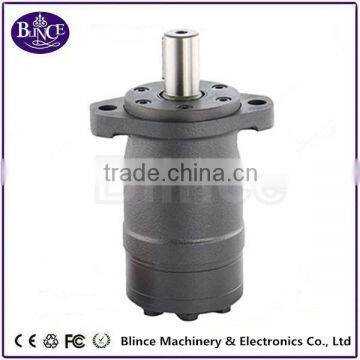

Blince Motor Shaft 25mm or 25.4mm Parallel Key Omp Hydraulic Motor Replace MS Hydraicul Motor EPM/EPM Orbital Motor

Blince motor shaft 25mm or 25.4mm parallel key omp hydraulic motor replace MS Hydraicul motor EPM/EPM orbital motor

Flange:
1)Flange2: 2-Ø 13.5 Rhomb-flange, pilot Ø 82.5× 8
2)Flange4: 4-Ø 13.5 Rhomb-flange, pilot Ø 82.5× 8
3)FlangeH4: 4-3/8-16 Square-flange, pilot Ø 44.4× 2.8
4)FlangeH5: 4-M10 Square-flange, pilot Ø 44.4× 2.8

Shaft:
1)ShaftA: Shaft Ø 25, parallel key 8X7X32
2)ShaftC: Shaft Ø 25.4, parallel key 6.35X6.35X31.75
3)ShaftE: Shaft Ø 25.4, splined tooth SEA 6B
4)ShaftR: Short shaft Ø 25.4, parallel key6.35X6.35X31.75
5)ShaftB: Shaft Ø 32, parallel key 10X8X45
6)ShaftF: Shaft Ø 31.75, splined tooth 14-DP12/24
7)ShaftFD: Long shaft Ø 31.75, splined tooth14-DP12/24
8)ShaftG: Shaft Ø 31.75, parallel key 7.96X7.96X31.75
9)ShaftT: Cone shaft Ø 28.56, parallel key B5X5X14
10)ShaftT3: Cone shaft Ø 31.75, parallel key 7.96X7.96X25.4

Drain port:
1)D: G1/2 Manifold Mount 4× M8, G1/4
2)M: M22× 1.5 Manifold Mount 4× M8, M14× 1.5
3)S: 7/8-14 O-ring manifold 4X5/16-18UNC, 7/16-20UNF
4)P: 1/2-14 NPTF Manifold 4X5/16-18UNC, 7/16-20UNF
5)R: PT(RC)1/2 Manifold 4xM8, PT(RC)1/4

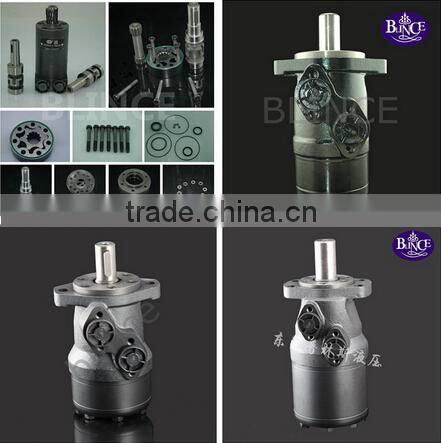

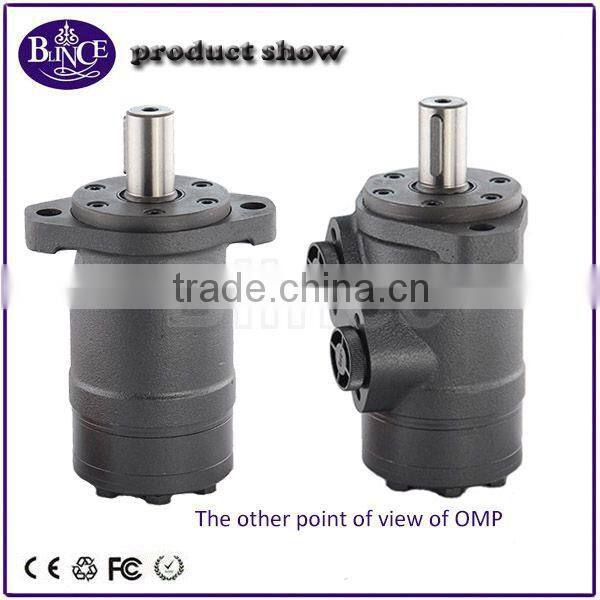

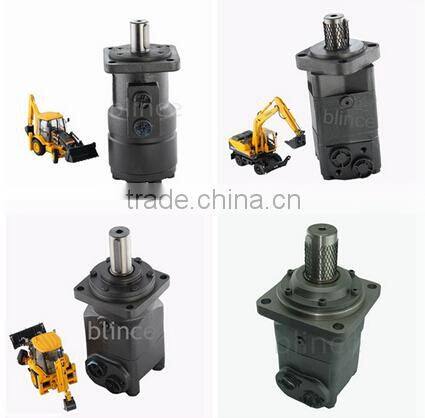

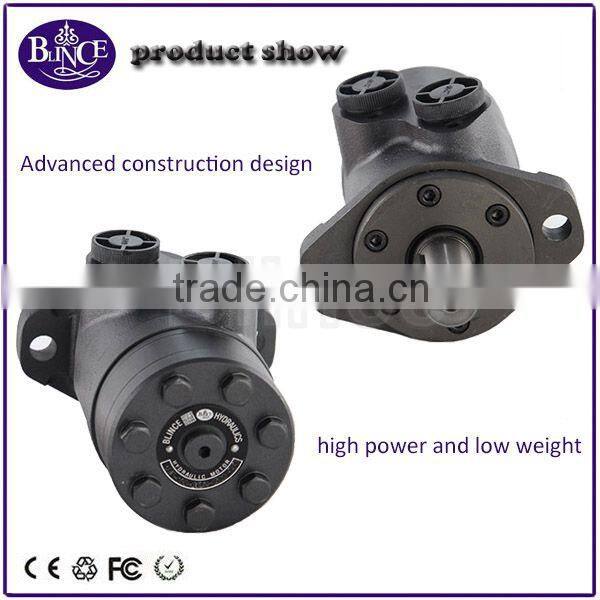

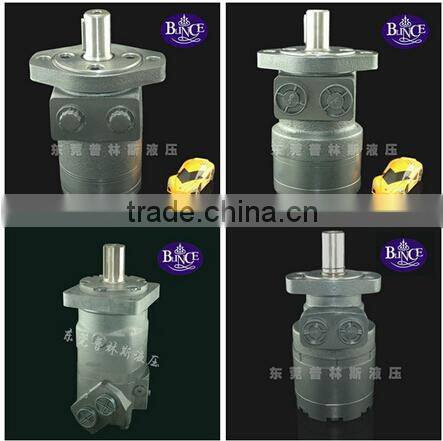

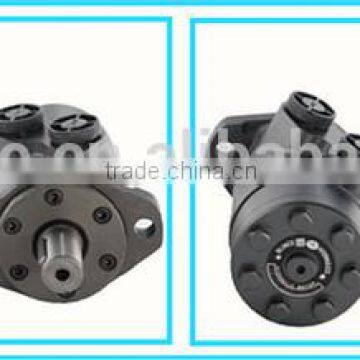

1.Blince OMP low speed high torque hydraulic orbital motors picture show:

2,Aplication:

 3.Blince OMP low speed high torque hydraulic orbital motors , Main technical parameters:
