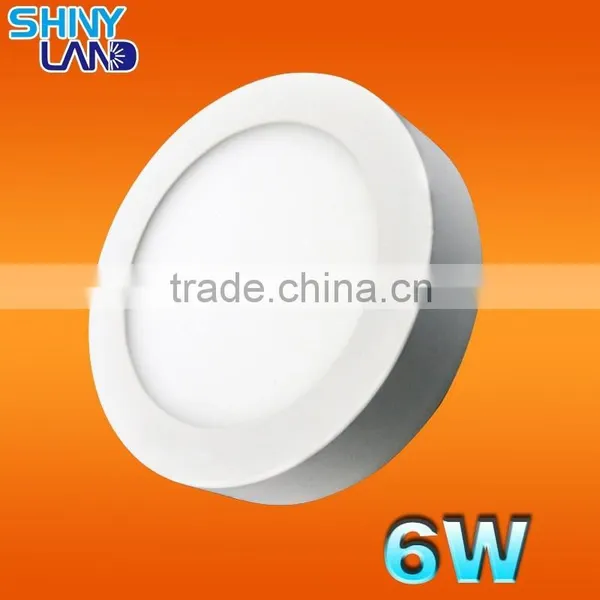

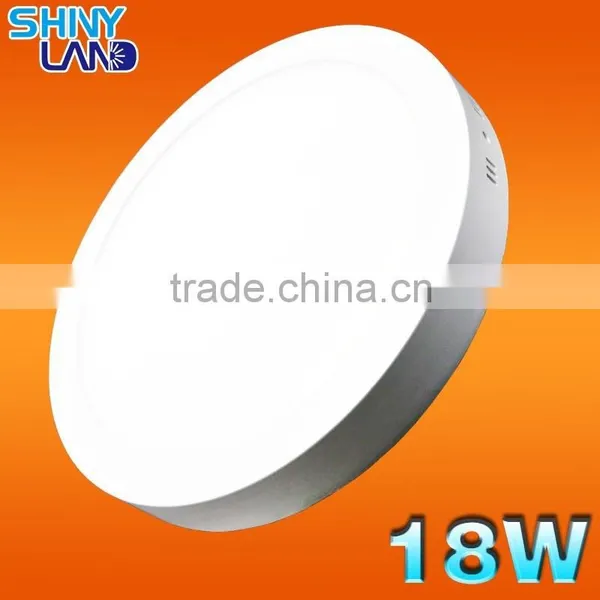

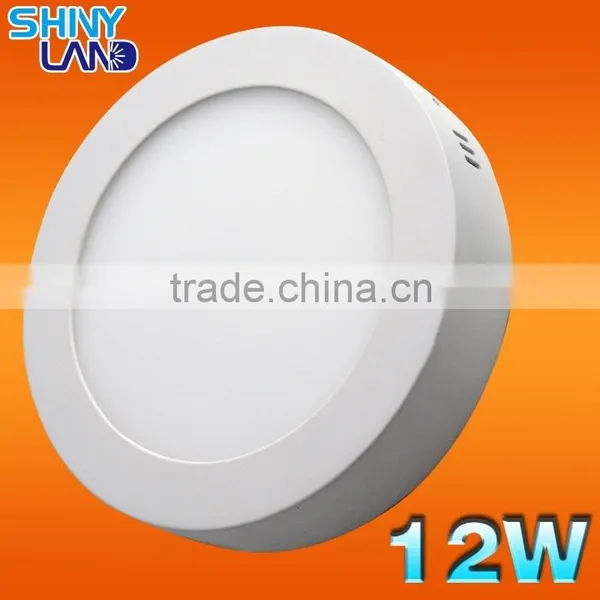

3W 6W 12W 18W led panel light fixtures surface mount led panel light 24W
| The Specification of LED Panel Light Surface Mounted | ||||||
| Item No. | SL-DG0303R | SL-DG0603R | SL-DG1203R | SL-DG1803R | SL-DG2403R | |
|
Powder Consumption |
3W | 6W | 12W | 18W | 24W | |
| Dimension | 86x45mm | 120x45mm | 170x45mm | 225x45mm | 300x45mm | |
| Shape | Round | |||||
| Lumous flux | 80lm/W | |||||
| LED Power Supply | External constant current IC driver | |||||
| AC Input | AC85~265V (AC375V available on request) | |||||
| DC Input | DC12~96V (DC12V, DC24V and other input available on request) | |||||
| LED Light Source | SMD 2835 0.2W/pc | |||||
| 0.2Wx15pcs | 0.2Wx30pcs | 0.2Wx60pcs | 0.2Wx90pcs | 0.2Wx120pcs | ||
|
Color Temperature |
2700~6500K | |||||
| Beam Angle | 120° | |||||
| Color Rendering Index | ≥Ra75 | |||||
| Working Life | ≥50000Hrs | |||||
| Working Temperature | -20℃~60℃ | |||||
| Housing | Aluminum | |||||
| Surface Treatment | White painted/ Spray Nickel | |||||
| IP Class | IP33 | |||||
| Warranty | LED Chip | 2 Years | ||||
| Driver | 2 Years | |||||
| Housing | 5 Years | |||||
| Brand of Products | SHINYLAND & Customized | |||||
| Certificate | CE, RoHS | |||||
| Payment Terms | By T/T , Western Union , L/C etc. | |||||

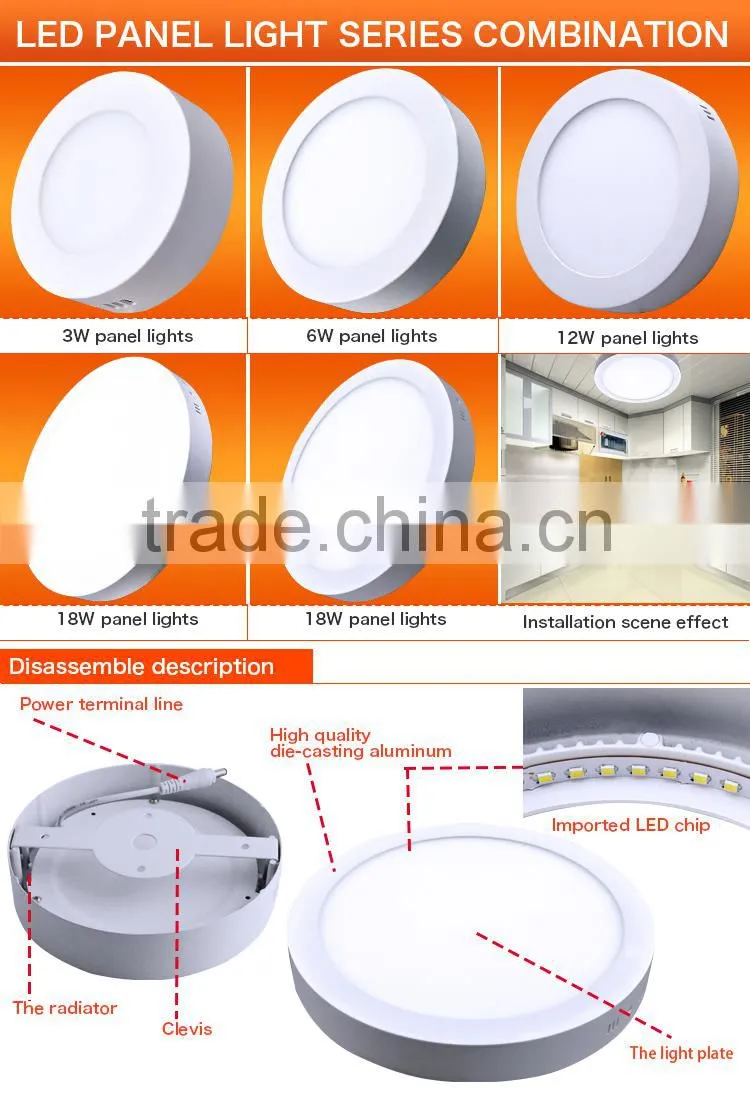

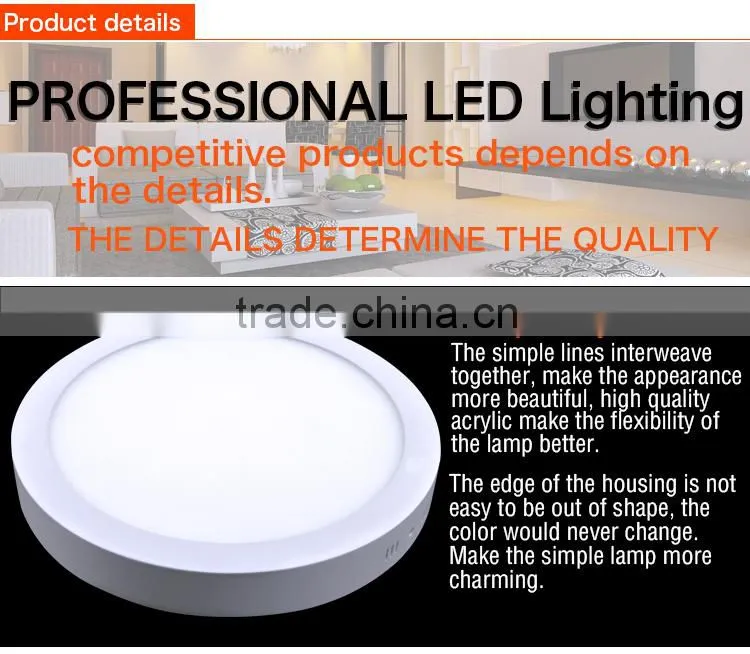

| LED Panel Light Features: |
1. Unique classic heat dissipation fins design, precision aluminum die casting technology, good heat dissipation structure ,as well beautifuland generous.

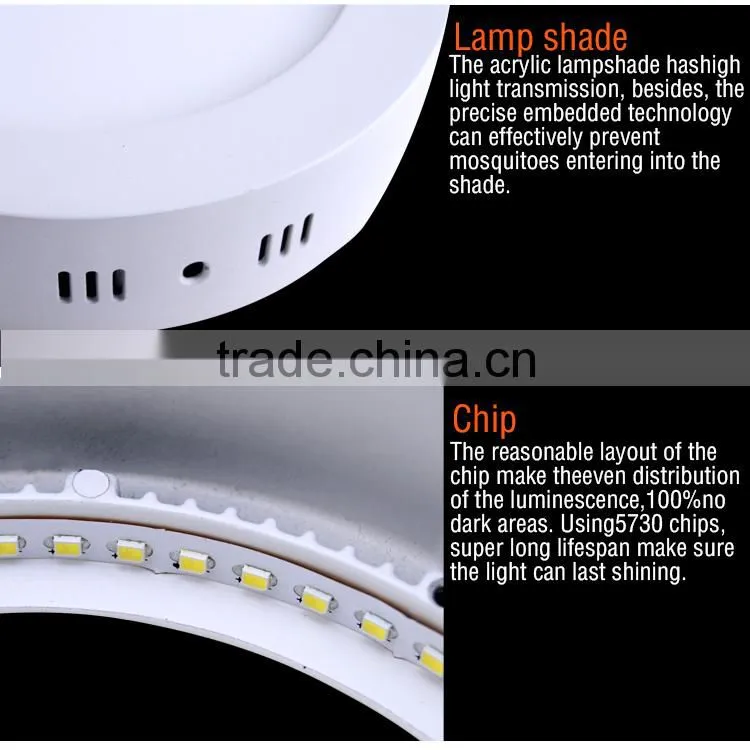

2. USE unique high brightness SMD light source, wide Angle optical fog diffuse film processing, toughened glass ring, effectively prevent glare design, perfect show deduce canister light demand for the use of different lighting places.

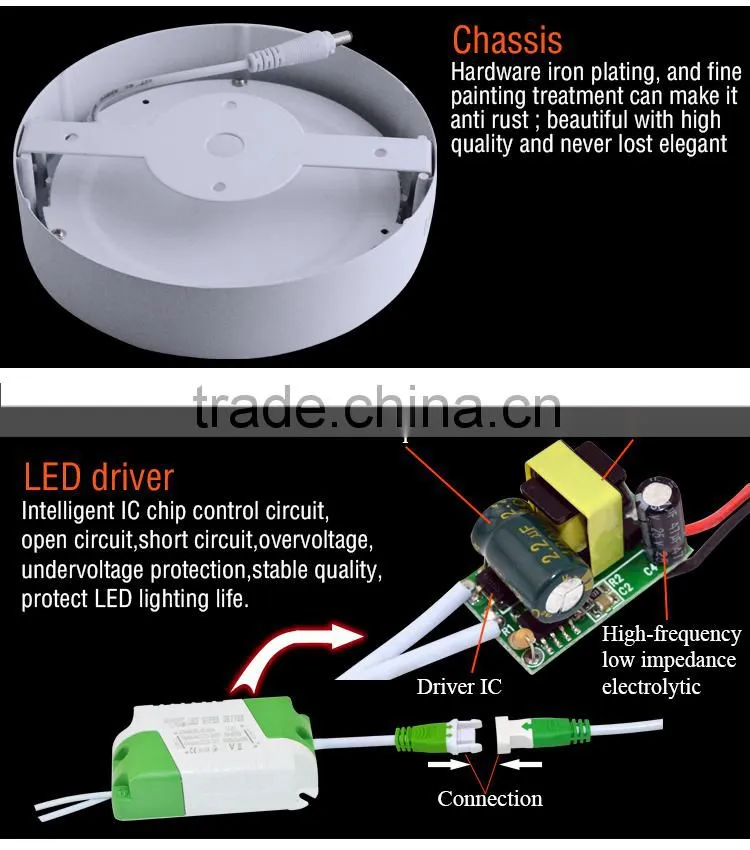

3. Specially design of heat dissipation light source with quality IC driver.

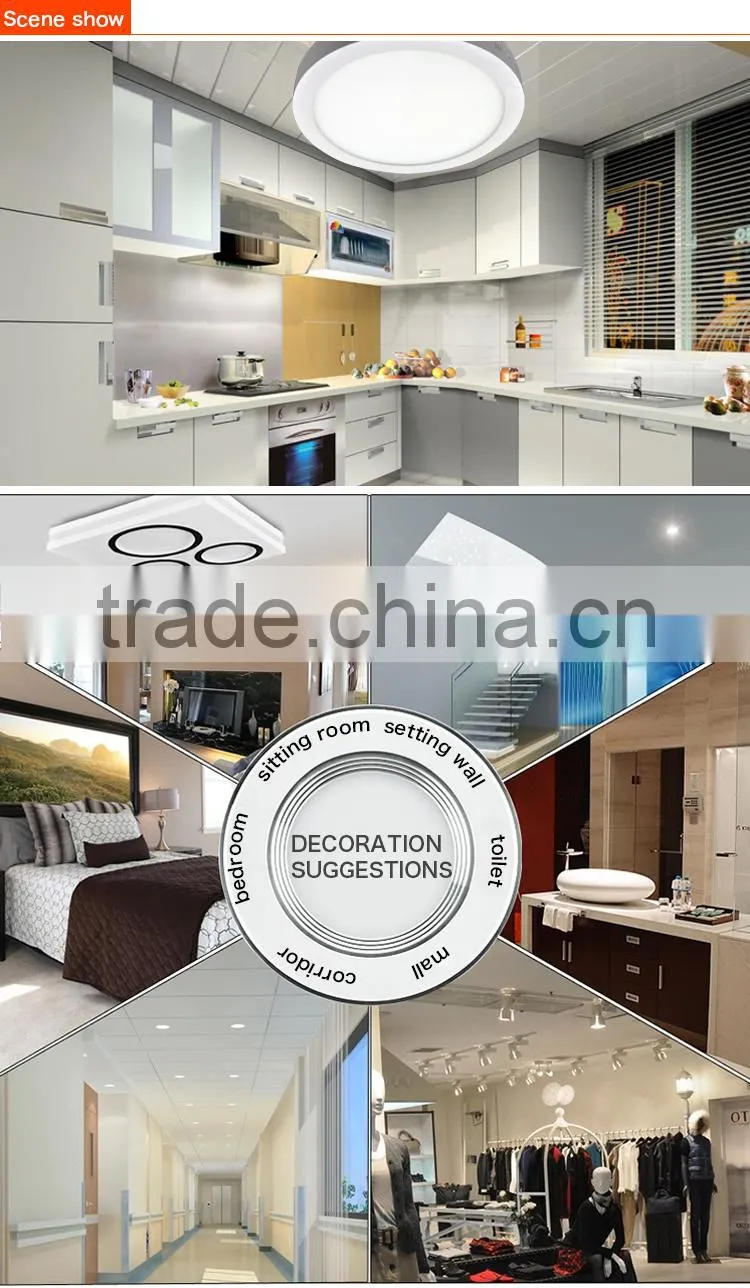

LED Panel light is widely used in large office, conference room, department stores, specialty stores, lab, airports and other places.
ShinyLand Products Packaging Process:
1. Check whether the appearance of the product problems and flaws. Production sector in question returned checks
2. Using the test tool, test products again
3. Cleaning products
4. According to customer requirements packaging content packaging.
5. Inspect the shipping carton intact.
6. Into finished goods warehouse, waiting for shipment.
7. Before shipment, sampling again.
ShinyLand Shipping:
1. Payment term: T/T 30% deposit after order confirmed, the balance after goods ready before shipping. or L/C, or Western Union for small amount.
2. Lead time: normally in 5~10 days after deposit received.
3. Sample policy: Samples are always availble for each model. Samples can be ready in 3~7 days once payment received.
4. Shipping port: Zhongshan, Shenzhen, Guangzhou / China
5. Discounts: We offer discount for big quantity.
|
