Specifications
1.Small Antenna size , easy to install2.Non-contact radar, no wear, no pollution
3.Almost free from corrosion, foam impact

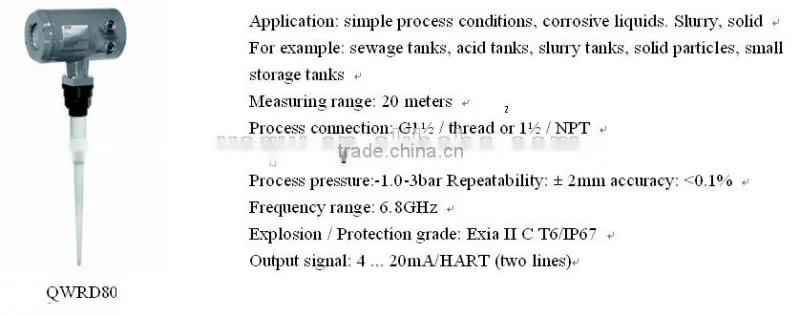

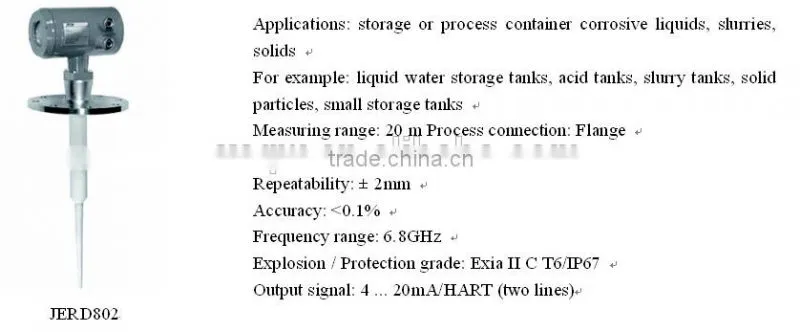

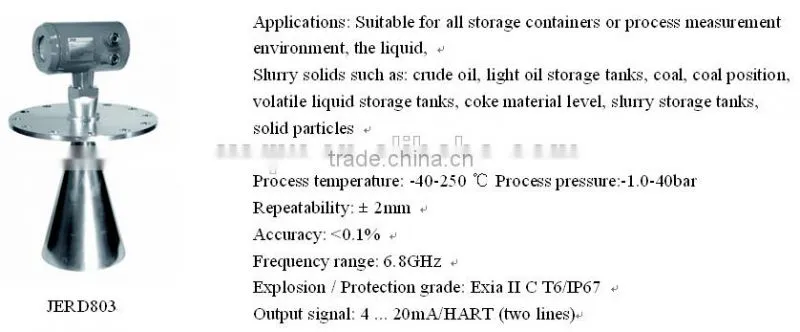

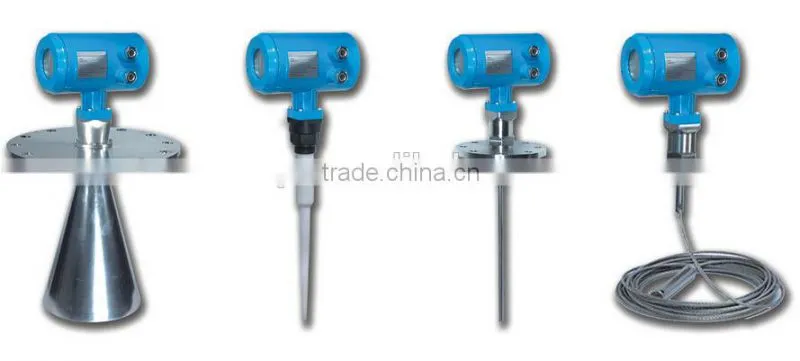

QWRD800 series sensor is an advanced radar level measurement instruments, measuring distances up to 35 meters and can be used for storage tanks, process vessels or intermediate buffer tank level measurement, output 4 ... 20mA analog signal.
1.2 Application
The use of advanced non-contact measurement
The extremely stable manufacturing materials
level measurement of liquid and solid media
You can measure all the dielectric constant> 1.8 media
Measuring range 0 ... 20m (can be extended to 35 meters)
The two-wire, loop-powered technology, supply voltage and output signals transmitted via a two-core cable
4 ... 20mA output / HART (two-wire)
Resolution 1mm
affected by noise, steam, dust, vacuum and other conditions
against medium density, viscosity and temperature changes affect
Process pressures up to 40bar
Process temperature up to 250 °C
APPLICATION
Coal Plant, Power Plant
Petroleum and Chemical Industrial
Foodstuff Industrial
General Industrial Applications
CHARACTERS
Large measurement scale, precious accuracy
Non-touchable measurement, so it is suitable for more complex
working condition
The outstanding is measurement viscous liquid or applied in
big change occasion for temperature and pressure
Outputs an analog signal 4~20mA
PRODUCTS DESCRIPTION
Smart radar level meter, for its characters of non-touchable measurement, can precious measure the media of pollution and corrosion. Its stable and accurate apparent is also shown in complex measurement. Outputs an analog signal 4~20mA, can be controlled by remote. It is adopted an unique micro-wave technology,Echo-tech process applied for various industrial condition. The pulse working method can measure small dielectric constant media,and safely applied in metal and nonmetal vessels. It is not harmful for human body and environment.
