Home > Electrical & Electronics > Sensor > Pressure Sensor > Cheap Mini Piezoresistive Pressure Sensor

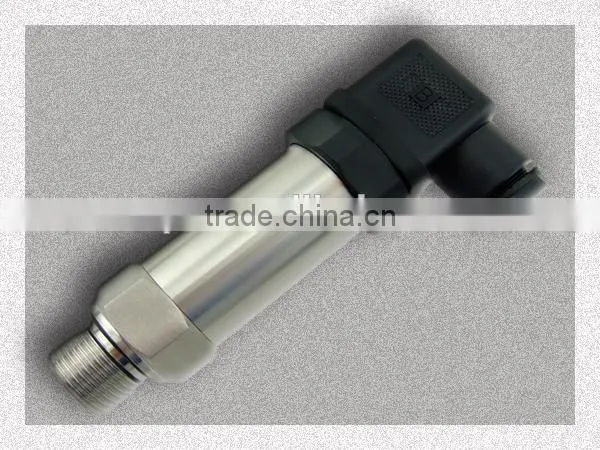

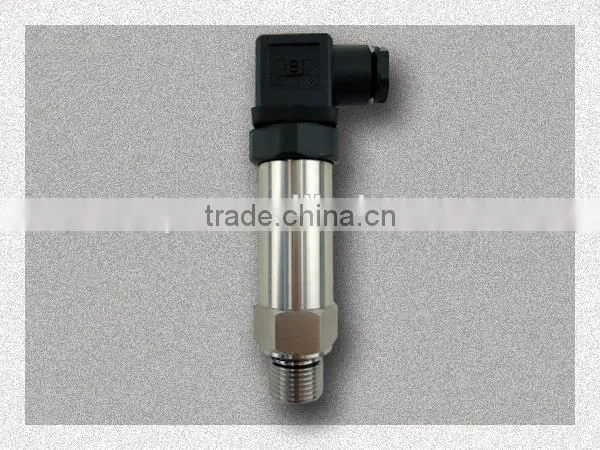

Cheap Mini Piezoresistive Pressure Sensor

Name: Cheap Mini Piezoresistive Pressure Sensor
Brand: QINWEI OR OEM
SKU: 107941477
Availability: InStock

Cheap Mini Piezoresistive Pressure Sensor thumbnail-1

Cheap Mini Piezoresistive Pressure Sensor photo-1

US$ 60 - 65 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Shaanxi, China

Brand Name:

QINWEI OR OEM

Model Number:

QWB100

Contact Supplier Request Quote Chat Now

Xian Qin Wei Instrument Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

TIANJING SHANGHAI SEAPOROT OR XI'AN AIRPORT

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shaanxi, China

Brand Name QINWEI OR OEM

Model Number QWB100

cheap mini piezoresistive pressure sensor

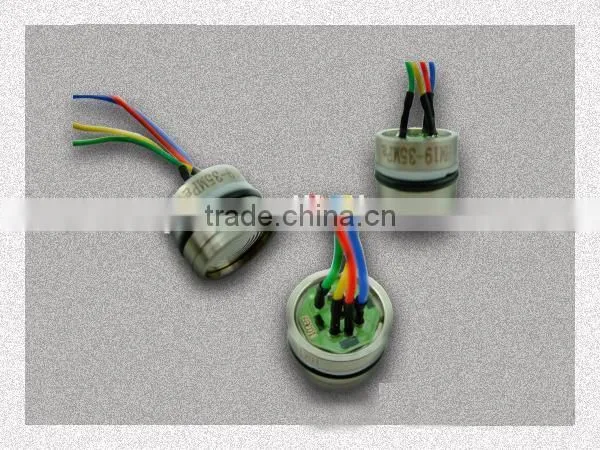

Piezoresistive Pressure Sensor QWB100 adopts piezoresistive flat membrane silicon oil-filled sensing element as the signal measuring element, with stainless steel diaphragm which can be compatible with gas or dilute liquid With a flush diaphragm process connection, so it is mainly applied to general applications such as food,pharmaceutical and chemical liquid pressure measurement.

Feature:

flush diaphragm pressure range: 0~35kPa...100MPa gas or dilute liquid compatible with 316LSS high reliability and stability

Applications:

process control system medical biological products food hygiene

Specifications:

Pressure range
Pressure range		35kPa, 70kPa, 100kPa,250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa....100Mpa
Overpressure		Range		Positive Overpressure		Negative Overpressure
		35kpa		70kpa		35kpa
		70kpa		150kpa		70kpa
		100kpa		200kpa		100kpa
		250kpa		500kpa		250kpa
		400kpa		800kpa		400kpa
		600kpa		1200kpa		600kpa
		1Mpa		2Mpa		1Mpa
		1.6Mpa		3.2Mpa		1Mpa
		2.5Mpa		5Mpa		1Mpa
Output signal
Zero output		±2mV
Span output		100mV(typical)
Specification
Accuracy(linearity, repeatability and hysteresis)	±0.25%F.S. (Typical)
Excitation	1.5mA (Typical) 5VDC 10VDC
Compensated temp.	0--60°C(typical)
Operating temp.	-40-125°C
Storage temp.	-40-125°C
Insulation resistance	>100Mohm/250VDC
Zero temp. coefficient	0.02%F.S.(≥100kPa) 0.03%F.S.(<100kPa)
Span temp. coefficient	0.02%F.S.(≥100kPa) 0.03%F.S.(<100kPa)
Bridge resistance	Min.		Max.		Unit
	2600		5500		ohm
Long term stability	≤0.3%F.S./year
Static pressure	10Mpa(Max.)
Vibration	20g (20--5000HZ)
Oil filling	Silicon oil (Typical) Olive oil available for sanitary application
O-ring	NBR, Viton
Housing and diaphragm	Stainless steel 316L
Wire	39×φ0.015, Silicon shielded, 200°C bearing 2 wire (typical) 3 wire (available)
Weight	250g(approx)
