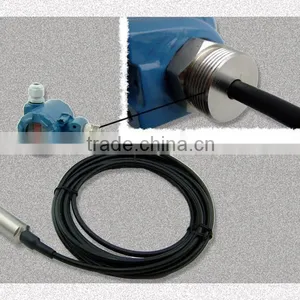

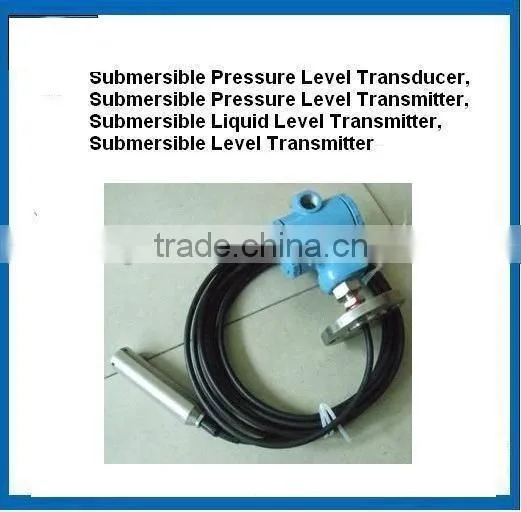

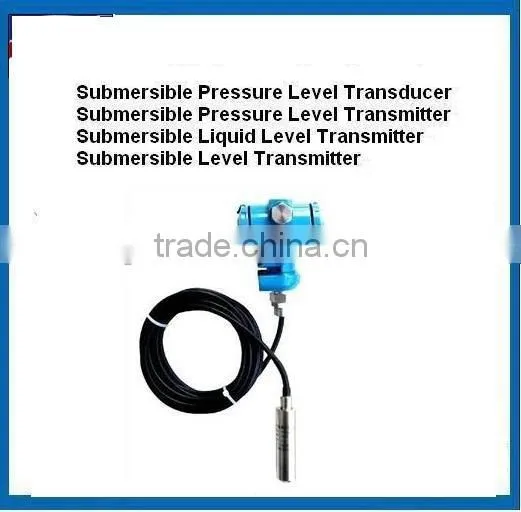

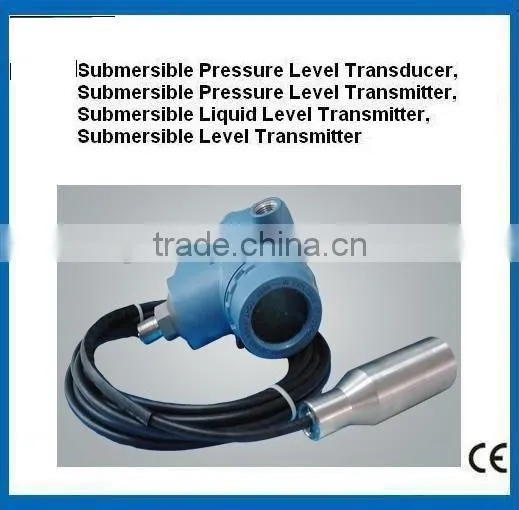

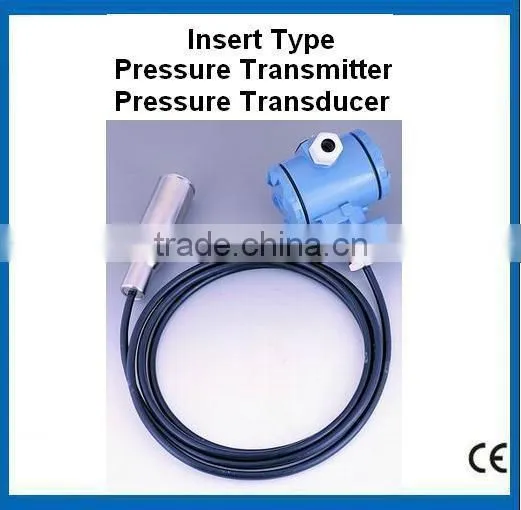

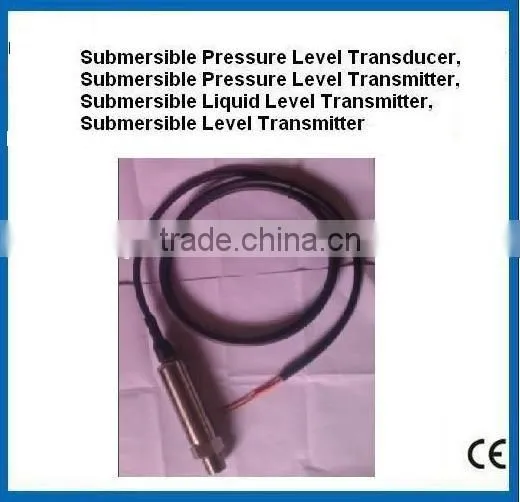

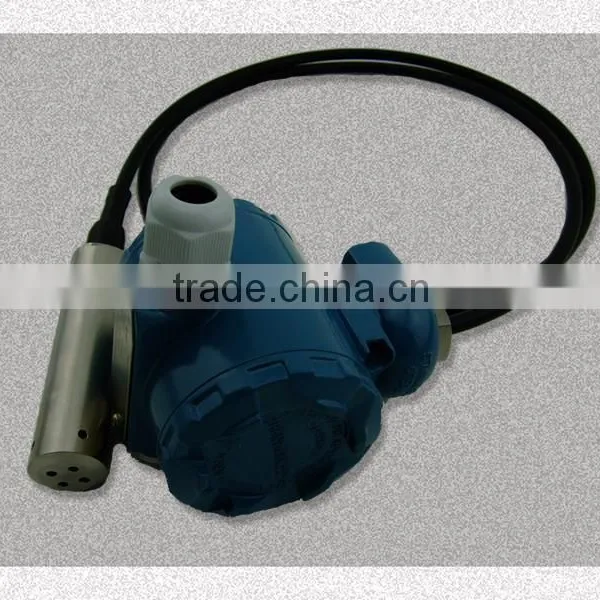

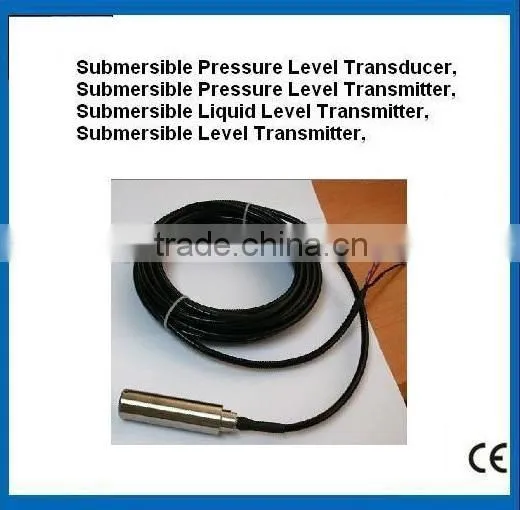

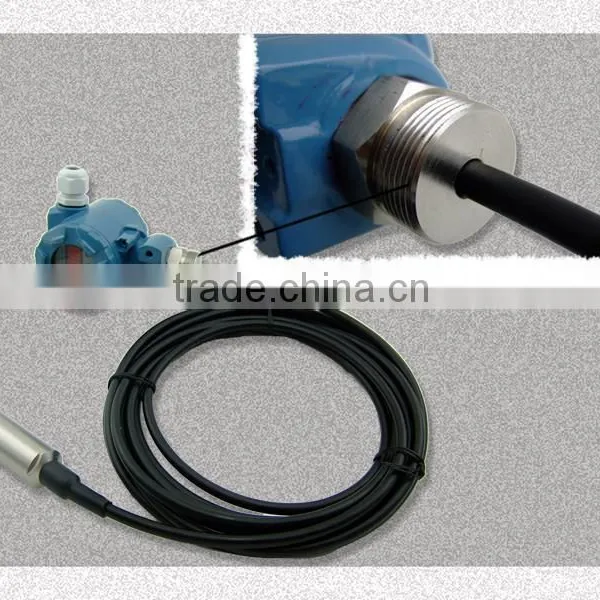

Sumbersible water level pressure transmitter with digita display and 4-20ma outputy
Features:
0.25%,0.50% accuracy
-40ºC to 100ºC operating temperature
100% stainless steel 316L isolation.
Wide variety of pressure ranges and electrical outputs
Low cost and compact package
stainless steel with rigid and robust construction.
The protection cap with a small hole
The exquisite sealing technology
a waterproof cable with vent hose
Specifications:
| pressure range | 0~1mH2O...200mH2O |
| overload pressure | 200%FS |
| output signal | 4~20mA, 0~5V, 0~10V, 1~5V |
| accuracy | 0.1%FS, 0.25%FS (standard), 0.5%FS |
| load resistance | RL = (U-12V)/0.02A (4~20mA current output) U-loop voltage (V) |
| long term stability | <0.2%FS/year |
| supply voltage | 12~36V |
compensated temperature range |
0~70°c |
| storage temperature range | -40~+100°c |
| temperature coefficient of zero | 0.25%FS/10°c |
| temperature coefficient of span | 0.25%FS/10°c |
| insulation resistance | 100MΩ@ 50VDC |
| electrical connection | 7.6mm shielded cable with vent hose |
|
material of wetted part and housing |
1Cr18Ni9Ti |
| material of pressure membrane | 316L or tantalum |
| sealing | Butyronitrile or fluoro-rubber sealing ring |
pressure sensors,
pressure transmitters,
temperature sensors,
temperature transmitters,
flow meters,
pressure gauges,
Level sensors,
calibration instruments etc.
They are widely used in following industries:aerospace, automobilepetroleum, chemical,metallurgy,
Paper-making, drugs manufacturing, electricpower,food, medicine, railroad and water conservationetc.
any inquiry, contact us freely.
