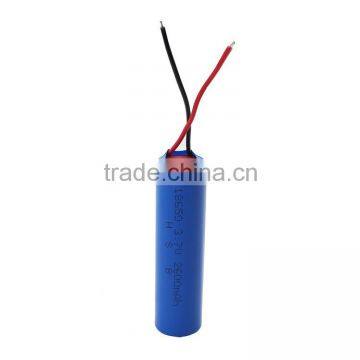

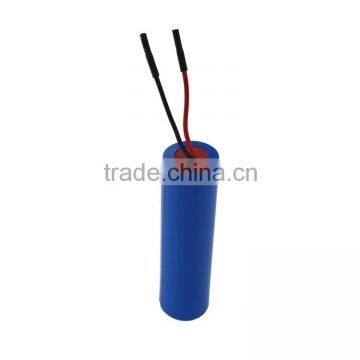

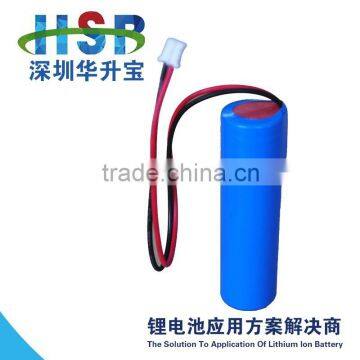

Help CenterCJ 3.7V/2600mAh 18650 li Ion Rechargeable Battery With PCM, Wire for Solar Lantern, Torch, Lighting
Related Products
-
CJ 3.7V/2600mAh 18650 li Ion Rechargeable Battery for Solar Lantern, Torch, LightingUS$ 1.28 - 1.35MOQ: 1000 Pieces -
CJ 18650 3.7V/2200mAh li Ion Rechargeable Battery for Lantern, Lighting, TorchUS$ 0.84 - 1.23MOQ: 1000 Pieces
-
3.7V/2200mAh 18650 li Ion Rechargeable BatteryNegotiableMOQ: 1000 Pieces
-
Hot 3.7V/2000mAh 18650 li Ion High Rate Rechargeable Battery for E Bike, UPS, Solar Street LightUS$ 1.06 - 1.12MOQ: 1000 Pieces
-
3.7V/2600mAh 18650 li Ion Rechargeable Battery for Power Banks, Backup, UPS, LightingUS$ 1.28 - 1.35MOQ: 1000 Pieces
3.7v 2600mah rechargeable lithium ion 18650 battery for Electric Tool
1.Specification:
NO. |
Item |
3.7v 2600mah rechargeable lithium ion 18650 battery for Electric Tool |
1 |
Nominal capacity |
2600mAh 0.5C Discharge |
Minimum capacity |
2550mAh 0.5C Discharge |
|
2 |
Nominal voltage |
3.7V |
3 |
Charge current |
Standard Charge 0.5C Rapid charge 1.0C |
4 |
Standard Charging method |
0.5C CC(constant current)charge to 4.2V,then CV(constant voltage 4.2V) charge till charge current decline to ≤0.01C |
5 |
Charging time |
Standard Charging Approx 5 hours Rapid charge Approx 2 .5hours |
6 |
Max.charge current |
Constant Current 1C Constant Voltage 4.2V 0.01C cut-off |
7 |
Max.discharge current |
Constant current 1.0C end voltage3.0V |
8 |
Standard Discharge Current |
Constant current 0.2 C end voltage3.0V |
9 |
Discharge cut-off voltage |
3.0V |
10 |
Charge cut-off Voltage |
4.20V |
11 |
Initial Impedance |
≤60momh |
12 |
Weight |
Approx 45g |
13 |
Operating temperature |
Charging 0~45 degrees Celsius Discharging -20~60 degrees Celsius |
14 |
Storage temperature |
0-25 degrees Celsius |
15 |
Storage Humidity |
≤75% RH |
16 |
Appearance |
Without scratch,distortion,contamination and leakage |
17 |
Standard environmental condition |
Temperature 23±5 degrees Celsius Humidity 45-75%RH Atmospheric Pressure 86-106 Kpa |
2. Part of Lithium ion Battery List:
| Model | Capacity | Diameter (mm) | Height (mm) | Normal Voltage (V) | Stardard Charge & Discharge | Rapid Charge & Discharge | Max. Discharge Current | Cut-off Charge Current | Cut-off Discharge Current | Weight (g) |
| ICR | 10220-130 | 10.28±0.2 | 22.7±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 4.5 |
| ICR | 10280-180 | 10.14±0.2 | 28.7±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 5.5 |
| ICR | 10440-340 | 10.28±0.2 | 44.0±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 10 |
| ICR | 10440J-340 | 10.28±0.2 | 45.0±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 10 |
| ICR | 10440P-300 | 10.28±0.2 | 44.0±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 9 |
| ICR | 14250-250 | 14.08±0.2 | 24.2±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 6.5 |
| ICR | 14250-280 | 14.08±0.2 | 24.2±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 9 |
| ICR | 14250J-280 | 14.08±0.2 | 24.5±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 9.5 |
| ICR | 14330-500 | 14.08±0.2 | 33.0±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 10.5 |
| ICR | 14430-650 | 14.08±0.2 | 42.7±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 17.5 |
| ICR | 14500-600 | 14.08±0.2 | 48.5±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 19.5 |
| ICR | 14500-750 | 14.08±0.2 | 48.5±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 20 |
| ICR | 14650-1000 | 14.08±0.2 | 64.5±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 26 |
| ICR | 14650-1050 | 14.08±0.2 | 64.5±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 26.5 |
| ICR | 14650-1100 | 14.08±0.2 | 64.5±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 26.5 |
| ICR | 16340J-700 | 16.48±0.2 | 34.4±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 18 |
| ICR | 16500-1200 | 16.48±0.2 | 48.8±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 26.5 |
| ICR | 17335J-700 | 16.78±0.2 | 34.4±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 17.5 |
| ICR | 18490-1300 | 18.18±0.2 | 48.7±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 38 |
| ICR | 18500-1400 | 18.18±0.2 | 48.7±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 32.5 |
| ICR | 18490J-1300 | 18.18±0.2 | 50.0±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 38 |
| ICR | 18650-2000 | 18.18±0.2 | 64.9±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 41.5 |
| ICR | 18650-2200 | 18.18±0.2 | 64.9±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 44.5 |
| ICR | 18650-2300 | 18.18±0.2 | 64.9±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 45 |
| ICR | 18650-2400 | 18.18±0.2 | 64.9±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 46 |
| ICR | 18650-2500 | 18.18±0.2 | 64.9±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 47 |
| ICR | 18650-2600 | 18.18±0.2 | 64.9±0.3 | 3.7 | 0.2 | 1.0 | 2C | 4.2 | 3.0 | 48.5 |
2.0Ah +0.5C/-0.5C Cycle Data
