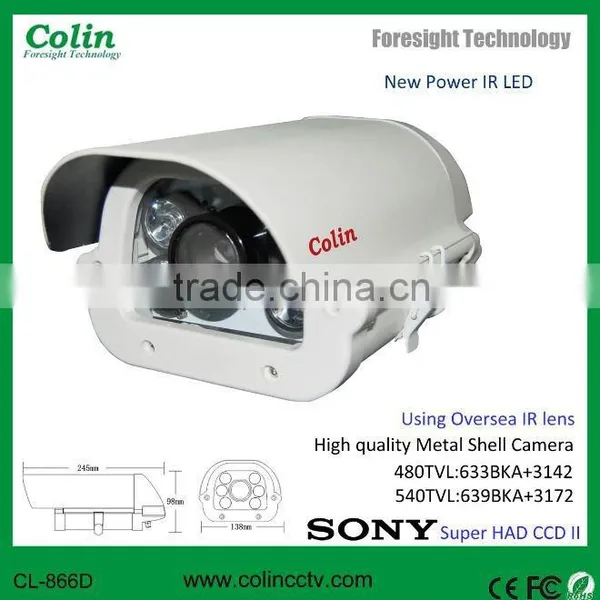

CCTV Camera/IR camera
Product Characteristics:
1.Super night vision technology ΙΙ(SNVΙΙ)
2.480TVL built-in 4pcs Ø25mm import super high power photographic led
3.Depart led, antifogging and anti-reflection
4.Waterproof and sunproof design for outdoor application
5.In the glimmer setting infrared night vision light color
Constant power and wide input voltage (C):
1. In the range of 12V-36V DC input voltage, this tech can keep the input power and output power constant.
2. Completely eradicate the damage of the unstable input voltage (such as the surge, etc.) to the camera.
3. This tech can make the Camera long-term stable work in the range of 12V-36V DC input voltage, which is the best solution for centralized power supply.
Technical Parameter:
| MODEL | CL-866SD/CW | CL-866KD/CW | CL-866AD/W | CL-866ED/CW |
| TV System | PAL/NTSC | |||
| Pixel | PAL:500(H)X582(V) | PAL:550(H)X582(V) | PAL:648(H)X488(V) | PAL:976(H)X582(V) |
| NTSC:510(H)X492(V) | NTSC:560(H)X492(V) | NTSC:648(H)X488(V) | NTSC:976(H)X494(V) | |
| Pickup device | 1/3"SONY Super HAD CCD II | 1/3"SONY Super HAD CCD II | 1/3"Pixel ADS CMOS | 1/3"Sony Exview CCD with effio-e DSP |
| Scanning area | 4.8mm(H)*3.6mm(V) | |||
| Horizontal resolution | 480TVL | 520TVL | 600TVL | 700TVL |
| Minimum illumination | 0 LUX(IR ON) | |||
| S/N ratio | >48dB | |||
| Gamma characteristic | 0.45 | |||
| Electronic shutter | PAL:1/50~1/100000sec | |||
| NTSC:1/60~1/100000sec | ||||
| Gain control | Auto | |||
| Back light compensation | Auto | |||
| White balance | Auto | |||
| Synchronous system | Internal synchronization | |||
| Operating temperature | –20~50°C | |||
| Protecion rate | IP66 | |||
| Lens mount | 3.6/6/8/12/16mm (Optional) | |||
| Power in | DC12V 2A | |||
| Video out | 1.0Vp-p/75Ω(BNC) | |||
| Dimensions(mm) | 245*138*98 | |||
| Weight(g) | 995 | |||
After-sale service:
1.Can be returned within one month
2.Can be changed within three months,
3.Free repair within two years

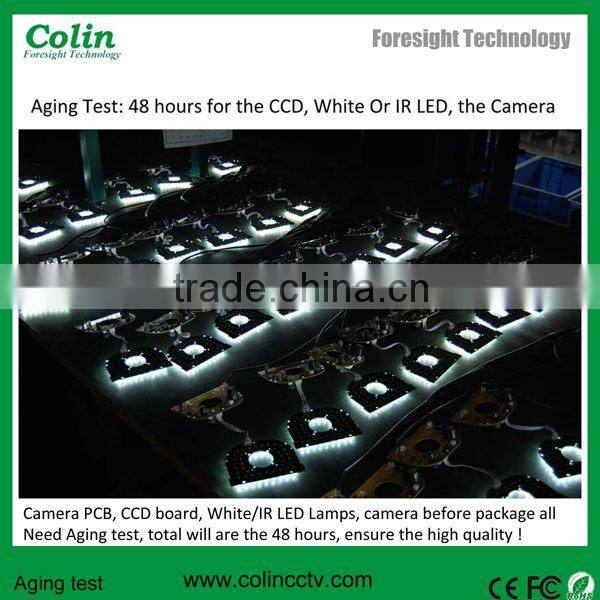

Aging test:
Factory and HK security photos:
Faster delivery and best after-sales services:
We guarantee punctual delivery, competitive price and prompt response.
Welcome to visit our factory and look forward to establishing long-term business relationships with you in the near future.
Don’t let you know our website is our fault, let you know but don’t buy our products is our fault, as well.
We believe that excellent co-operation from you and me!
