Factory Price 3.2V 60Ah LiFePO4 Battery for Electric Scooter, HEV/EV
US$ 0.8 - 25
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HSB
Model Number:
LFP60AHA
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Price 3.2V 100Ah LiFePO4 Battery for Electric Scooter, Electric BikesUS$ 0.8 - 25MOQ: 500 Pieces -
Factory Price 3.2V 100Ah LiFePO4 Battery for Electric Scooter, Hybrid Electric VehiclesUS$ 0.8 - 25MOQ: 500 Pieces
-
Factory Price 3.2V 100Ah LiFePO4 Battery for Electric Scooter, Electric VehiclesUS$ 0.8 - 25MOQ: 500 Pieces
-
Factory Price 3.2V 100Ah LiFePO4 Battery for Electric Scooter, Electricity SystemUS$ 0.8 - 25MOQ: 500 Pieces
-
Factory Price 3.2V 100Ah LiFePO4 Battery for Electric Scooter, Communication SystemUS$ 0.8 - 25MOQ: 500 Pieces
Place of Origin
Guangdong, China
Brand Name
HSB
Model Number
LFP60AHA
Type
Other, LiFePO4
Nominal Voltage
Other, 3.2V
Size
Other, 126*65*190mm
Nominal Capacity
60Ah

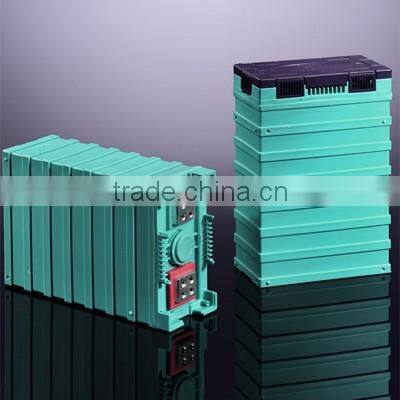

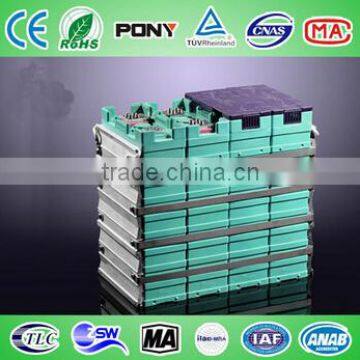

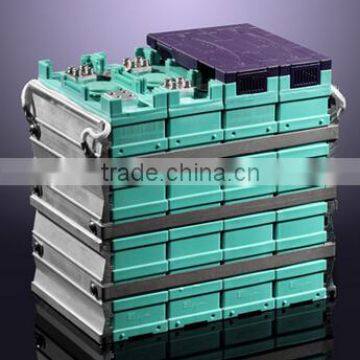

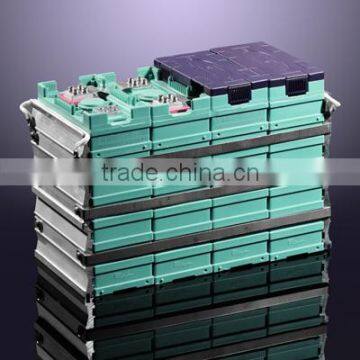

3.2V60Ah high discharge rate LiFePO4 battery for electric bikes, scooters, hybrid electric vehicles (HEVs) and electric vehicles (EVs), but also for electricity, communication, mines, solar and wind electricity generation applications, wind/solar energy storage system, and other multi-power systems in the military use.
1.Specifications
1.3.2V LiFePO4 battery
2.Real capacity: 60Ah
3.CE/ROHS/UL/MSDS/UN38.3 approved
4.High energy density, long lifecycle
| No. | Item. | LFP60AHA |
| 1 | Nominal Capacity | 60Ah |
| 2 | Nominal Voltage | 3.2V |
| 3 | Max. Charge Voltage | 3.65V |
| 4 | Discharge Cut-off Voltage | 2.5V |
| 5 | Standard Charge Current | 0.5C |
| 6 | Max. Charge Current | 1C |
| 7 | Standard Discharge Current | 0.5C |
| 8 | Max continuous discharge current | 3C |
| 9 | Pulse discharge current at 10s | 10C |
| 10 | Impedance | ≤ 0.7mΩ |
| 11 | Cycle life (0.5C) | 3000 cycles |
| 12 | Charge Method | CC/CV |

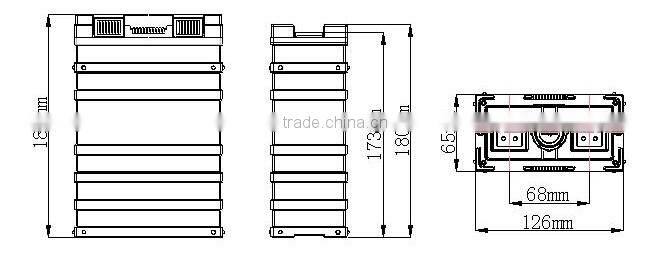

| 13 | Dimensions | 126*65*190mm |
| 14 | Weight (Approx.) | 2kg |
| 15 | Operating Temperature | 0℃~65℃ (charge) |
| -20℃~65℃ (discharge) | ||
| -20℃~65℃ (storage) |

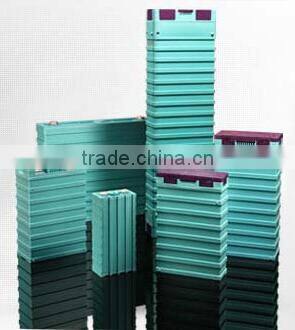

2. Part of Lithium ion Battery List
| Model | Capacity (Ah) | Dimensions (mm) | Nominal Voltage (V) | Stardard Charge & Discharge Current | Max. Charge Current | Max. Discharge Current | Pulse discharge current | Cut-off Charge Voltage(V) | Cut-off Discharge Voltage(V) | Impedance (mΩ) | Weight (kg) |
| LFP20AHA | 20 | 72*42*152 | 3.2 | 0.5C | 1C | 3C | 10C | 3.65 | 2.5 | 1.6 | 0.7 |
| LFP40AHA | 40 | 126*46*190 | 3.2 | 0.5C | 1C | 3C | 10C | 3.65 | 2.5 | 0.8 | 1.4 |
| LFP50AHA | 50 | 126*46*204 | 3.2 | 0.5C | 1C | 3C | 10C | 3.65 | 2.5 | 0.8 | 1.8 |
| LFP60AHA | 60 | 126*65*190 | 3.2 | 0.5C | 1C | 3C | 10C | 3.65 | 2.5 | 0.7 | 2 |
| LFP90AHA | 90 | 126*65*243 | 3.2 | 0.5C | 1C | 3C | 10C | 3.65 | 2.5 | 0.6 | 2.8 |
| LFP100AHA | 100 | 126*65*243 | 3.2 | 0.5C | 1C | 3C | 10C | 3.65 | 2.5 | 0.6 | 2.8 |
| LFP100AHB | 100 | 140*62*243 | 3.2 | 0.5C | 1C | 3C | 10C | 3.65 | 2.5 | 0.6 | 3 |
| LFP160AHA | 160 | 290*66*181 | 3.2 | 0.5C | 1C | 3C | 10C | 3.65 | 2.5 | 0.6 | 4.8 |
| LFP200AHA | 200 | 142*57*493 | 3.2 | 0.5C | 1C | 3C | 10C | 3.65 | 2.5 | 0.6 | 5.7 |
| LFP200AHB | 200 | 290*66*238 | 3.2 | 0.5C | 1C | 3C | 10C | 3.65 | 2.5 | 0.6 | 6.5 |
| LFP300AHA | 300 | 365*63*312 | 3.2 | 0.5C | 1C | 3C | 10C | 3.65 | 2.5 | 0.5 | 10.6 |
| LFP400AHA | 400 | 365*73*312 | 3.2 | 0.5C | 1C | 3C | 10C | 3.65 | 2.5 | 0.5 | 13.2 |
| LFP1220AHA | 20 | 178*75*165 | 3.2 | 0.5C | 1C | 3C | 10C | 3.65 | 2.5 | 10 | 3 |
| LFP1240AHA | 40 | 200*126*188 | 3.2 | 0.5C | 1C | 3C | 10C | 3.65 | 2.5 | 7.2 | 6.2 |
| LFP1260AHA | 60 | 276*126*188 | 3.2 | 0.5C | 1C | 3C | 10C | 3.65 | 2.5 | 6 | 8.6 |
| LFP12100AHA | 100 | 276*126*245 | 3.2 | 0.5C | 1C | 3C | 10C | 3.65 | 2.5 | 4 | 12 |
| LFP12160AHA | 160 | 288*290*181 | 3.2 | 0.5C | 1C | 3C | 10C | 3.65 | 2.5 | 3.2 | 21 |
| LFP12200AHA | 200 | 244*142*485 | 3.2 | 0.5C | 1C | 3C | 10C | 3.65 | 2.5 | 3.2 | 25 |
| LFP12200AHB | 200 | 288*190*237 | 3.2 | 0.5C | 1C | 3C | 10C | 3.65 | 2.5 | 3.2 | 28 |
| LFP12300AHA | 300 | 276*365*310 | 3.2 | 0.5C | 1C | 3C | 10C | 3.65 | 2.5 | 3.2 | 44 |
| LFP12400AHA | 400 | 316*365*320 | 3.2 | 0.5C | 1C | 3C | 10C | 3.65 | 2.5 | 3.2 | 55 |

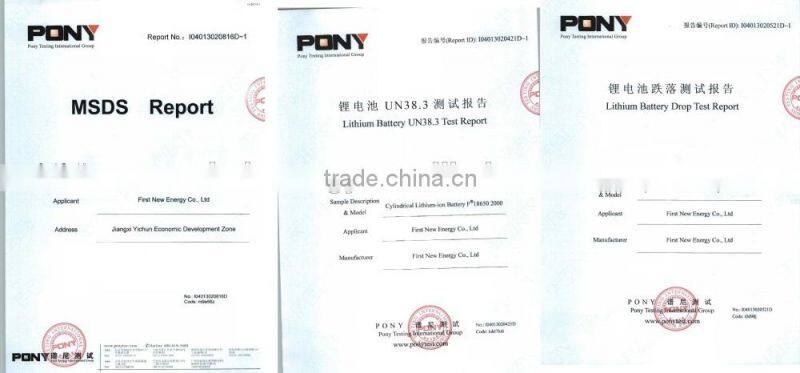

3. Certificates

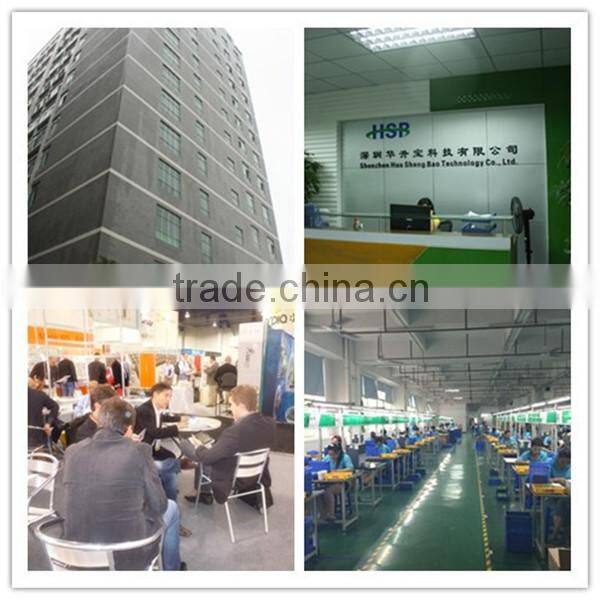

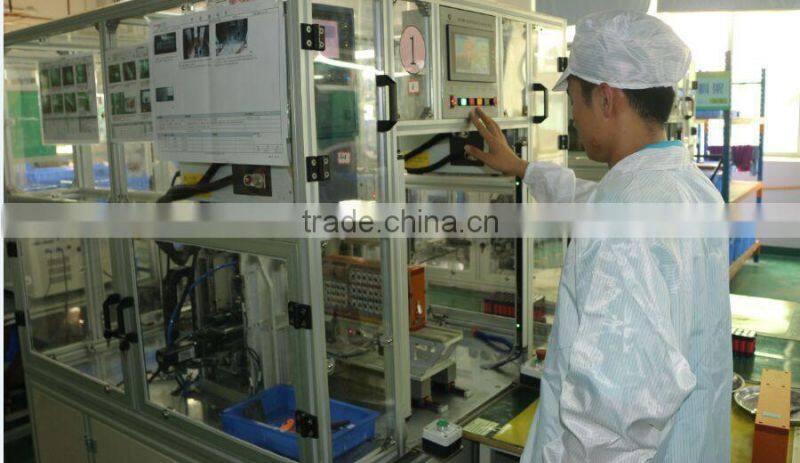

4.Why Choose Us?
1.Experienced lithium ion battery & battery modules supplier.
2.Professional technical, production & service team for your service.
3.Alibaba golden supplier, factory recognized by ISO.
4.7/24 service for you, all the question will be dealed within 24 hours.
5.Stable Quality – Come from superior material supplier and perfect quality control system.
6.Lower Cost – Not the cheapest but the lowest at the same quality.
7.Good Service – Satisfactory service before and after sale.
8.Delivery Time – 5~10 days.
