Technology support choosing: IR or white light Technology
1.Super night vision technology II (SNV II)
2.Built-in 2pcs No.3 high quality arrya led lamp special from Taiwan
3. Real color night vision distance: 30-60m
4. Adopot Oversea big iris fixed lens: 4/6/8mm or varifocal zoom lens: 2.8-12mm
5.Depart led, antifogging and anti-reflection!
6.Waterproof and sunproof design for outdoor application
7.New patent design high class for waterproof and heat emission
8.Original sony/panasonic ccd chip or Color aptina CMOS chip optional
9.Long time warranty to ensure the white light cctv camera quality
IR CCTV Camera Technical Parameter
| MODEL | CL-J10KD/R | CL-J10ED/R | CL-J10A7D/R | CL-J10A8D/R | CL-J10E8D/R |
| TV System | PAL/NTSC | ||||
| Pixel | PAL:500(H)X582(V) | PAL:976(H)X582(V) | PAL:720(H) X576(V) | PAL:720(H) X576(V) | PAL: 976(H) x 582(V) |
| NTSC:510(H)X494(V) | NTSC:976(H)X494(V) | NTSC:720(H)X487(V) | NTSC:720(H) X487(V) | NTSC: 976(H) x 494(V) | |
| Pickup device |
1/3"SONY Super HAD CCD II |
1/3"Sony Exview CCD +effio-e DSP |
1/4" ADS Pixel Color CMOS | 1/3" PANASONIC CCD+ Color DSP | |
| Scanning area | 4.8mm(H)*3.6mm(V) | 3.6mm(H)*2.7mm(V) | 4.8mm(H)*3.6mm(V) | ||
| Horizontal resolution | 480TVL | 700TVL | 700TVL | 800TVL | 800TVL |
| Minimum illumination | 0 LUX(IR ON) | ||||
| S/N ratio | >48dB | ||||
|
Gamma characteristic |
0.45 | ||||
| Electronic shutter | PAL:1/50~1/100000sec | ||||
| NTSC:1/60~1/100000sec | |||||
| Gain control | Auto | ||||
|
Back light compensation |
Auto | ||||
| White balance | Auto | ||||
| Synchronous system | Internal synchronization | ||||
|
Operating temperature |
–20~50°C | ||||
| Protecion rate | IP66 | ||||
| Lens mount | oversea big iris fixed: 4/6/8mm or varifocal lens: 2.8-12mm (Optional) | ||||
| Power in | DC12V 2A | ||||
| Video out | 1.0Vp-p/75Ω(BNC) | ||||
| Dimensions(mm) | 230(L)*115(W)*80(H) | ||||
| Weight(g) | 850 | ||||
Recommend New cctv camera system technology: White light technology

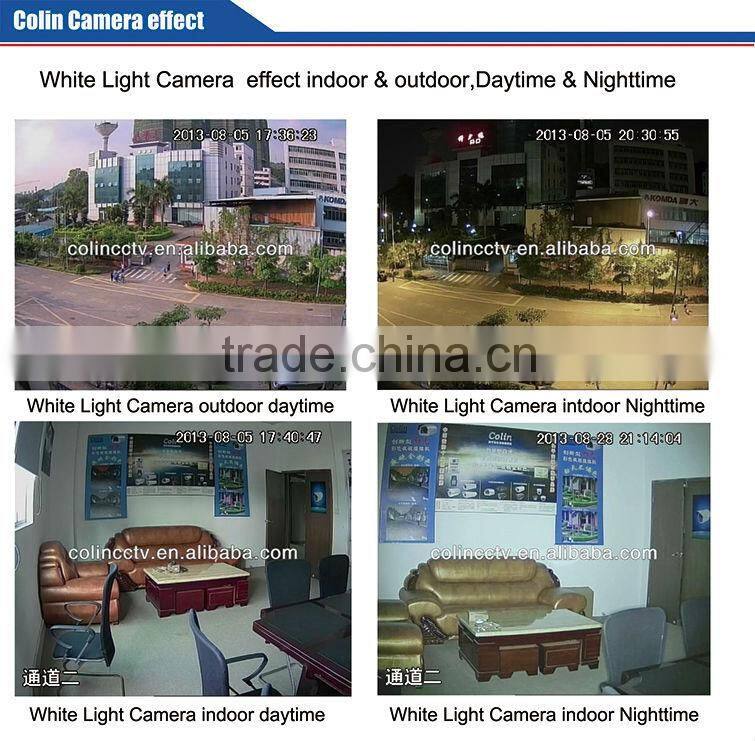

White Light cctv Camera systemdaytime and nighttime image:
1. Any inquiries will be replies within 24 hours
2. Professional manufacturer. welcome to visit our website or factory:
3. OEM/ODM available:
1).Silk print logo on the white light cctv camera for cctv camera system;
2). Customized White light cctv camera housing;
3). Customized Color Box;
4).Any your idea white light cctv camera system, we can help you to design and put it into production.
4. High quality,fashion Designs, reasonable &Competitive price, fast lead time.
5. After-sale Service:
1). All products will have been strictly Quality checked in house before packing;
2). All products will be well packed before shipping;
3). All our products have 3 years warranty, and we sure the product will be free from maintenance within warranty period;
4). if quanity more than 100pcs one model, we will free supply some white light cctv camera system parts for preapre exchange
6. Faster delivery time: Samples, 2-3 days, 10-1000pcs 3-5 working days.
7. Shipping
We have strong cooperation with DH, TNT,UPS,Fedex,EMS,Air shipping or Ocean shipping;
You also can choosing your own shipping forwarder.
About US
Our company is committed to the development of the industry for many years, with advanced technology and talents. To provide customers with the most satisfactory product quality and thoughtful service. We hope to develop together with you hand in hand. I hope the majority of buyers can come visit and tour company, your satisfaction is our greatest pursuit.
Material:
High-quality aluminum alloy, white light patent New technology for cctv camera system .
Function:
Compliance with international CE FCC ROHS certification, daytime no color deviation, real color night vision at Night.
Supply capacity:
Our company for many years been in this industry, with advanced equipment and technology to ensure supply the good quality products with good price and delivery ontime for you.
Packing:
Usually carton packaging with a label. Specifically according to the customer to your needs, you can use your company Logo print in the White light cctv camera housing or Label for cctv camera system.
If you want to know more information about our products welcome to contact us in any time, And welcome to our company! We display more our white light cctv camera system effect quality in our showroom.
------------------------------------------------------------------------
Top 10 China white light cctv camera system manufacturer
White light cctv camera- the sales No.1 in the world!
Q.May I print our company logo on package box and white light cctv camera and DVR?
A:Of course,buyer logo is welcome in our company.We have one production line for printing buyer logo.
Q.Do you provide warranty for your products?
A:Yes,we promise Three years warranty for all our products.
Q.What is your method of payment?
A:Pay via T/T,Western Union,Escrow, paypal and so on; L/C is welcome.
Q.What is Minimum Order Quantity?
A:Minimm Order Quantity is 50pcs,but sample order is welcome.
Q.What is Carton box quantity?
A: Big carton box size: 67*42*65cm max quantity: 37pcs
