Help Center700tvl Constant Power and Wide Voltage Input and Waterproof Night Camera Cctv
Related Products
-
High Resolution Day/night Outdoor White Light Cctv Ccd CameraUS$ 19 - 69MOQ: 5 Pieces -
800tvl ir Night Vision Cmos Waterproof Outdoor Outdoor Cameras SecurityUS$ 13.8 - 84.4MOQ: 5 Pieces
-
China Professional Cctv Manufacturer Supply 720P 1080P Mega3 Mega5 TI368 hd ip Network CameraUS$ 1 - 120MOQ: 5 Pieces
-
Colin Hot Sales Model CCTV Outdoor Waterproof Onvif P2P POE Hisilicon 3516C Board 60fps ip Camera With AddressUS$ 20 - 60MOQ: 5 Pieces
-
1/3" SONY Color CCD Camera High Resolution Outdoor IP66 Waterproof Fixed Lens Camera de Surveillance With BracketUS$ 15 - 45MOQ: 1 Piece
About us:
Our company is committed to the development of the industry for many years, with advanced technology and talents. To provide customers with the most satisfactory product quality and thoughtful service. We hope to develop together with you hand in hand. I hope the majority of buyers can come visit and tour company, your satisfaction is our greatest pursuit.
Material:
High-quality aluminum alloy, white light patent New technology for the cameras.
Function:
Compliance with international CE FCC ROHS certification, daytime no color deviation, real color night vision at Night.
Supply capacity:
Our company for many years been in this industry, with advanced equipment and technology to ensure supply the good quality products with good price and delivery ontime for you.
Packing:
Usually carton packaging with a label. Specifically according to the customer to your needs, you can use your company Logo print in the Camera housing or Label.

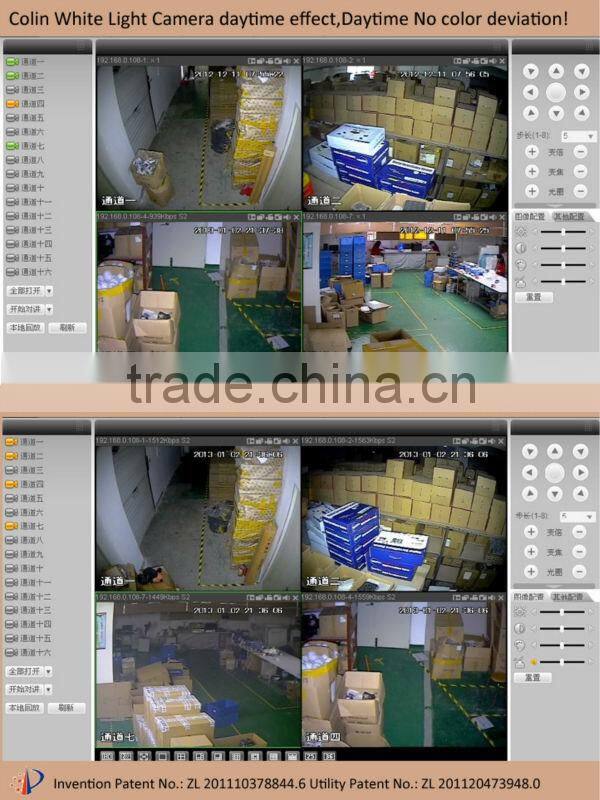

==CCTV New Patent technology White Light Technology Advantages==
Daytime No color deviation, True Color image during Night, Bright colors imaging
Low power, Longevity long feature ,Energy saving electricity, Green power.
CCTV Saving Energy Proudct- Level 1
Constant power and wide voltage input(12-36V), Lightning protection, anti-static.
Invention Paten No.: ZL201110378844.6
Utility Patent No.: ZL201120473948.0
Product Characteristics:
1.Color 1/3" SONY Exview HAD CCDII Super night vision technology (SNV)
2.Built-in 3pcs Ø25mm high quality array led from taiwang Factory.
3. Separate leds, antifogging and anti-reflection
4. Using Oversea big iris fixed lens(4/6/8/12/16mm)
5. Use of high quality aluminum alloy, easy for heat emissions
6. Waterproof and sunproof design for outdoor application
7. Constant power and wide voltage input:DC12-24V
Constant power and wide input voltage (C):
1. In the range of 12V-24V DC input voltage, this tech can keep the input power and output power constant.
2. Completely eradicate the damage of the unstable input voltage (such as the surge, etc.) to the camera.
3. This tech can make the Camera long-term stable work in the range of 12V-24V DC input voltage, which is the best solution for centralized power supply.
Technical Parameter:
| MODEL | CL-860SD/CW | CL-860KD/CW | CL-860AD/CW | CL-860ED/W |
| TV System | PAL/NTSC | |||
| Pixel | PAL:500(H)X582(V) | PAL:550(H)X582(V) | PAL:648(H)X488(V) | PAL:976(H)X582(V) |
| NTSC:510(H)X492(V) | NTSC:560(H)X492(V) | NTSC:648(H)X488(V) | NTSC:976(H)X494(V) | |
| Pickup device | 1/3"SONY Super HAD CCD II | 1/3"SONY Super HAD CCD II | 1/3"Pixel ADS CMOS | 1/3"Sony Exview CCD with effio-e DSP |
| Scanning area | 4.8mm(H)*3.6mm(V) | |||
| Horizontal resolution | 480TVL | 520TVL | 600TVL | 700TVL |
| Minimum illumination | 0 LUX(IR ON) | |||
| S/N ratio | >48dB | |||
| Gamma characteristic | 0.45 | |||
| Electronic shutter | PAL:1/50~1/100000sec | |||
| NTSC:1/60~1/100000sec | ||||
| Gain control | Auto | |||
| Back light compensation | Auto | |||
| White balance | Auto | |||
| Synchronous system | Internal synchronization | |||
| Operating temperature | –20~50°C | |||
| Protecion rate | IP66 | |||
| Lens mount | 3.6/6/8/12/16mm (Optional) | |||
| Power in | DC12V 2A | |||
| Video out | 1.0Vp-p/75Ω(BNC) | |||
| Dimensions(mm) | 95*185 | |||
| Weight(g) | 730g | |||
Aging test:
Factory and Security fair:
After-sale services:
1. Can be returned within one month.
2. Can be changed within three months.
3. Free repair within two years.
Faster delivery and best after-sales services:
We guarantee punctual delivery, competitive price and prompt response.
Welcome to visit our factory and look forward to establishing long-term business relationships with you in the near future.
Don't let you know our website is our fault, let you know but don't buy our products is our fault, as well.
We believe that excellent co-operation from you and me!
