Colin hot new products cctv cctv all types hidden ip camera uav for 2014
CCTV DOME Camera Feature
- Built-in 3 pcs Φ25mm high quality array White Led Special from taiang Factory
- Small fixed lens: 3.6/6mm for choosing
- New dome housing design for prompt sales
- Depart Led Antifogging and Anti-reflection
- Use of High-Quality alloy metal material
- Easy for Heat emission,easy to installing.
- Depart LED, Anti-fogging and anti-reflection.
- Performance dependabl, Protect dampness good
- High quality metal dome housing cctv camera supplier in the philippines
- Technology support:White Light or Infrared IR
- Shenzhen Colin brand cctv manufacturer-White light camera sales No.1 in the world
CCTVDOME Camera Technical Parameter:
| MODEL | CL-746KD/W | CL-746ED/W | CL-746E8D/W | CL-746A7D/W | CL-746A8D/W |
| TV System | PAL/NTSC | ||||
| Pixel | PAL:500(H)X582(V) | PAL:976(H)X582(V) | PAL:976(H)X582(V) | PAL:720(H) X576(V) | PAL:720(H) X576(V) |
| NTSC:510(H)X494(V) | NTSC:976(H)X494(V) | NTSC:976(H)X494(V) | NTSC:720(H) X487(V) | NTSC:720(H) X487(V) | |
| Pickup device | 1/3"SONY Super | 1/3"Sony Exview CCD | 1/3"Panasonic CCD | 1/4" ADS Pixel Color CMOS | |
| HAD CCD II | +effio-e DSP | +color DSP | Without DSP | +color DSP | |
| Scanning area | 4.8mm(H)*3.6mm(V) | 3.6mm(H)*2.7mm(V) | |||
| Horizontal resolution | 520TVL | 700TVL | 800TVL | 700TVL | 800TVL |
| Minimum illumination | 0 LUX(IR ON) | ||||
| S/N ratio | >48dB | ||||
| Gamma | 0.45 | ||||
| characteristic | |||||
| Electronic shutter | PAL:1/50~1/100000sec | ||||
| NTSC:1/60~1/100000sec | |||||
| Gain control | Auto | ||||
| Back light | Auto | ||||
| compensation | |||||
| White balance | Auto | ||||
| Synchronous system | Internal synchronization | ||||
| Operating | –20~50°C | ||||
| temperature | |||||
| Protecion rate | Metal dome for indoor using | ||||
| Lens mount | 3.6/6mm (Optional) | ||||
| Power in | DC12V 2A | ||||
| Video out | 1.0Vp-p/75Ω(BNC) | ||||

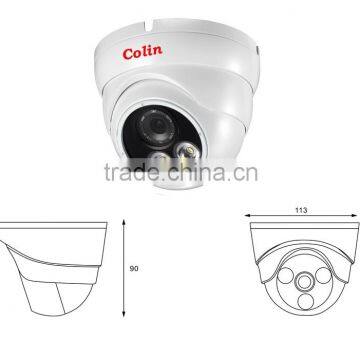

| Dimensions(mm) | Φ113*90 | ||||
| Weight(g) | 670 | ||||
Recommend New cctv camera technology: White light technology
No Color Deviation during Daytime
Color is Brighter and More Realistic Effect
Real Colorful Image in the Nighttime
Colin's White Light Technology Increase the Colorful Imformatioin during the Nighttime,It illuminates the Darkness and Render a Daylight Effect, Therefore Aiding Face Recongnition and Profiling during Investigation
Lower Power, Longer Service Life, More Energy Efficient, More Enviromental Protection
The 'White Light' Led ONLY Use 60% Power Compared to the IR Camera's 80% Power Consumption, Which will Protect the Camera and Performs More Stability. White Light Cameras not only Help Users Save Energy,It also Protects Our Enviroment Due to Its Lower Carbon Emission.COLIN Promots this Energy Efficient Products
Illumination and Warning Function at Night
Colin's White Light Camera Uses High Quality Eviromental Protection White Light Led from Taiwan.At Night It can be Used as "Street Lamp" and "Security Light" at the Same Time. This Function helps Ward Off Potential Burglas, Keeping Your serveillance Places Safe at Night.
illumination Protection, Anti-Static
Comprehensive Protecting the Camera Power Input and Signal Output.Using High Class Proctective Circut Design Help Camera Complete Eradicate the Hazards of Illumination and Stactic
Super Night Vision Ehance Technology II(SNVII)
We Improved the Function of Absorbing more Reflection Light by Using Higher Illumination Effecient Led Diodes. Using Oversea Big Oris Lens and Improved Back-End Circuity to Ehnhance Brightness during Dark Enviroment. Enhancing more of the Night Vision
Colin's Camera Effect---White Light cctv Camera daytime and nighttime image:
1. Any inquiries will be replies within 24 hours
2. Professional manufacturer. welcome to visit our website or factory:
3.OEM/ODM available:
1).Silk print logo on the cctv dome camera;
2). Customized full hd cctv dome camera;
3). Customized Color Box;
4).Any your idea on cctv dome camera we can help you to design and put it into production.
4. High quality,fashion Designs, reasonable &Competitive price, fast lead time.
5.After-sale Service:
1). All products will have been strictly Quality checked in house before packing;
2). All products will be well packed before shipping;
3). All our products have 2 years warranty, and we sure the product will be free from maintenance within warranty period;
4). if quanity more than 100pcs one model, we will free supply some cctv dome camera parts for preapre exchange
6. faster delivery time: Samples, 2-3 days, 10-1000pcs 3-5 working days.
7.Shipping
We have strong cooperation with DH, TNT,UPS,Fedex,EMS,Air shipping or Ocean shipping;
You also can choosing your own shipping forwarder.
About us:
Our company is committed to the development of the industry for many years, with advanced technology and talents. To provide customers with the most satisfactory product quality and thoughtful service. We hope to develop together with you hand in hand. I hope the majority of buyers can come visit and tour company, your satisfaction is our greatest pursuit.
Material:
High-quality aluminum alloy, white light patent New technology for the cctv camera.
Function:
Compliance with international CE FCC ROHS certification, daytime no color deviation, real color night vision at Night.
Supply capacity:
Our company for many years been in this industry, with advanced equipment and technology to ensure supply the good quality products with good price and delivery ontime for you.
Packing:
Usually carton packaging with a label. Specifically according to the customer to your needs, you can use your company Logo print in the cctv camera housing or Label.
Q.May I print our company logo on package box and cctv camera and DVR?
A:Of course,buyer logo is welcome in our company.We have one production line for printing buyer logo.
Q.Do you provide warranty for your products?
A:Yes,we promise two years warranty for all our products.
Q.What is your method of payment?
A:Pay via T/T,Western Union,Escrow, paypal and so on; L/C is welcome.
Q.What is Minimum Order Quantity?
A:Minimm Order Quantity is 50pcs,but sample order is welcome.
Q.What is Carton box quantity?
A: Big carton box size: 67*42*65cm max quantity: 80pcs
