Manufacture stationary dock ramp for forklift china
stationary dock ramp
Ramps for Loading Docks and Warehouses
Hongtaihuafeng is the dock equipment industry leader. When you need any type of ramp for your current facility,
we have it. Loading docks need to be efficient and safe. Docks can be a dangerous place, especially when on
forklifts. As a forklift travels over uneven grades, the chance for injury increases. Ramps that bridge the gap
between elevations help to keep the forklift stable andeveryone safe.
Portable Ramps and Dock to Ground Ramps
Our stationary dock and mobile dock provide you with a durable solution which
can be traversed by trucks and other vehicles from grade level to dock height.
Standard specifications include capacities ranging from 12,000 to 30,000 lbs,
lengths from 20 to 36 feet, and height ranges of either 38 to 60 inches,
or 22 to 38 inches.
1. Hydraulic drive, easy to operate.
2. Platform: Paved checkered plate, strengthen the skid resistance.
3. High strength “U” girder design, ensure the platform is not distortional with large load capacity.
4. There is skirt board on both side, to prevent accidental damage toes into the platform.
5. Obturating seal is VALQUA brand (import from Japan), good seal, to prevent leakage of hydraulic pipe.

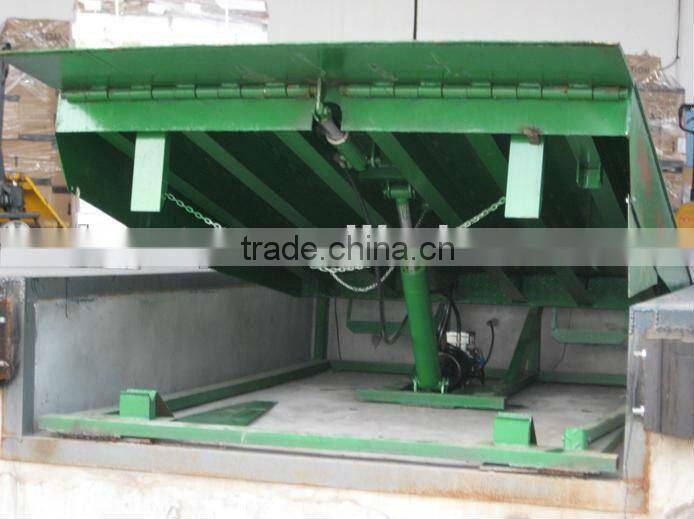

6. Install in a pit, it is more stable when forklift works.
loading dock ramp leveler specifications:
Specification |
Vertical travel (mm) |
Capacity (Kg) |
Power (Kw) |
Platform size (L*W, mm) |
Overall size (L*W*H, mm) |
Weight (kg) |
DCQG6-0.6 |
+400 -300 |
6000 |
0.75 |
2500*2000 |
2500*2000*700 |
700 |
DCQG8-0.6 |
+400 -300 |
8000 |
0.75 |
2500*2000 |
2500*2000*700 |
850 |
DCQG10-0.6 |
+400 -300 |
10000 |
0.75 |
2500*2000 |
2500*2000*700 |
1000 |
DCQG12-0.6 |
+400 -300 |
12000 |
0.75 |
2500*2000 |
2500*2000*700 |
1150 |
Custom-made according to the requirement
Honty is a professional company who is dedicated to machinery manufacturing, located at the famous heavy industry areal Jinan, China, we have streamlined technical, professional production personnel, installing teams, and comprehensive service system.
“Safety, service, integrity and efficiency” is the motto of the company, all of the products are up to the “People’s Republic of China Machinery Industry standards” ISO 9001:2008 & CE standard. We are continuously improving the quality of the products and launching new series of the products to satisfy the marketing growth. We have 29 dutiful and professional engineers to work for after-sale service, they can resolve your problem in 7*24 hours through telephone, IM or email. We also can supply door-to-door and special value added service.
If more information to know, pls email me .
1. How about the delivery time?
Within 15 working days after we receive the order
2. What kind of payments do you support?
T/T, L/C, Western Union, paypal, other kinds, pls contact with us.
3. What is the MOQ?
Generally speaking, the MOQ is 1 set, Different products have different MOQ, pls contact with us.
4. Can you produce according to customer's requirements?
Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and platform size, OEM we are also welcome.
5. Can you tell us your main customers?
That's our customer's privacy, we should protect their information, when you need, we ask them first, if agree, we can tell u.
