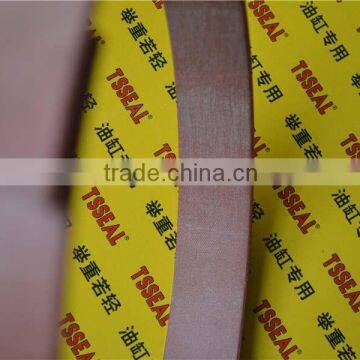

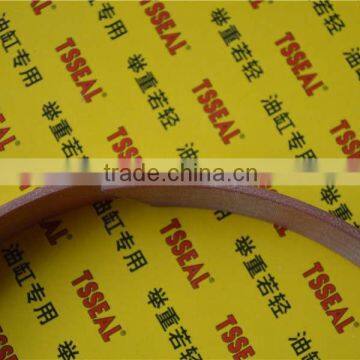

HYDRAULIC GUIDE STRIPS SEALS 3CX 4CX 991/00103
- 100 Piece / Pieces per Month
- TIANJIN XINGANG CHINA
- T/T L/C D/P D/A Credit Card PayPal
- Internal gear 40cr 41A0076 for Liugong loader parts ,axle parts
- Liugong Wheel loader parts Liugong spare parts SP104817 Gland
- Liugong Spare parts Castle nut 03B0050 Standard parts for Liugong Wheel loader parts
- Conical roller bearing 23B0019 Standard parts for Liugong Wheel loader parts
- Liugong spare parts flasher relay 31B0005 fpr Liugong Wheel loader parts
- Air tank assembly ,pressure controller 13C0015 for Liugong Wheel loader parts
Product Details
Place of Origin: | Hebei, China | Brand Name: | JCB | Model Number: | 3CX 4CX |
Product Description
SinoHyva is China’s leading hydraulic seals manufacturer.
Our functional parts, such as hydraulic seals and o-rings of advanced technology in processed synthetic rubbers, are used not only in the commercial vehicle industry, but also in a wide variety of other industries. We have developed into the number-one reliable company in this field while leveraging the technology and know-how acquired since the star-up of operations.
SinoHyva has created the products full of dreams. While SinoHyva products vary from miniature to man-sized, they are all cared equally with the closest attention.
Starting from the field of hydraulic seals, SinoHyva has been changing its corporate image to the extending of having cutting-edge technology and development relating to heavy engineering.
SinoHyva’s products and technology are not outwardly visible. However, SinoHyva is always with you. We are committed to providing the innovative products to perfectly meet our customers’ needs, while contributing to the global community. SinoHyva’s dreams are infinite and everlasting.
Hydraulic seals and guides
Hydraulic cylinder seals are used to seal the opening between various components in the hydraulic cylinder. There are two main types of hydraulic seals in the system:
. Dynamic seals
They seal between components in relative motion. In a hydraulic cylinder the rod sealing system seals dynamic reciprocating motion between the piston rod and head, while the piston sealing system seals dynamic reciprocating motion between the piston and cylinder bore.
. Static seals
They seal between components fixed together without relative motion. Hydraulic cylinders use static seals in various locations depending on the design and construction. The most common are static seals between the piston and piston rod and between the head and cylinder bore tube.
Each dynamic seal in a hydraulic cylinder has a special function to contribute to the performance of the system:
Piston seal functions
. act as pressure barrier and prevent fluid passing the piston – important for controlling the cylinder motion or maintaining the position when at rest
Rod seal functions
. act as pressure barrier and keep the operating fluid inside the cylinder
. regulate the fluid film which extends with the surface of the piston rod – important to inhibit rod corrosion and to lubricate the wiper seal and the rod seal itself
. accept the lubrication film back into the cylinder when the rod retracts
Buffer seal functions
. protect the rod seal from fluid pressure peaks in excess of system pressure
.attenuate the fluctuations in system pressure, thereby improving rod seal performance by allowing the rod seal to deal with more constant or gradually changing pressure
. act as an internal excluder to keep system contaminants, such as metal particles, from damaging the rod seal
Wiper seal functions
.exclude external contaminants from entering the cylinder assembly and the hydraulic system
.accept the lubrication film back into the cylinder when the rod retracts
Guide rings (rod and piston) functions
.prevent metal-to-metal contact between components
.react the radial load caused by side loads on the cylinder assembly
. keep the piston rod and piston accurately centred in the cylinder assembly-important for performance of the rod sealing system and piston sealing system
Cylinder classification
The type of cylinder and the application in which it is used are two of the main criteria when selecting the appropriate seals and guides. Applications are referred to as light duty, medium duty or heavy duty applications. These classifications are somewhat subjective but the duty levels are typically characterized by the following criteria.
Light duty cylinders
Light duty cylinders, e.g. cylinders used for stationary equipment indoor in a factory environment, may be characterized by:
. system pressures up to 160 bar (2300 psi)
. temperatures up to 70 °C (160 °F)
. rare pressure peaks in excess of system pressure
. minimal side loads acting on guides
. environment with moderate temperature fluctuations and relatively free of contaminants
Medium duty cylinders
Medium duty cylinders, e.g. cylinders in agriculture off-highway equipment, may be characterized by:
. system pressures up to 250 bar (3625 psi)
. temperatures up to 90 °C (195 °F)
. moderate pressure peaks in excess of system pressure
. moderate side loads acting on guides
. environment with temperature fluctuations and typical external contaminants such as dust and --------moisture
Heavy duty cylinders
Heavy duty cylinders, e.g. cylinders in off-highway earthmoving or forestry equipment, may be characterized by:
. system pressures of 400 bar (5800 psi) or more
. temperatures exceeding 90 °C (195 °F) with peaks in excess of 110 °C (230 °F)
. regular pressure peaks in excess of system pressure
. heavy side loads acting on guides, usually due to heavy components and/or high accelerations
. tough environment with wide temperature fluctuations and typical harsh external contaminants
In hydraulic cylinders the most commonly used guides are guide rings and guide strips. They accommodate radial loads of forces acting on the cylinder assembly and guide the rod in the cylinder head as well as the piston in the cylinder bore.
Guides are made of polymer materials and prevent metal-to-metal contact between moving parts in a working hydraulic cylinder. Compared to metal guides, polymer guides provide the following advantages in hydraulic cylinders:
. significantly longer service life
. work more smoothly against the cylinder bore and the sealing surfaces
. avoid wear of cylinder surfaces despite the presence of contamination particles
. high resistance to insufficient lubrication at low speeds
. larger contact area due to higher degree of elastic deformation distributes the load and reduces ------stress to counter-surface
. certain self-lubricating properties
SinoHyva supplies different precision machined guide rings with different polymer materials and sizes, which make them appropriate for a wide variety of operating conditions and applications.
Guides of PTFE are also available for applications where start-up friction must be minimized. PTFE guides have limited load carrying capability and should only be used in applications with light loads.
Items | Draft |
Guide rings | |
WAT rod or piston guide rings | |
Guide strips | |
PTFE guide strips in different designs and configurations |
