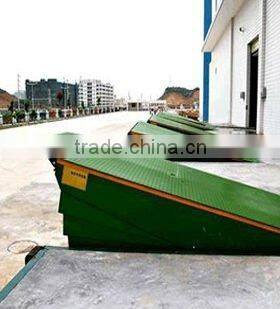

Hydraulic Dock Leveler

Name: Hydraulic Dock Leveler
Brand: hontylift
SKU: 107918095
Availability: InStock

US$ 2,500 - 4,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

hontylift

Model Number:

DCQG

Jinan Honty Machinery & Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name hontylift

Model Number DCQG

Lift Mechanism Other, hydraulic cylinder

Lift Drive / Actuation Hydraulic

Power 0.75kw

Rated Loading Capacity 6-15tons

Min. Lifting Height 500Mm

Max. Lifting Height 1200mm

Table Size 2000*2500

Weight 1.2tons

Specifications

hydraulic dock leveler
1.Full automatic operation
2.Protection board design
3.Vertical travel:+400/-300
4.Capacity:6-15t

Characters of Stationary Hydraulic dock leveler.:

Only to push the button, the ramp lift automatically, the operation is very simple, free the button, the ramp drop by gravity, the extended board is on the carbox, then it can be use.

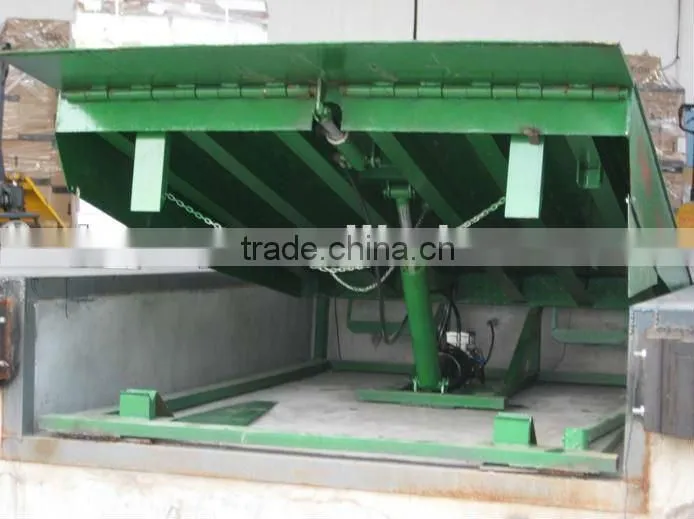

Though driving system, big cylinder lifts the ramp, to the top, small cylinder lifts the extended board, the surface board is made of high quality checkered iron plate from Jinan Steel Group, which make it a longer life.
Hydraulic system is imported from Italy, very good performance, few maintenance.
Unique “streamline” extended board design, compared with traditional design, the welding area is 3 times, which makes it more stronger.
There are 3 movables boards on both side of the ramp for safty to avoid from hurting labors’ toes when the machine drops. There is a open design under the surface board to make cleaning more convenient.
Unique designed “I" structure makes pressure distribute, reduces the torque force on the main structure, which is better than channel structure.
When maintenance and cleaning is necessary, stay bar support the surface board, better in safty.

Stationary dock leveler parameters:
