Help CenterFiber Optic Identifier
Related Products
Specifications
Fiber optic IdentifierHigh stability of the output power
Economic type, easy to use
Matched with the OFS-6205 mini power met

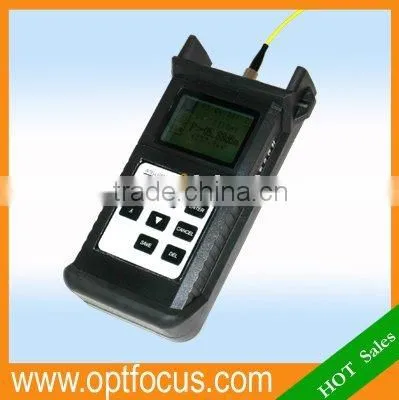

is a perfect testing instrument for both laboratory and field applications in optical fibers. It features friendly User Interface with menu operation, automatic frequency identification , large LCD display with backlight and dual-way powering system. The internal microprocessor and linear amplifier technology ensure the long-term accuracy. In addition, OFS-6206 has a memory capacity of 240 records and can transfer the measurement data through a RS232 communication port to a PC for printing or editing. Moreover, it can also perform on-line data upload after programme control.
Features
l Memory capacity of 240 data items; enables data transfer to a PC via
RS232 commmunication port.
l High accuracy and wide dynamic range
l Automatic frequency identification
l Power measurements in dBm or mw and insertion loss in dB
l Low battery indication
l 10 minutes Auto-off function conserving battery life
Applications
Maintenance in Telecom
Maintenance CATV
Fiber Optic Lab Testing
Other Fiber Optic Measurements
Fiber optic Identifier Specifications
Type |
OFS-6206A |
OFS-6206C |
Wavelength(nm) |
800~1700nm |
|
Detector |
InGaAs |
|
Measurement Range (dBm) |
-70~+6 |
-50~+26 |
Uncertainty |
±5% |
|
Communication interface |
RS232 |
|
Date storage capacity |
240 records(Contains Measurement wavelength, Testing value and Time) |
|
Identification Frequency Range |
10Hz~60KHz |
|
Calibrated Wavelength(nm) |
850,980,1300,1310,1490,1550 |
|
Resolution(dB) |
0.01 |
|
Optical Connector |
FC(interchangeable SC,ST) / as well as 2.5mm universal |
|
Power Supply |
Rechargeable Battery + Power Supply Adaptor |
|
Battery Operating Time |
21 hours |
|
Operating Temperature(°C) |
-10 ~ +60 |
|
Storage Temperature(°C) |
-25 ~ +70 |
|
Relative Humidity |
0 to 95% (non-condensing) |
|
Dimension(mm) |
210X115X55 |
|
Weight(g) |
520 |
|
Standard Packages
MODEL |
INCLUDES |
All OFS-6206 Models |
OFS-6206 Optical Power Meter, Protective Rubber Boot, Rechargeable battery, Power Supply Adaptor,Software disk, Data transfer cable(RS232), Instruction Manual and Cotton Tampon. Rigid hard carrying case can be optional. |
