Fiber Optical Talk Sets----------OFS-7103

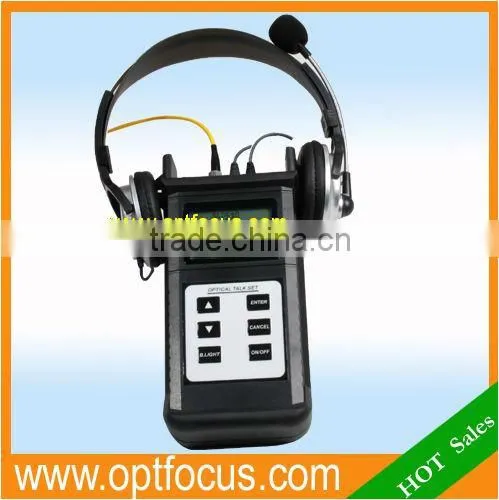

OFS-7103 Optical Talk Set
is an intelligent and efficient instrument that combines in one set the functions of both a digital optical phone and a stabilized light source. It is widely used in operations of installation, optical testing, maintenance and fiber attenuation value testing in data network, CATV and Telecommunication network. The OFS-7103 Talk Set can carry out full-duplex communication with high quality connection and not be affected by distance.
Features:
•Full-duplex digital communication with high quality conversation connection and low background noise
•Together with Optical Clip-on Coupler, enables on line communications available
•Combining functions of both a digital optical phone call and a stabilized light source.
•arge LCD display with backlight
•Low battery power indication
Applications:
Maintenance in Telecom
Maintenance CATV
Fiber Optic Lab Testing
Other Fiber Optic Measurements
Specifications:
Type |
OFS-7103 |
Wavelength(nm) |
1310/1550 |
Emitter Type |
FP-LD |
Transmission Distance |
≥80km |
Dynamic Range |
40dB |
Output Power |
-5~-7dBm(9/125um), CW or 2KHz, 1KHz, 270Hz Modulation |
Output Stability |
±0.1dB/±0.25dB(1/8hrs) CW |
Power Supply |
Rechargeable Battery + Power Supply Adaptor |
Battery Operating Time |
5 hours |
Optical Connector |
FC/PC |
Operating Temperature(°C) |
-10 ~ +60 |
Storage Temperature(°C) |
-25 ~ +70 |
Dimension(mm) |
215X115X55 |
Weight(g) |
520 |
Remark: provides Fiber Optic Clip-on Coupler device according to customers needs. | |
