Specifications
1.25G Series BiDi sfp transciver/sfp modulepatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)

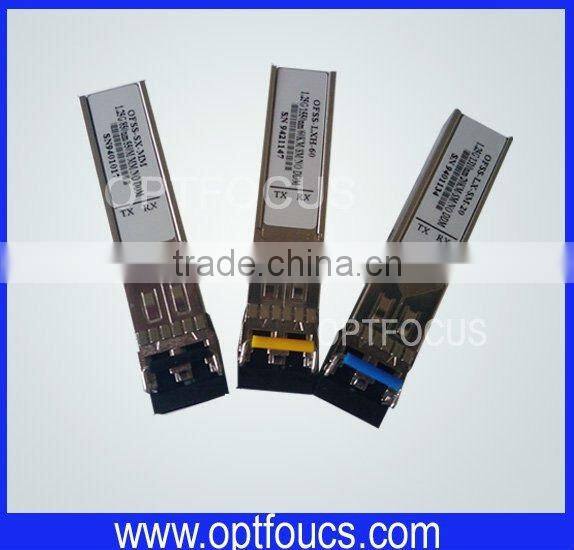

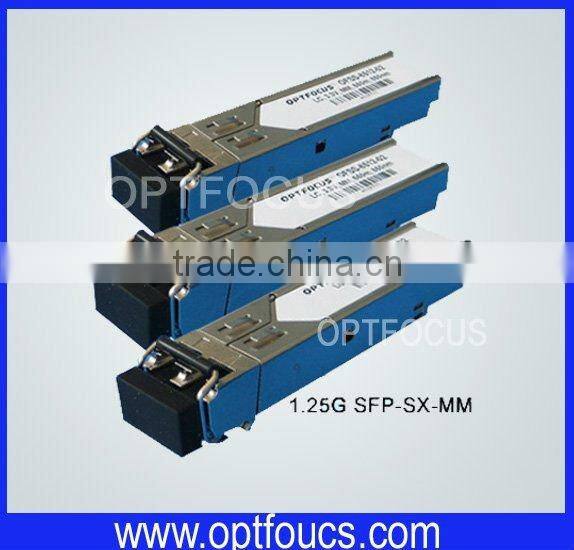

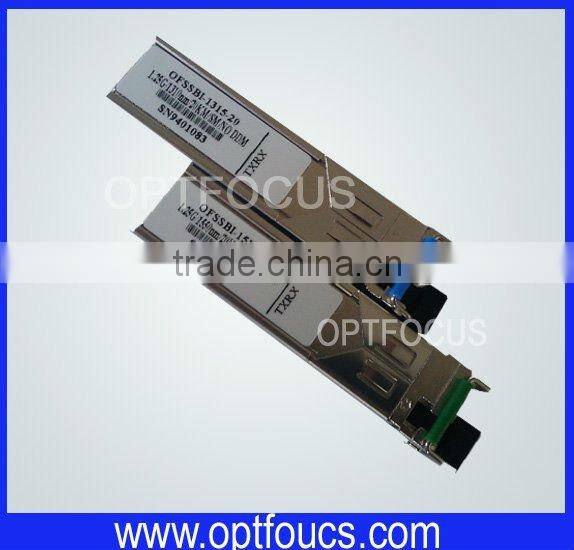

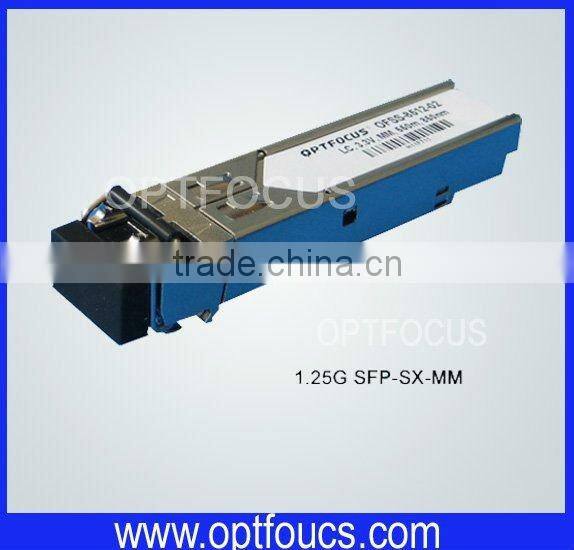

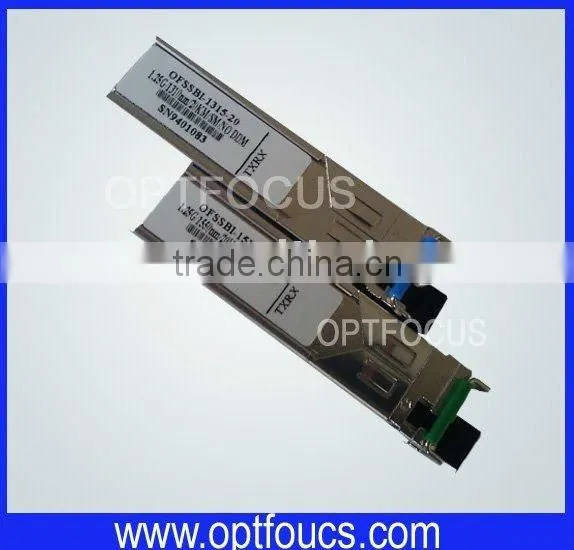

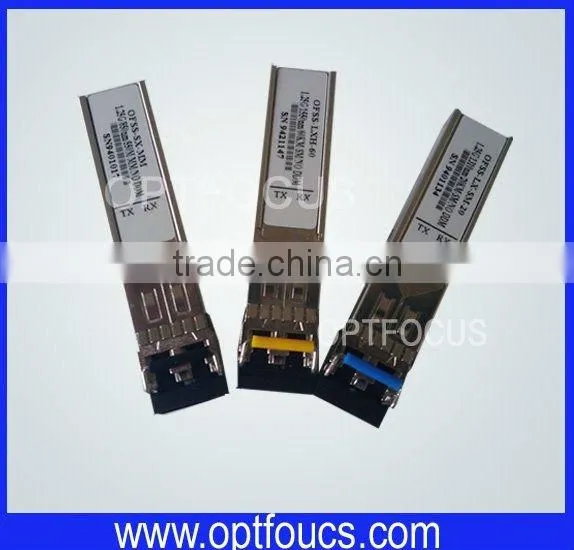

1.25G Series BiDi sfp transciver/sfp module
General
OPTOFUCS’s Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.
Product Features
Single LC receptacle optical interface compliant
Hot-pluggable SFP footprint
1310nm Fabry-Perot laser transmitter
RoHS compliant and Lead Free
Up to 20 km on 9/125
Metal enclosure for lower EMI
Single 3.3V power supply
Low power dissipation <600mW
Commercial operating temperature range: 0°C to 70°C
Applications
1.25Gb/s 1000Base-LX Ethernet
SONET/SDH
Fiber Channel links
Part No. | Package (bps/Hz) | Data Rate | Tx(nm) | Pout (dBm) | Rx | Sensitivity | connector | Reach | Other Option |
OFSB-35(53)12L-20 | Bi-Di SFP | 1.25G | 1310/1550nm FP | -8~-84 | PIN | ≤-25 | LC/SC | 20KM | DDM RoHS |
OFSB-35(53)12L-40 | Bi-Di SFP | 1.25G | 1310/1550nm FP | -5~0 | PIN | ≤-25 | LC/SC | 40km | DDM RoHS |
OFSB-35(53)12L-60 | Bi-Di SFP | 1.25G | 1310/1550m DFP | -2~+3 | PIN | ≤-25 | LC/SC | 60km | DDM RoHS |
OFSB-35(53)12L-80 | Bi-Di SFP | 1.25G | 1490/1550nm DFP | 0~+5 | PIN | ≤-3425 | LC/SC | 80km | DDM RoHS |
OFSB-35(53)12L-100 | Bi-Di SFP | 1.25G | 1490/1550nm DFP | 0~+5 | PIN | ≤-32 | LC/SC | 100km | DDM RoHS |
Payment & Shipping Terms
Minimum Order Quantity: 1~2piece/pieces
Port: Shenzhen
Packaging Details:carton
Delivery Time:3~5 days
Payment Terms:T/T ,L/C
Supply ability:1000 Piece/Pieces per Week
Warranty:5 years
