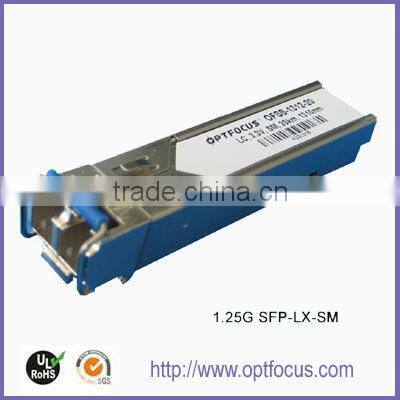

SFP Optical Transceiver

SFP Optical Transceiver thumbnail-1
SFP Optical Transceiver photo-1
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Optfocus
Contact Supplier Request Quote Chat Now
Shenzhen Optfocus Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Optfocus

Specifications

STM-4 622M SFP 20km SM LC connector
1.STM-4 SFP
2.Single +3.3V Power Supply
3.1550nm FP SFP
4.OC-12 Application

SFP 20km SM LC connector

Features:

  • Hot-pluggable SFP Footprint
  • Dual LC Connectors
  • Wide Distance Supported from 500m to 120km
  • Digital Diagnostic Functions Optional
  • Metal Enclosure for Lower EMI
  • Comply with SFP MSA
  • Comply with SDH/SONET
  • Comply with IEEE Std 802.3
  • Operation Temperature range 0~70°C or -40~85°C Optional

Compatible  for main equipment like Cisco,HP,H3C,Extreme,Juniper,Huawei etc.



 Features

up to 4.25 Gbps date link

hot--pluggable SFP footprint

1310nm Fabry-Perot laser transmitter

Duplex LC connector

very low jitter

No rate selet input required

Fiber Channel 1x/2x Operation

Metal enclosure , for lower EMI

Single 3.3V power supply

Low Power dissipation < 7000mW typical

CWDM is also Acailable

Ordering information

Part No

Data rate

wavelength

distance

source

TX power

RX sens

others

OFSS-8503-02

155M

850nm

2KM

VCSEL

-15~-5dBm

<-30dBm

ROHS DDM

OFSS-1303-02

155M

1310nm

2KM

VCSEL

-15~-5dBm

<-30dBm

ROHS DDM

OFSS-1303-20

155M

1310nm

20KM

FP

-15~-8dBm

<-36dBm

ROHS DDM

OFSS-1303-40

155M

1310nm

40KM

FP

-14~-8dBm

<-36dBm

ROHS DDM

OFSS-1303-60

155M

1310nm

60KM

FP

-5~0dBm

<-36dBm

ROHS DDM

OFSS-1303-80

155M

1550nm

80KM

DFB

-5~0dBm

<-38dBm

ROHS DDM

OFSS-8512-05

1.25G

850nm

0.5KM

VCSEL

-9~-3dBm

<-17dBm

ROHS DDM

OFSS-1312-10

1.25G

1310nm

10KM

FP

-9~-3dBm

<-22dBm

ROHS DDM

OFSS-1312-20

1.25G

1310nm

20KM

FP

-9~-3dBm

<-23dBm

ROHS DDM

OFSS-1312-40

1.25G

1310nm

40KM

DFB

-5~0dBm

<-24dBm

ROHS DDM

OFSS-1512-60

1.25G

1550nm

60KM

DFB

-2~+3dBm

<-24dBm

ROHS DDM

OFSS-1512-80

1.25G

1550nm

80KM

DFB

0~+5dBm

<-24dBm

ROHS DDM

OFSS-1525-120

1.25G

1550nm

120KM

DFB

0~+5dBm

<-32dBm

ROHS DDM

OFSS-1525-100

2.5G

1550nm

100KM

DFB

>2dBm

<-28dBm

ROHS DDM

OFSS-1525-80

2.5G

1550nm

80KM

DFB

0~+5dBm

<-28dBm

ROHS DDM

OFSS-1525-40

2.5G

1550nm

40KM

DFB

-2~+3dBm

<-18dBm

ROHS DDM

OFSS-1325-10

2.5G

1310nm

10KM

DFB

-5~0dBm

<-18dBm

ROHS DDM

OFSS-1325-2

2.5G

1310nm

2KM

FP

-9~-3dBm

<-18dBm

ROHS DDM

OFSS-8525-03

2.5G

850nm

0.3KM

VCSEL

-9~-3dBm

<-18dBm

ROHS DDM
