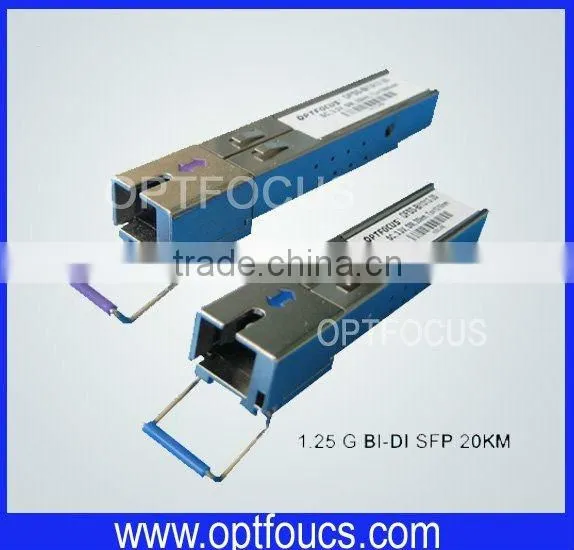

BI-DI SFP MODULE /sfp Fiber Optic TransceiversNegotiableMOQ: 20 Pieces
-
LC Fiber Interface 1.25G Duplex Fiber Optical Module 60KMUS$ 20 - 100MOQ: 2 Pieces
-
1.25G Duplex Optical Module 80KMUS$ 10 - 600MOQ: 20 Pieces
Specifications

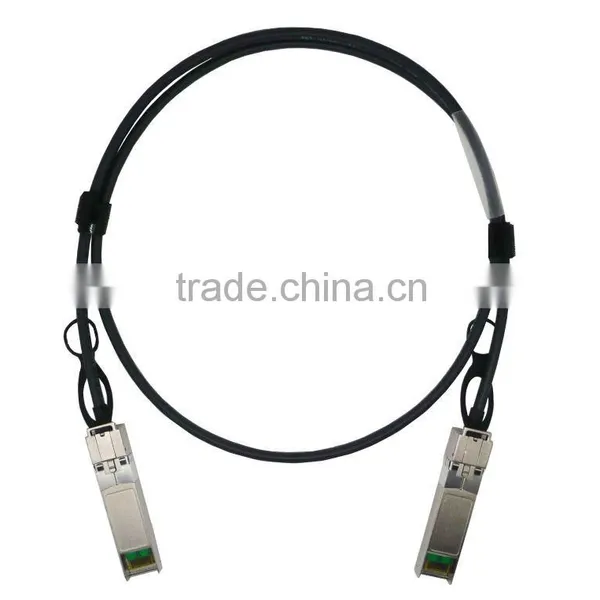

SFP+ Direct Attach (10GSFP+Cu), 1m, 3m, 5m, 7m 10m 1.Hot -pluggable SFP Footprint2.ROHS Compatible
3.Compatible to SFP+ MSA
copper SFP transceiverter SFP-T
OFSP-XXXX-XX
SFP+ Direct Attach Cables , 1m,3m,5m 7m 10m Reach
Features
Support for multi-gigabit data rates up to 10.5Gbps
Data rates backward compatible to 1Gbps
Support for 1x, 2x, 4x and 8x Fibre Channel data rates
Hot-pluggable SFP 20PIN footprint
I/O Connector designed for high speed differential signal applications
Improved Pluggable FormFactor(IPF) compliant for enhanced EMI/EMC performance
Low Power Consumption < 0.5W
Power Supply :+3.3V
Compatible to SFP+ MSA
Temperature Range: 0~ 70 °C
ROHS Compatible
Applications
High capacity I/O in Storage Area Networks, Network Attached Storage, and Storage Servers Switched fabric I/O such as ultra high bandwidth switches and routers
Data center cabling infrastructure
High density connections between networking equipment
Product Description
The SFP+ cable assemblies are high performance, cost effective I/O solutions for 10Gb Ethernet and 10G fibre Channel applications. SFP+ copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget. The high speed cable assemblies meet and exceed Gigabit Ethernet and Fibre Channel industry standard
requirements for performance and reliability..
Recommended Operating Conditions
Parameter Symbol Min Typical Max Unit
Storage Ambient Temperature -40 +85 °C
Operating Case Temperature Tc 0 +70 °C
Power Supply Voltage VCC3 3.14 3.3 3.47 V
Power Dissipation PD 0.5 W
10.5 Gpbs line speed, full duplex
Bit error rate: better than 10E-12
Hot-pluggable, industry-standard Small Form-Factor
Pluggable(SFP+) copper cable, available as 1m,3m or 5m.
Supply voltage: 3.3V
Power consumption(per end): max 0.5W
Ordering information
Part Number Product Description
GPP-C192-XXC SFP+ Direct Attach (10GSFP+Cu), 1m, 3m, 5m, 7m 10m 0ºC ~ +70ºC
Payment & Shipping Terms
Minimum Order Quantity: 1~2piece/pieces
Port:Shenzhen
Packaging Details: carton
Delivery Time: 5~7 days
Payment Terms:T/T ,L/C
Supply ability:1000 Piece/Pieces per week
Warranty:3 years
