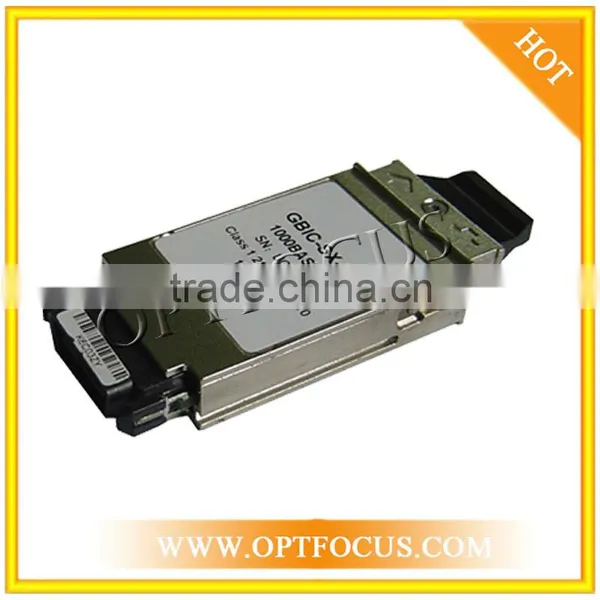

1.25G GBIC module dual fiber 40km

Specifications

1.25G GBIC module dual fiber 40KM
1.ROHS,CE
2.good compliant performent

GBIC Tramsceiver

Description

The GBIC transceiver is high performance, cost effective module supporting dual data-rate of 1.25Gbps/1.0625Gbps and from 20km transmission distance with SMF.

The transceiver consists of two sections: The transmitter section incorporates a FP laser. And the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA). All odules satisfy class I laser safety requirements.

The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is provided to indicate degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver.



Product Feature

l  Dual data-rate of 1.25Gbps/1.0625Gbps operation

l  1310nm FP laser and PIN photodetector for 20km transmission

l  Duplex SC optical interface

l  Standard serial ID information compatible with SFF-8053

l  +3.3V/5Vsingle power supply

l  RoHS Compliant

l  Operating case temperature:

l  Standard : 0 to +70°C





Standard Application



l  Switch to Switch interface



l  Switched backplane applications



l  Router/Server interface



l  Other optical transmission systems



Order Information

PART NO.	Data encapsulation	Data Rate(b/s)	Wavelength (nm)	Source	Distance	Temperature (c)	Connector	Others
OFSG-1512-120	GBIC	1.25G	1550	DFB+APD	120km	0~70	SC	ROHS
OFSG-1512-80	GBIC	1.25G	1550	DFB	80km	0~70	SC	ROHS
OFSG-1312-40	GBIC	1.25G	1310	DFB	40km	0~70	SC	ROHS
OFSG-1312-15	GBIC	1.25G	1310	FP	15km	0~70	SC	ROHS
OFSG-8512-02	GBIC	1.25G	850	VCSEL	500m	0~70	SC	ROHS
OFSGB-5412-80	GBIC BI-DI	1.25G	1550/1490	DFB	80km	0~70	SC	ROHS
OFSGB-4512-80	GBIC BI-DI	1.25G	1490/1550	DFB	80km	0~70	SC	ROHS
OFSGB-4312-40	GBIC BI-DI	1.25G	1490/1310	DFB	2km	0~70	SC	ROHS
OFSGB-3412-40	GBIC BI-DI	1.25G	1310/1490	DFB	40km	0~70	SC	ROHS
OFSGB-5312-40	GBIC BI-DI	1.25G	1550/1310	DFB	40km	0~70	SC	ROHS
OFSGB-3512-40	GBIC BI-DI	1.25G	1310/1550	DFB	40km	0~70	SC	ROHS
OFSGB-4312-20	GBIC BI-DI	1.25G	1490/1310	DFB	20km	0~70	SC	ROHS
OFSGB-3412-20	GBIC BI-DI	1.25G	1310/1490	FP	20km	0~70	SC	ROHS
OFSGB-5312-20	GBIC BI-DI	1.25G	1550/1310	DFB	20km	0~70	SC	ROHS
OFSGB-3512-20	GBIC BI-DI	1.25G	1310/1550	FP	20km	0~70	SC	ROHS
