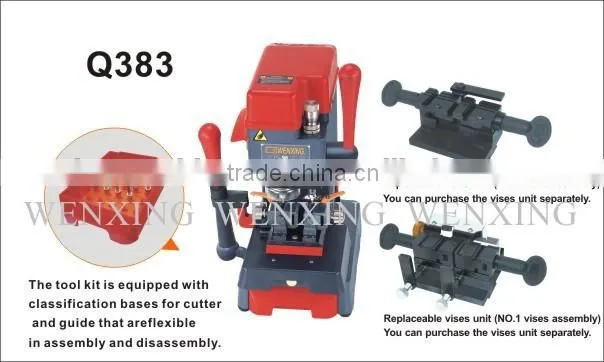

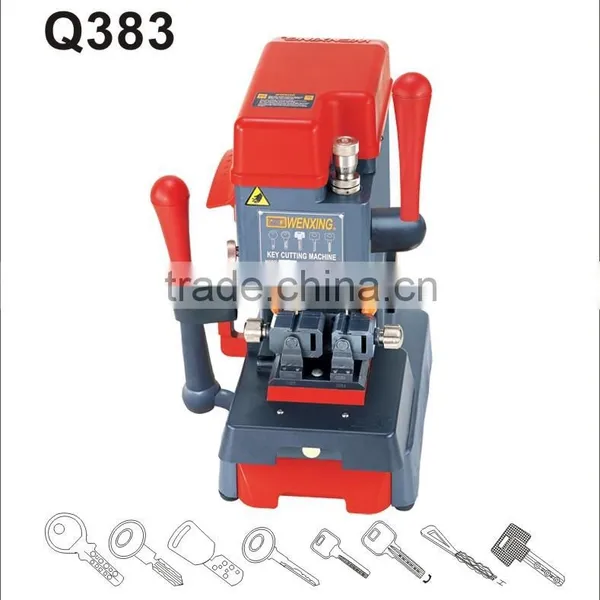

Help CenterUniversal Key Cutting Machine
Related Products
Features:
1) Equipped with guide vertical depth micro-adjustment device,this machine is multi-functional which is easy to operate and
adjust with high accuracy.We can also supply Model Q393 DC,12V.
2) The vise is tilting type and it can duplicate level concave,Mul-T lock concave,slanting concave(such as KESO and KABA keys),
I shaped and inside/out side wave shape keys,etc.Q383 is equipped with No.3 vises assembly .
3) It is multi-functional for the whole vises assembly can be replaced within 10 seconds. By adopting the No.1 vises assembly, it can duplicate cylindrical arc hole,horizontal concave,Mul-T lock concave and inside/outside wave shape keys,etc.While the
No.2 vise assembly,it can duplicate cylindrical concave,horizontal concave,Mul-T lock concave,and inside/outside wave shape keyse,etc.
Technical specifications:
1) Motor:
a) AC, available in various different voltages and frequencies, 180W
2) HSS cutter: No. 0042, No. 0043,No.0060Q,No.0060A,No.0060B, No. 0060, No. 0062,No.0090,No.0093,No.0051
3) HSS guide: No. 0072, No. 0073, No.0075,No. 0080, No. 0082 ,No.0080A, No.0080B, No.0080Q,No.0100,No.0103
4) Dimensions: 56 x 39.5 x 43.5cm
5) There is another color to choose from.
