Specifications

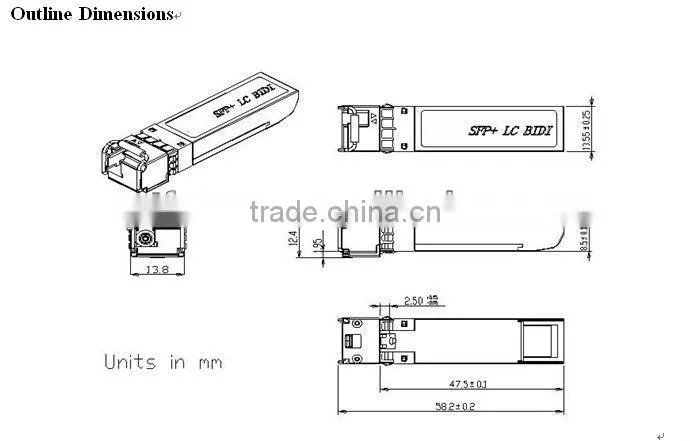

10G SFP+ BIDI transceiver 100km1.with DDM
pliant with Cisco,Juniper,HUAWEI...
PRODUCT FEATURES
lUp to 10.7Gbps Data Links
lSingle Mode LC Receptacle Bi-directional Transceiver
lUp to 20km transmission on SMF
lPower dissipation<1.2W
l1270nm DFB laser and 1330nm PIN receiver
l2-wire interface with integrated Digital Diagnostic monitoring
lEEPROM with Serial ID Functionality
lCompliant with FC_PI_4 REV 7.0
lCompliant with SFP+ MSA with duplex LC connector
lSingle + 3.3V Power Supply and LVTTL Logic
lOperating case temperature: -5 ºC ~+70ºC
APPLICATIONS
l10GBASE-BX at 10.3125 Gb/s
l10GBASE-BX at 9.953 Gb/s
l1000 Base-LX Ethernet
l8XFC at 8.5Gbps
l4XFC at 4.25Gpbs
l2XFC at 2.125Gpbs
l1xFC at 1.0625Gbps
STANDARD
lCompliant with SFF-8472 SFP+ MSA.
lCompliant with FC_PI_4 REV 7.0.
lCompliant to SFP+ SFF-8431 and SFF-8432.
lCompliant to 802.3ae 10GBASE-LR.
lRoHS Compliant.
PRODUCT SELECTION
OFSBP-2710G-10
PRODUCT DESCRIPTION
OFSBP-2710G-10 is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10.7Gbps, it designed to be compliant with SFF-8472 SFP+ MSA. The module data link up to10km in 9/125um single mode fiber.
The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
Note (1). Measured with SMF
Specification of Transmitter
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
Average Launched Power |
PO |
-6 |
- |
-1 |
dBm |
|
Average Launched Power(Laser Off) |
Poff |
- |
- |
-30 |
dBm |
Note (1) |
Optical Modulation Amplitude |
OMA |
-3 |
- |
- |
dBm |
Note (1) |
Center Wavelength Range |
λC |
1260 |
1270 |
1280 |
nm |
|
Side mode suppression ratio |
SMSR |
30 |
- |
- |
dB |
|
Spectrum Bandwidth(-20dB) |
σ |
- |
- |
1 |
nm |
|
Extinction Ratio |
ER |
3.5 |
|
- |
dB |
Note (2) |
Output Eye Mask |
Compliant with FC_PI_4 REV 7.0 |
|
Note (2) |
|||
Note (1).The optical power is launched into SMF
Note (2). Measured with RPBS 2^31-1 test pattern @10.3125Gbs
Specification of Receiver
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
Input Optical Wavelength |
λIN |
1320 |
1330 |
1340 |
nm |
|
Receiver Sensitivity in average |
PIN |
- |
- |
-15 |
dBm |
Note (1) |
Input Saturation Power (Overload) |
PSAT |
0.5 |
- |
- |
dBm |
Note (1) |
LOS -Assert Power |
PA |
-30 |
- |
- |
dBm |
|
LOS -Deassert Power |
PD |
- |
- |
-17 |
dBm |
|
LOS -Hysteresis |
PHys |
0.5 |
- |
4 |
dB |
|
Note (1). Measured with RPBS 2^31-1 test pattern @10.3125Gbs BER=<10^-12
