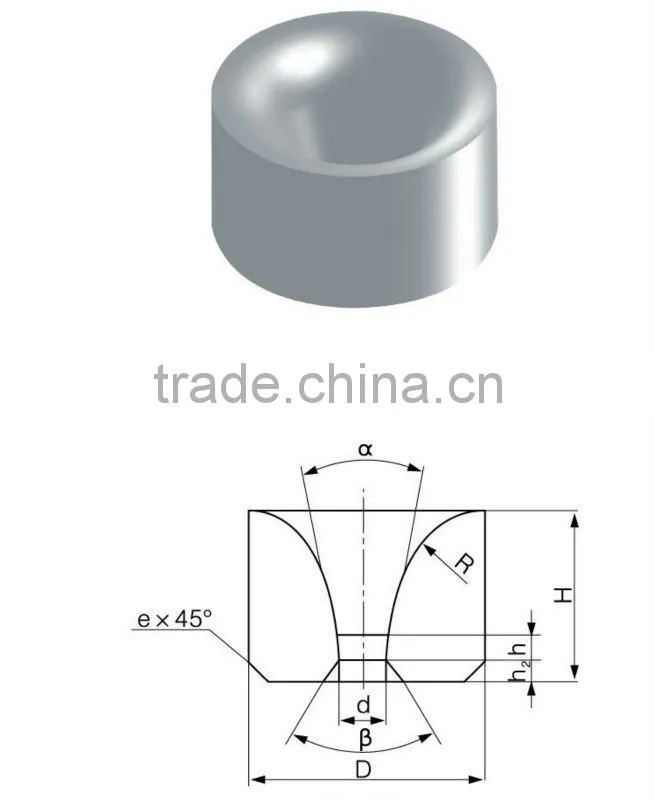

Help CenterCarbide Drawing Dies
Related Products
-
Manufacturer Supply All Kinds of Tungsten CarbideUS$ 43 - 77MOQ: 30 Kilograms -
Customized Tungsten Carbide Seal Ring, Carbide RingUS$ 22 - 50MOQ: 100 Pieces
-
Tungsten Carbide Sandblast NozzlesUS$ 1.8 - 6.5MOQ: 500 Pieces
-
Customized All Kinds of Tungsten Carbide MouldsUS$ 55 - 80MOQ: 30 Kilograms
-
Tungsten Carbide PunchUS$ 0.8 - 9MOQ: 500 Pieces
Specifications
1.With 17 years of tungsten carbide production experience2.Strong production capacity
3.OEM&ODM service
YG15/YG20/YG20C tungsten carbide die/moulds
1/ GENERAL INTRODUCTION:
Tungsten carbide cold heading die for cold punching and heading of screws and nuts.
High impact resistance ,Toughness,wear resistance,and quality consistency. You are encouraged to use our professional carbide grades for cold heading &punching die nibs. Power metallurgical Compacting dies and other industries.For stable performance and high-cost-effectiveness.They have been proved to be ideal in making non-ferrous metal , ferrous metal and their alloys.
Zhuzhou UKO Cemented Carbide Co.,Ltd. could supply various grades and sizes cemented carbide heading die to customer, we have most complete mould stocks, also we could make any sizes as per customer's requirements.
All of our heading dies are sintered by HIP furnace, and we used the excellent raw material, our heading dies was exported to Germany, Italy, Turkey, South east Asia and Japan, the qty of our heading die production is over 20 MT per month, and the quality if very competive.
2/Grade speicifications of Tungsten carbide heading dies :
Grade |
Density |
T.R.S MPa |
Hardness HRA |
Performance & application recommended |
GT40 |
13.6 |
3300 |
87.2 |
Very high toughness & very good wear resistance. Very good performance on difficult heading and forming dies cold extrusion &heading dies for bolts, nuts and similar difficult cold headed parts. Press tools for sheet metal applications. Cut-off knifes & quils for wire dia less than 8mm, dies for difficult extrusions. |
GT50 |
13.3 |
3200 |
85.0 |
Extra-ordinary high toughness & good wear resistance. Good strength at elevated temperature. ideally suited for tools which are subjected to impact loads, easily machinable. Very good performance on heading and forming dies, performing and finishing dies for cold forming of screws, rivet, bolt, nut and similar cold headed parts. Cold forming dies for cylindrical and taper roller for roller bearings. Cold forming dies for bearing balls. Dies for impact extrusion, quils& cutters for wire dia. More than 8mm. |
GT55 |
13.1 |
3100 |
84.3 |
