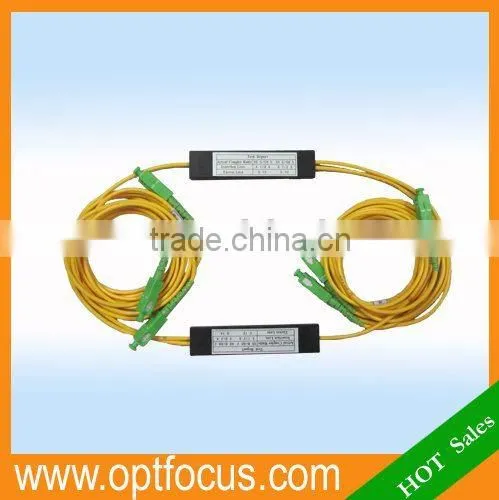

1X2 SM Dual Window Fiber Optic Coupler Splitter

Name: 1X2 SM Dual Window Fiber Optic Coupler Splitter
Brand: OPTFOCUS
SKU: 107911635

US$ 1 - 5 MOQ: 20 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OPTFOCUS

Model Number:

OFS-PLC-1X2

Shenzhen Optfocus Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OPTFOCUS

Model Number OFS-PLC-1X2

Specifications

1X2 sm dual window fiber optic coulper splitter
1.1*2
2.single mode
3. dual window

1X2 SM dual window fiber optic coupler splitter

Performance Specifications

Parameter		Specification
Coupling Ratio(%)		1~50
Directivity (dB)		≥55
Temperature Coefficient(Max.)(dB/°C)		0.002
Operating Temperature (°C)		-20~+70
Storage Temperature (°C)		-40~+85
Port Configuration		1X2 or 2X2
Package Dimension (mm)		A,B,C,D,M,G

Singlemode Wideband Coupler
Grade	P		A
Coupling Ratio (%)	50/50		50/50
Excess Loss (Typ.) (dB)	0.10		0.15
Max. Insertion Loss (dB)	3.40		3.50
PDL (dB)	0.10		0.15
Operating Wavelength (nm)	1310±40,1550±40,1480±40 or Custom Wavelength
Coupling Ratio/Insertion Loss Conversion Chart
Coupling Ratio	Insertion Loss
	P		A
40/60	4.4/2.5		4.5/2.6
30/70	5.7/1.8		5.8/1.8
20/80	7.6/1.15		7.7/1.2
10/90	11/0.63		11.2/0.69
05/95	14/0.36		14.2/0.42
02/98	17.6/0.25		17.7/0.31
01/99	21/0.20		21.2/0.26

ulper splitter Order Information

FBT-Type-Port-Wavelength-Coupling Ratio-Fiber Type-Package-Pigtail Type-

Pigtail Length-ConnectorType

Type	S=Coupler A=In-Line Attenuator W=WDM
Port	0101=1x1, 0102=1x2, ..., 0404=4x4, ..., 0132=1x32, 0232=2x32
Wavelength	98=980, 13=1310, 14=1490, 15=1550 1314=1310&1490, 1315=1310&&1550, 345=1310&1490&1550 85=850, 9815=980&1550, 8513=850&1310
Coupling Ratio (Attenuation or Stage)	01=1/99 or 1dB or 1 Stage, 02=2/98 or 2dB or 2 Stage, 03=3/97 or 3dB or 3 Stage,05=5/95 or 1dB, 10=10/90 or 10dB, 15=15/85 45=45/55 00=equal ratio, X=Others
Fiber Type	1=G652D, 2=G657A, 5=50/125, 6=62.5/125, X=Others
Package Dimension	B1, B2, ..., F, K
Pigtail Type	B=250µm Bare fiber, L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter
Pigtail Length	05--20=0.5--2.0m, 0=Adapter, X=Others
Connector Type	FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others
