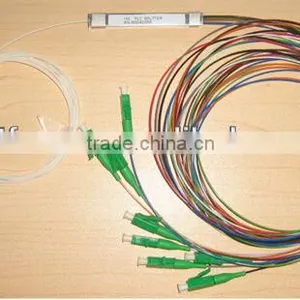

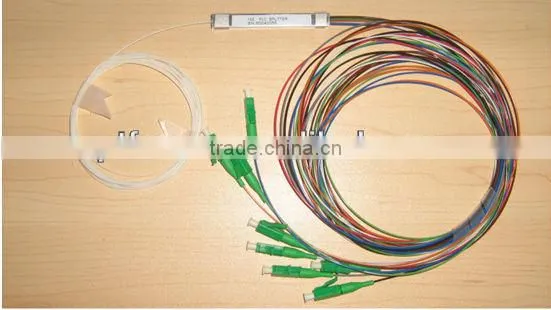

Help CenterSteel Mini Module Type ,SC/APC Connector FTTH PLC Splitter
Related Products
-
Steel Tube PLC Splitter 2X8NegotiableMOQ: 1 Piece -
Low PDL Splitters, Fiber Optic PLC Splitters 2x32NegotiableMOQ: 1 Piece
-
High Return Loss Splitters, Fiber Optic PLC Splitters 2x32NegotiableMOQ: 1 Piece
-
1 * 32 Fiber Optic PLC Splitter With SC/APC Connector for FTTH, ODN Box Module, Promotion PriceNegotiableMOQ: 1 Piece
-
SC /UPC 16 Channels Optical Demux Mode With ABS BoxNegotiableMOQ: 5 Pieces
Specifications
SpecificationsFiber Optic PLC Splitter Low excess loss
Environmentally stable&reliable
PLC splitter meet Rohs and ISO9001
Specifications
low insertion loss,
low polarization dependent loss,
high port uniformity.
1*N,2*N PLC splitter
optic PLC splitter
Fiber PLC Splitter
bare fiber splitter mini module PLC spiltter with fan-out plc splitter box module splitter rack-mountable plc splitter
LGX box plc splitter wall box splitter FOSC plc splitter plc-splitter-tray
Description:
PLC splitters are based on the Planar
Waveguide Technology. They provide a cost
effective and space saving networking
solution. They are key components in FTTX
networks and are responsible to distribute
the signal from central office to numbers of
premises. They have very wide range of
operating wavelength from 1260nm to
1620nm. With it’s compact size, these
splitters can be utilized in in-ground and
aerial pedestals as well as rack mount
systems.
Features:
Low Insertion loss
Low PDL
High Return Loss
Uniform Power Splitting
Compact Design
Wide Operating Wavelength
Wide Operating Temperature
Excellent Environmental & Mechanial Stability
Qualified Under Telcordia GR-1221 and GR-1209
Applications:
FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)
CATV systems
Test Equipments
Performance Specifications:
Item |
Parameter |
|||||
| Product Type | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 |
Insertion Loss(dB) |
3.8 |
7.5 |
10.5 |
13.5 |
16.5 |
21 |
Uniformity(dB) |
0.5 |
0.5 |
0.5 |
1 |
1 |
1.5 |
Package Dimensions(W*H*L)(mm) |
4*4*40 |
4*7*50 |
4*12*60 |
|||
| Max. PDL(dB) | 0.2 | |||||
Max. TDL(dB) |
0.5 |
|||||
Min. Return Loss(dB) |
50 |
|||||
Min. Derectivity(dB) |
55 |
|||||
Wavelength Dependent Loss(dB) |
0.8 |
|||||
Operating Temperature(°C) |
(-40°C~85°C) |
|||||
Storage Temperature(°C) |
(-40°C~85°C) |
|||||
Operating Wavelength(nm) |
1260~1650 |
|||||
Fiber Type |
SMF-28e XB |
|||||
In/Out Connector |
FC/UPC,SC/UPC,LC/UPC etc |
|||||
