Specifications
1.LowInsertionloss2.Low PDL
3. HighReturnLoss
4. UniformPowerSplitting
5.CE,ROHS certification
Key Features:
- Low Insertion loss
- Low PDL
- High Return Loss
- Uniform Power Splitting
- Compact Design
- Wide Operating Wavelength
- Wide Operating Temperature
- Excellent Environmental & Mechanical Stability
- Qualified Under Telcordia GR-1221 and GR-1209
Apllications:
- FTTX (FTTP, FTTH, FTTN, FTTC)
- Passive Optical Networks (PON)
- Local Area Networks (LAN)
- TCATV systems
- Test Equipments
Optical Specifications:
Parameter | Unit | Specification (P Grade) | ||||||||||
Operation Wavelength | nm | 1260~1650 | ||||||||||
Channel Number | 1X2 | 1x3 | 1X4 | 1x6 | 1X8 | 1x12 | 1X16 | 1x24 | 1X32 | 1X64 | 1x128 | |
Insertion Loss (Max.) | dB | 4.3 | 6.2 | 7.4 | 9.8 | 10.7 | 12.5 | 13.9 | 16.5 | 17.2 | 21.5 | 25.5 |
Uniformity (Max.) | dB | 0.5 | 0.6 | 0.8 | 0.8 | 1.0 | 1.0 | 1.4 | 1.5 | 1.6 | 2.0 | 2.6 |
Polarization Dependent Loss | dB | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.8 |
Return Loss | dB | ≥50 | ||||||||||
Directivity | dB | ≥50 | ||||||||||
Note: All the data above does not include connectors.
UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB.
Parameter | Unit | Specification (P Grade) | ||||||
Operation Wavelength | nm | 1260~1650 | ||||||
Channel Number | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 | 2x128 | |
Insertion Loss (Max.) | dB | 4.3 | 7.6 | 11.0 | 14.8 | 17.9 | 21.5 | 25.8 |
Uniformity (Max.) | dB | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | 3.0 |
Polarization Dependent Loss | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 1.0 |
Return Loss | dB | ≥50 | ||||||
Directivity | dB | ≥50 | ||||||
Note: All the data above does not include connectors.
UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB.
Environmental Conditions:
Operating Temperature | °C | -40~+85 |
|
Storage Temperature | °C | -40~+85 |
|
Operating Humidity | %RH | ≤93 |
|
Storage Humidity | %RH | ≤93 |
|

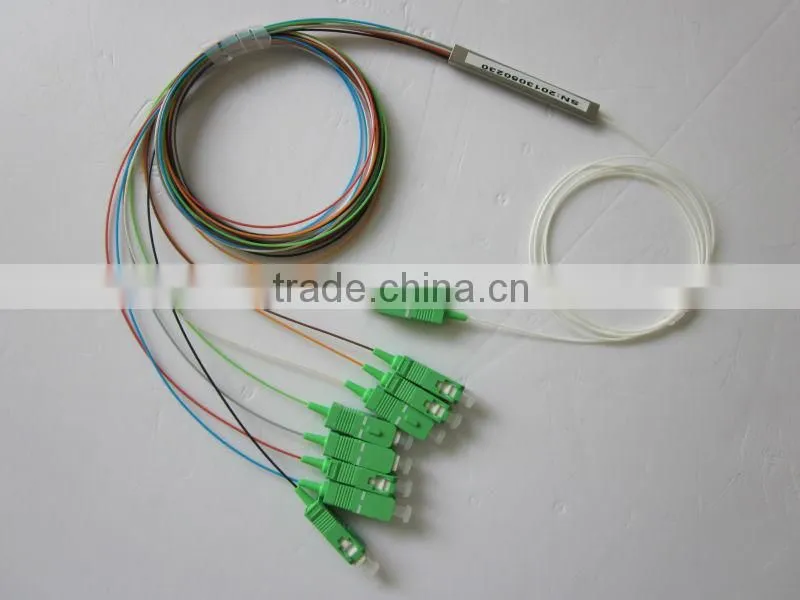

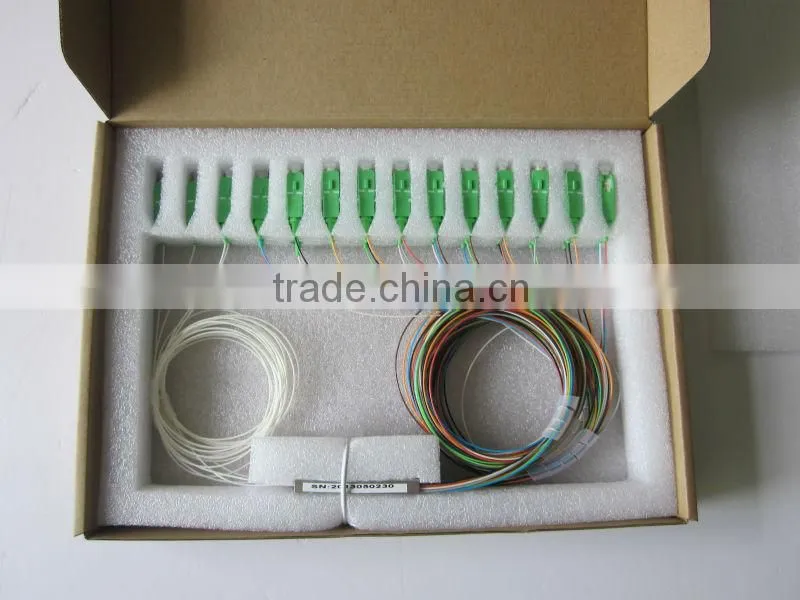

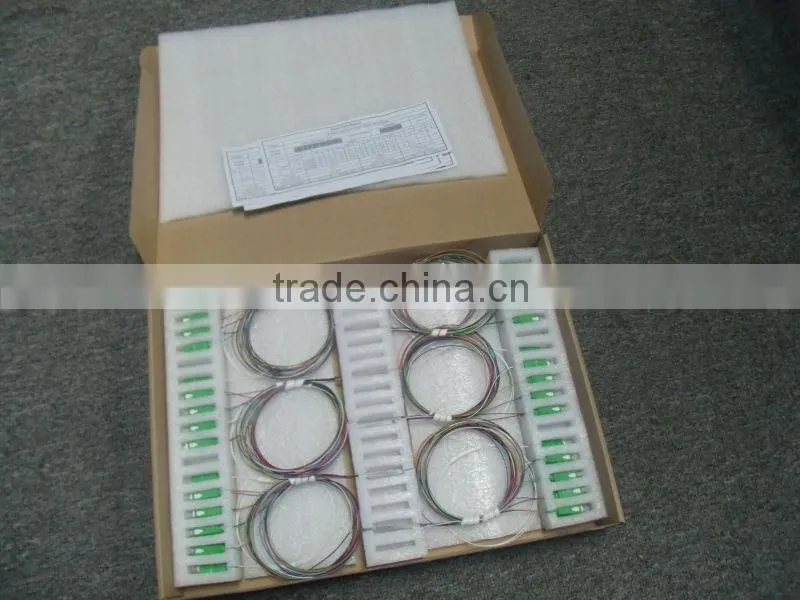

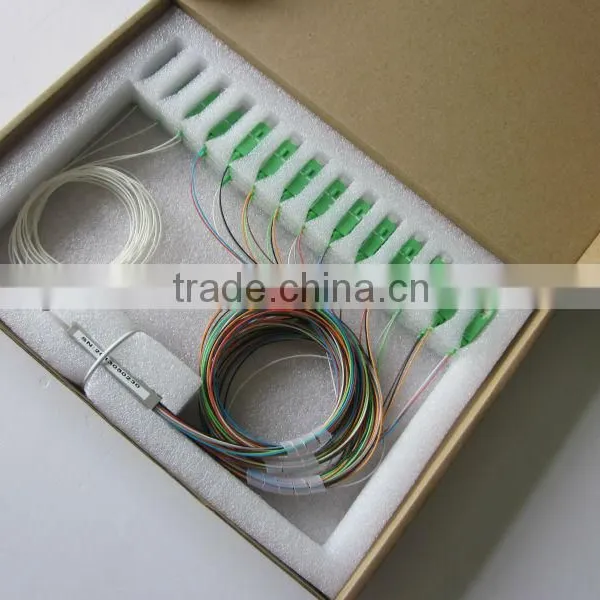

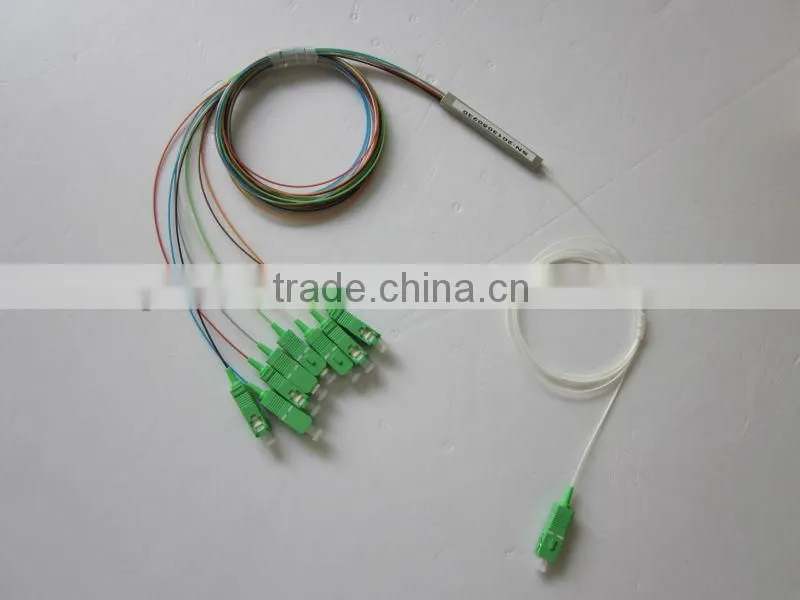

Photo:
19’ RACK TYPE MINI MODULE TYPE ABS PLASTIC
