Help CenterFS-6200TR 1-CH Active VGA Video Transmitter/receiver
Related Products
Specifications
High definition VGA Twisted Pair video transmitter and receiver FS-6200AT/AR is a high quality VGA video extenderFeatures of VGA video transmitter/receiver
•1-CH Active VGA video transmitter/receiver via UTPcat5/5e/6
• Powered via both USB(transmitter) and 5VDC (receiver)
• Transmission distance up to 656ft (200m) used in pairs
• High video resolution up to 1600 x 1200 pixels • Multiplatform support: PC, Mac, Sun, and Linux,Windows 2000,Windows XP,Vista systems
• Support VGA, SVGA, XGA, SXGA, WXGA ,UXGA and multi-sync monitors
• Ground connection available
Benefits of VGA video transmitter/receiver VGA video transmitter/receiver
• Eliminates costly and bulky VGA cable
• Ultra compact size for installation versatility.
• Carry Video from Desktop or Laptop PC or other VGA sources to remote
displays or distribution locations utilizing cost effective CAT5 cable
• Allows a simple and cost effective solution for meeting rooms,
classrooms, digital signage and other presentations
Overview of VGA video transmitter/receiver
High definition VGA Twisted Pair video transmitter and receiver FS-6200AT/AR is a high quality VGA video extender developed by FOLKSAFE using the most advanced technology. Working in pairs, they extend video signal of VGA, SVGA, XGA, SXGA, WXGA, UXGA from PC side to display side up to 656ft (200m) over UTPcat5/5e/6 cables. With super interference rejection and high-end TVS for surge protection, FS-6200AT/AR is able to work in various environment. The picture quality is sharp; there's no ghosting and no tailing.
Applications of VGA video transmitter/receiver
• Security monitoring system
• Video and Audio Conferencing Systems
• LCD, plasma flat-panel multi-media advertising system
• Large screen LED curtain display system
• Large-scale demonstration system for projection equipment
• Medical Monitoring Display System
• Banks, securities, airports and financial information display system
• Multimedia Network Teaching System
• Industrial automation control System
• Remote Network Server Monitoring
• Medium-sized central control system
•Military exercises command system
Technical Specifications of VGA video transmitter/receiver
Model |
FS-6200AT |
FS-6200AR |
||
Product Name |
Active VGA Video Transmitter |
Active VGA Video Receiver |
||
Function |
Transmit Signal |
1 port input |
1 port output |
|
|
Transmission Distance |
Max up to 656ft (200m) used in pairs |
||
Power |
Powered via |
5VDC power adaptor |
USB |
|
|
Power Consumption |
<1W |
||
Video |
Input / Output Connector |
1* 15pin VGA male (input) |
1* 15pin VGA female (output) |
|
|
Impedance |
75Ω |
||
|
UTP Cable (connector) |
1* RJ-45 |
||
|
Impedance |
75Ω |
||
|
Signal Transmission Band |
>100MHz(-3db) |
||
|
Linear Distortion |
<3% |
||
|
R,G,B Signal Distortion |
<2ns |
||
|
Common-mode Interference Rejection |
65db(typical) |
||
|
Synchronous signal |
0-5V,TTL PWL |
||
|
Synchronous signal band |
1K-200KHz |
||
|
Synchronous Signal Delay |
<15ns |
||
|
DDC2 |
Virtual DDC |
||
Indicator |
Power LED |
Red |
||
|
Video LED |
Green |
||
Adjustment |
Brightness and contrast is adjustable via knob of FS-6200AR |
|||
Ground Connection |
YES |
|||
Protection |
Lightning Protection |
15KV IEC61000-4-5 1995(GB/T 17626.5)1000V,10/700us IEC61000-4-51995(GB/T 17626.5) |
||
|
Anti-static Protection |
Contact Discharge:6KV Air Discharge:8KV IEC61000-4-5 1995(GB/T 17626.5) IEC61000-4-2 |
||
Stability |
MTBF |
>6000h |
||
Mechanical |
Dimensions(L*W*H) |
73*57*26mm |
||
|
Housing |
ABS |
||
|
Body Color |
Black |
||
|
Net Weight |
70g |
||
Accessories |
Power Adaptor (1pc): 5VDC output, 100-240V input, 600mA |
|||
|
VGA Cable (1pc), USB Cable(1pc), screwdriver (1pc) |
|||
Environmental |
Operating Temperature |
-20℃-60℃ |
||
|
Relative Humidity |
0-95%(non-condensing) |
||
|
Storage Temperature |
-30º ~ 80º C |
||
Application Diagram of VGA video transmitter/receiver

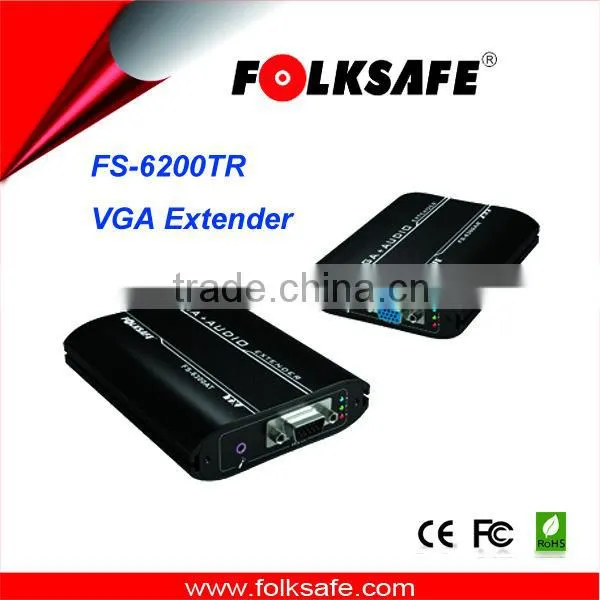

Picture of VGA video transmitter/receiver
Transportation of VGA video transmitter/receiver
Company and Factory show
Certification of VGA video transmitter/receiver
Exhibition of VGA video transmitter/receiver
