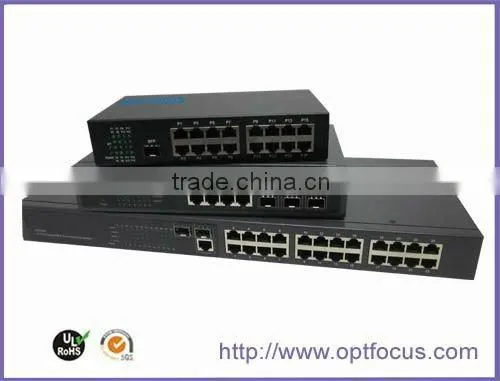

OFS-GSFT24F2 Pure Gigabit Ethernet Switch
Product Description
OFS-GSFT24F2 is unmanaged pure gigabit ethernet switch, designed specially for work groups, internet bars, schools, small and medium enterprises, upgrade the local area network to gigabit, and meet their demand of high bandwidth. OFS-GSFT24F2 provides 24 10/100/1000M auto-negotiation RJ45 port, 2 gigabit SFP (mini GBIC) port ( with port 1 and port 2 multiplexing), all ports support Non-blocking full wire speed switching and Auto-MDI/MDIX, 19 inch rack-mountable appearance design.
Good Compatibility
24 10/100/1000M auto-negotiation port, can seamlessly integrated the 10Mbps, 100Mbps or 1000Mbps network equipments that in the same network.
Extensible and Flexible
2 gigabit SFP (mini GBIC) port (with port 1 and port 2 Multiplexing), you can choose the interface type as needed. Gigabit RJ45 ports, directly use of existing copper lines as transmission medium, it can save the high cost of adding optical media; SFP (mini GBIC) ports, through the short, medium and long transmission distance of optical fiber, then meet your needs of transmission distance. When choose the SFP port and corresponding multiplex port at the same time, SFP port will be high priority.
Excellent Performance
All 24 10/100/1000M RJ45 ports are able to automatically adapt full-duplex or half-duplex mode, every port can reach the highest bi-directional transmission rate 2000Mbps, increase bandwidth and reduce access latency for the client connection, really meet your demands that share and transfer high-bandwidth multimedia files on the network, games or other high-speed applications.
MAC address self-learning function, can ensure data transmission error-free;
Store-and-forward switching mode, can prevent the damaged packets to spread in the network;
Flow control function, can prevent instantaneous large amounts of data to impact on the network, and protect your network stable and efficient operation.
plug and play
OFS-GSFT24F2 is unmanaged switch, do not require any settings when use it, it can work normally when power on.
All ports support Auto-MDI/MDIX, you don’t have to worry about the cable type any more.
Easy Maintenance
The LED indicator lights in the front panel of switch can dynamic display the status of equipment connection and running, and provides simple fault detection method, easy to maintain.
Product Features
- Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z standards
- All ports support full duplex 802.3x flow control and half-duplex back pressure Flow Control
- 24 10/100/1000M auto-negotiation RJ45 ports, 2 gigabit SFP(mini GBIC) ports
- All ports support half / full duplex mode auto-adaptation
- Using store and forward switch mode
- Support the MAC address self-learning
- LED indicators light dynamic display the status of equipment and provide a simple troubleshooting
- 19 inch standard rack-mountable steel case
