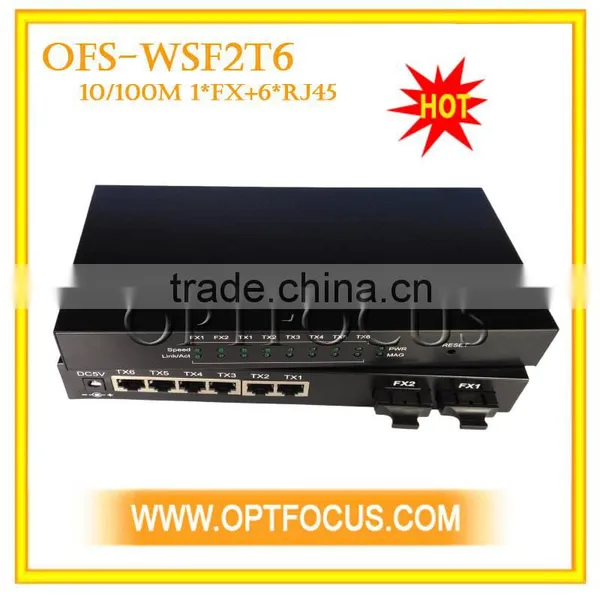

2Port 100BASE-Fx + 6Port 10/100BASE-Tx DF SM 1310nm 2KM SC WEB Management Fiber Switch

Specifications

                                                          OFS-SF2T6 Series

8 ports Gigabit Ethernet Optical Fiber Switch

There are two 100M Fiber Ports and Six 10/100M UTP Ports. The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC from USA and high quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet as Fiber Repeaters or Ethernet single / multimode fiber converters, and other special requirements of the environment.

Main features

It can convert Optical-Electric Ethernet signals between 10/100M UTP ports (TX) and 100M optical fiber interfaces (FX).  The conversion of optical signals can be carried out between multi/multimode optical fiber, between single/multimode optical fiber or between single/singlemode optical fiber.

UTP port supports MDI / MDI-X auto crossover

Broadcast storm protection

Supporting the max 1916 bytes frame

Technical Specifications

Operating standards:  IEEE802.3u 100Base-TX and 100Base-FX

Connector:  UTP: RJ-45,10/100Mbps;  Fiber: ST/SC/FC,100Mbps (Full Duplex)

Cable

UTP cable: Cat. 5 (the max distance up to 100m)

Fiber (multimode):  50/125, 62.5/125μm (the max distance up to 2km)

Fiber (singlemode):  8.3/125, 8.7/125, 9/125, 10/125μm (the max distance up to 100km)

Flow control

Full Duplex: IEEE802.3x flow control

Half Duplex: bake pressure flow control

Power supply: AC110 ~ 240V

Environment temperature:0 ~ +50°C

Storage temperature:::-20 ~ +70°C

Humidity::5% ~ 90%

Dimensions:180 × 45 × 143mm
