10/100M Bandwidth PD Splitter ,Supports IEEE802.3af standard
Overviews:
FS-PD1001-E10 is a kind of PD Splitter (also called POE Splitter), supports IEEE802.3af standard; supplies power and transmits data to devices which do not support POE power supply (such as IP camera); The product uses the transformer for isolation design, which gives you more stable, more secure and Well-protects the powered products ,Bandwidth is 10/100M. Mid-Span (No.4&5and 7&8 cables supply power) and End-Span (No.1&2 and 3&6 cables supply power) connections are well supported. Output voltage is 12V, maximum current is 1.08A. Some HD digital cameras do not have POE module which leads to the inconvenience and difficulty on installation. However, this device can solve the problem of wiring. Connect POE switch with PD Splitter, people can realize the power supply and data transmission of IP camera directly and timely.

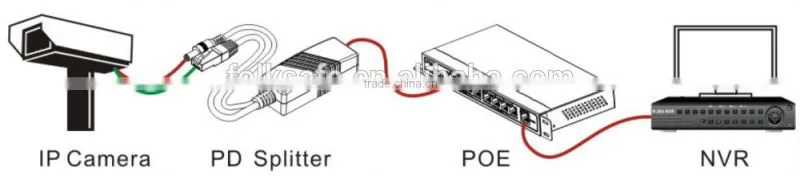

Wiring Diagram:
