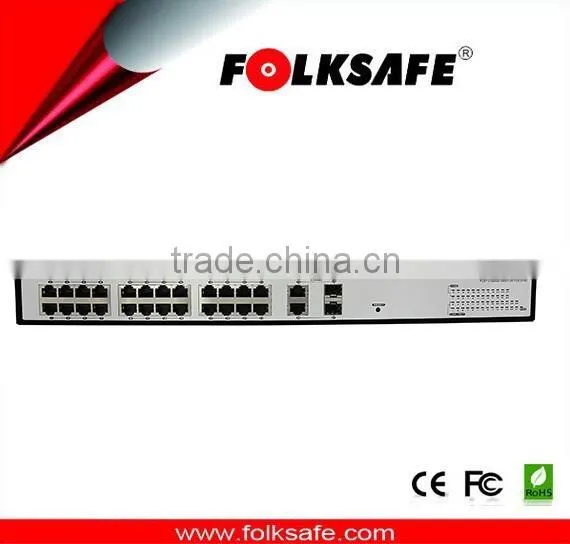

Vlan PoE switch provides 24 PoE plus ports and 2 uplink giga port made in professional CCTV transmission products manufacturer
Feature
24-Port 10/100Mbps IEEE 802.3af/802.3at PoE Switch
•24 Port supports 53VDC power to PoE powered devices
•2-COMBO uplink port : 1000Mbps uplink RJ45 or 1000Base-X SFP optional fiber port for optional
•Complies with IEEE 802.3af / 802.3at Power over Ethernet End-Span PSE
•420-watt PoE budget
•PoE data / power transmission distance up to 100m
•Built-in power supply. Power input range: AC96V~264V
•Support Jombo Fram up to 10K length
•Lightning proof level : 6 KV
•Excellent anti-thunder, anti-static and anti-interference ability
Specification
Support MAC address table : 8K
Working temperature : -10℃-55℃
Storage temperature : -40℃-70℃
Working Humidity : 0-95% (Non-condensing)
Products Panel Figure
1. PoE Port
2. Gigabit Uplink RJ45 Port
3. Gigabit Uplink SFP Port
4. Reset
5. PoE Indicator
6. Link/Act Indicator
7. Power Indicator
1. Input: AC 96~264V
2. Fuse
3. Power Switch
4. Warning
5. Ground Connection
Packing List
Before installation, please check the following equipment and accessories, if there are any missing, please contact with your supplier.
1) 1 set of FS-S1024EP-2C
2) 1 power cable
3) 1 user manual
4) 2 set of rack-mounting ears
