Specifications
Dome Shrinkable Seal Splitter Splice Closure1.IP safety rate is IP68
uld be installed PLC splitter
3.Shrinkable seal
Dome Shrinkable Seal Splitter Splice Closure
OFS-FTH-JS5
OFS-FTH-JS5 type cable connector box of cap type series of a. In the optical fiber transmission process, the products are through connection and differences in the function, and the male mention cable joint connection protection; Suitable for all kinds of different diameter of cable through and differences in; Can be used in overhead, hold pole, wall and buried installation; Product good seal performance, installation simple operation, wide range, it is the best choice of the optical fiber connection.
2. Product description
IP protection level can reach IP68;
Can be installed 1 x 32PLC shunt and 2 x 32 for PLC shunt;
With four small round into the cable hole and a large oval into line hole;
Joint box shell by vulcanized rubber for seal;
Cable in and out of holes are hot shrinkage seal
3. Characteristics
• can be convenient to increase or decrease the size according to the capacity of the melt flange
quantity
• three Settings prevent cable is external pulled off
• molten flange space is big, easy to maintain and storage of optical fiber
Can, in - 40°C to + 65 °C temperature range to use
Easy to repeat, open, no tools are required, waterproof, prevent gas leakage, flame retardant
• set vertical and horizontal design characteristics
• SGS ROHS testing the authentication
• suitable for aerial, buried, pipe use
4.Product parameters
Item |
Dimension(mm) |
In/out ports
|
Max. cable diameter(mm) |
Max. capacity per tray |
Disc number
|
Max capacity(bunchy fiber) |
Seal method |
OFS-FTH-JS5 |
Φ190×445 |
5 |
4 of Φ16 |
24cores |
1-4 |
96cores |
Heat-shrink seal
|
5. Main components
no. |
Name of components |
quantity |
usage |
remarks |
1 |
FOSC Cover |
1 piece |
Comprehensive protection joint |
|
2 |
Fuse fiber disc |
According to the request |
Fixed, save fiber and protect optical fiber hot melt pipe
|
|
6 |
base |
1 unit |
Fixed inside and outside structure |
|
7 |
Plastic hoop |
1 set |
Fixed base and shell |
|
8 |
Type O sealing ring |
1 set |
Used to seal base and shell seal |
|
Optional accessories: valve,earthing device,optical splitter,adapter,pigtail,wire jumper
Accessories: specification,Cable protection heat shrinkable tube,fiber heat shrinkable,Buffer
tube,earthing wire,nylon tie,sand paper,Differences card,labeling paper,
desiccant,Tin foil,insulating tape
BOX DIMENSION:190mm*445mm.

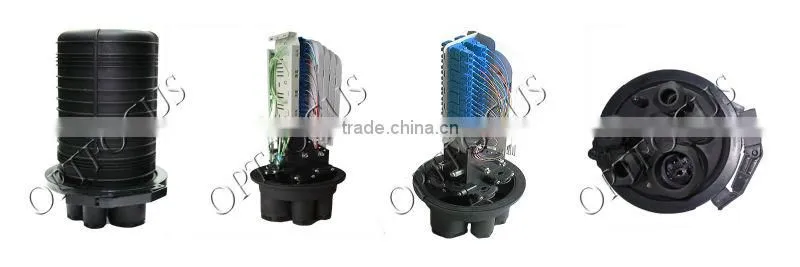

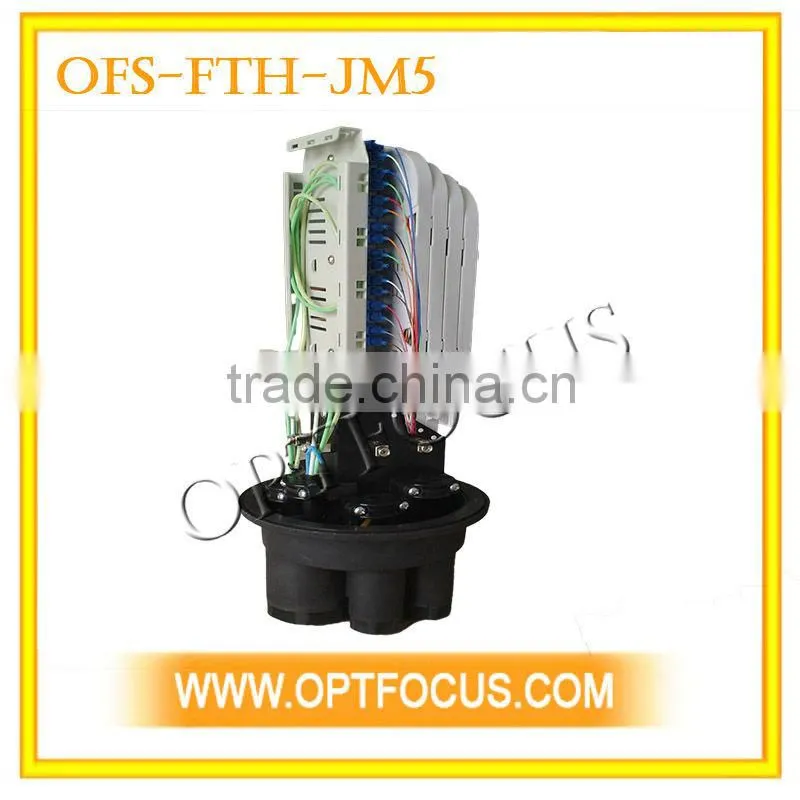

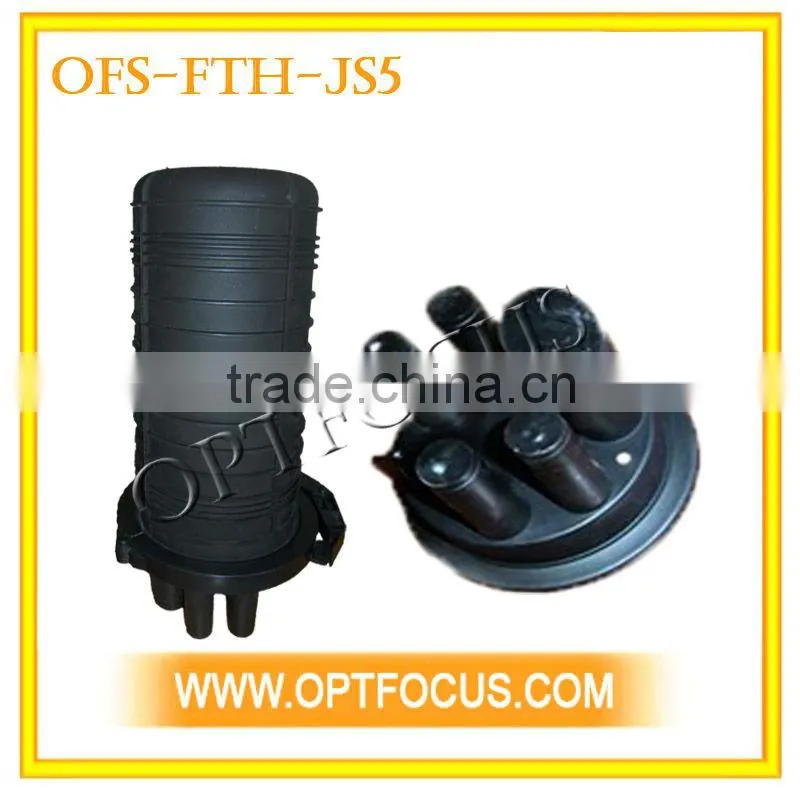

Product pictures
1. Cover; 2. Fiber splice tray; 3. Sealing ring; 4. Plastic hoop; 5. Base; 6. Earthling device
