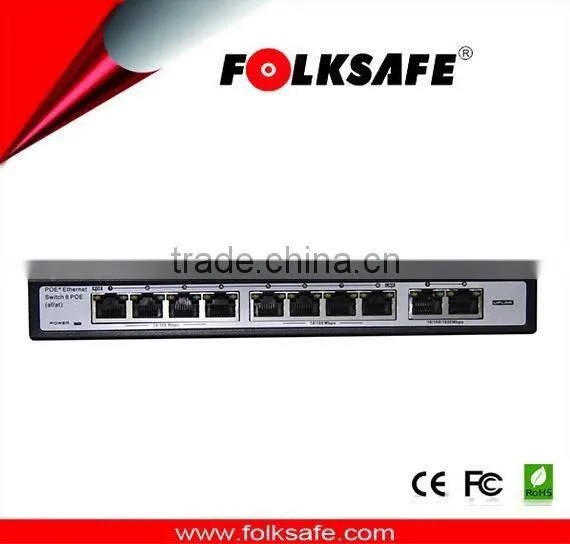

IP products network switch with PoE for IP camera and PoE camera
Feature
8 +2 10/100Mbps IEEE 802.3af/802.3at PoE Switch
•4 Port supports 48V-56VDC power to PoE powered devices
•Extra 2 Port 10/100Mbps UPLINK RJ45 up to 100m
•Complies with IEEE 802.3af / 802.3at Power over Ethernet End-Span PSE
•120-watt PoE budget
•PoE data / power transmission distance up to 100m
•Port based VLAN for Enhanced Security
•PoE data & power transmission distance up to 250m while VLAN starts
•Lightning proof level : 6 KV
•Excellent anti-thunder, anti-static and anti-interference ability
Specification
Support MAC address (1 K )self-learning
Working temperature : -10℃-55℃
Storage temperature : -40℃-70℃
Working Humidity : 10%-90% (Non-condensing)
Products Panel Figure
1. Power Indicator
2. ACT/LINK Indicator
3. PoE port
4. PoE Indicator
5. Uplink port
6. Uplink Indicator
1. Reset
2. Reset Indicator
3. VLAN Indicator
4. VLAN
5. Ground connection
6. DC 48~56V
Application Diagram
Packing List
Before installation, please check the following equipment and accessories, if there are any missing, please contact with your supplier.
1) 1 set of FS-S1008EP-2E
2) 1 power adapter
3) 1 user manual
4) warranty card
Transportation
Certification
Exhibition
