Help CenterFS-7001TX 1-CH Ethernet and Power Over Coax Cable
Related Products
-
1-CH Passive EOC IP Extender Over Coax, Wireless Video BalunNegotiableMOQ: 50 Pieces -
1-CH IP Extender Over Coax CableUS$ 1 - 10MOQ: 500 Pieces
-
1-CH IP Extender Over Coax Transmitter, Folksafe FS-7001TXNegotiableMOQ: 50 Pieces
-
1-CH Ethernet and Power Over Coax Receiver, Folksafe FS-7001RXNegotiableMOQ: 50 Pieces
-
1-CH Passive IP Extender Over Coax, Folksafe FS-7001PUS$ 1 - 10MOQ: 50 Pairs
Specifications
Transmission distance: max2000m(RG-6/U)Support for Auto MDI/MDIX Function
Built-in Surge Protection
max24w power for camera
Features of ip camera transmitter
1-CH Ethernet and power over Coaxial Cable Transmitter
• Transmit IP camera signal over existing coaxial cable
• Transmission distance max up to 2000m(RG-6/U)
• Support for Auto MDI/MDIX Function
• Built-in Surge Protection
• High quality and performance
• Complies with IEEE 802.3,IEEE 802.3u and IEEE 802.3X standards
Overview of ip camera transmitter
Ethernet signal and power transmitter FS-E7001TX can transmit high speed Ethernet signal and power via coaxial cable. Its maximum transmission distance for Ethernet signal is 2000 meters and 500 meters for power. By adopting advanced OFDM technology to process the data, FS-E7001TX has high capacity of anti-jamming in real operating environment and its physical broadband can up to 200Mbps. With built-in multi-stage surge and lightning protection design, FS-E7001TX avoids devices from lightning damage. This product can be widely used in fields such as network expanding system, network security system, network information distribution system, network upgrading & expanding system, railway and urban transportation, metallurgy and mining, field operations etc.
Applications of ip camera transmitter
• Security Monitoring System
• Multimedia Network Teaching System
• Medical Monitoring Display System
• Industrial Automation Control System
• Banking, securities, financial information display system
• Remote Network Server Monitoring
• Department Store Security
• Casino Security
• Hospitals, Airports and banks
• School Campuses

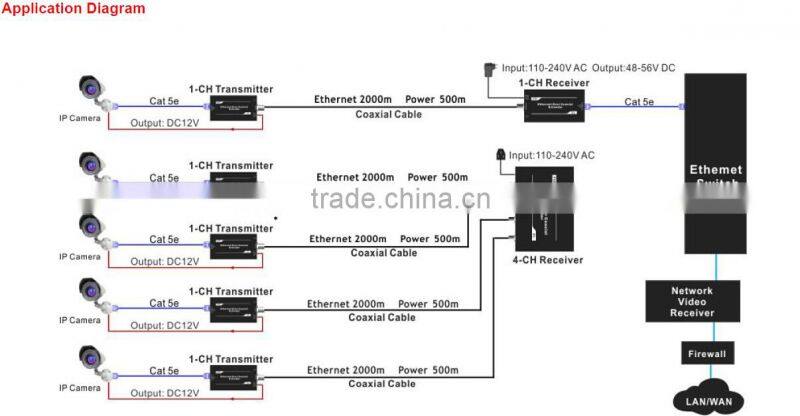

Installation:
1.Connect FS-E7001TX remote LAN port to network device RJ45 output; Connect 12VDC power output port with network device power interface; Fix BNC connector on both end of coaxial cable and connect one end with FS-E7001TX BNC interface.
2. Connect FS-E7001RX LAN port to network device RJ45 input; connect the other end of coaxial cable to FS-E7001RX BNC interface; Plug 48VDC power into the power interface of the transmitter. Check and ensure all connections are right, then connect power supply.
3. With internet connected, device tries connection automatically. Link indicator (yellow light) turns on and indicates coaxial cable is well connected; green light quick shining means internet signal transmission is in normal.
Technical specifications of ip camera transmitter
Description |
Ethernet & power coaxial transmitter |
|
Model |
Transmitter |
|
Power supply |
Power adapter |
Input:100-240VAC Output:48VDC/1.5A |
No Load Consumption |
1.8W(max) |
|
RJ45 interface and specification |
Ethernet Interface |
RJ45 Interface |
transmitting distance |
100m(max) |
|
Standards |
IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX |
|
Physical speed |
200Mbps(max) |
|
Coaxial cable interface and specification |
Coaxial cable interface |
BNC connector |
characteristic impedance |
75 Ohm |
|
Maximum Distance |
2000m |
|
Transmission rates |
Distance |
Broadband |
300m |
91Mbps |
|
500m |
86Mbps |
|
800m |
82Mbps |
|
2000m |
35Mbps |
|
|
State Indicators |
Green Light |
Coaxial cable connecting indicator |
Red Light |
Internet signal running indicator |
|
Lightning protection grade |
transmission ports |
Differential Mode:2KV Common Mode:4KV Execution standard: IEC61000-4-5 |
Device |
1a contact discharge 3 grade 1b aerial discharge 3 grade Executive Standard: IEC61000-4-2 |
|
Working Circumstance |
Working Temperature |
0~55°C |
Storing Temperature |
-25°C~85°C |
|
Dampness(no condensing) |
0~95% |
|
Mechanical |
Size |
103*54*26mm |

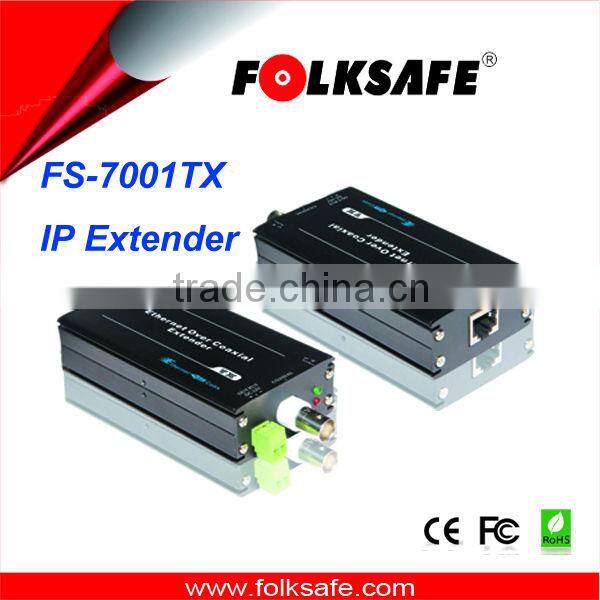

Product Picture of ip camera transmitter
Transportation of ip camera transmitter
Product certification of ip camera transmitter
Exhibition of ip camera transmitter
