Help Center24 Cores Indoor Type Wall Amount Fiber Optical Distribution Frame
Related Products
-
48 Cores Indoor Type Wall Amount Fiber Optical Distribution FrameUS$ 1 - 29MOQ: 1 Piece -
48 Cores Indoor Type Wall Amount Fiber Optical Distribution FrameUS$ 1 - 29MOQ: 1 Piece
-
48 Cores Indoor Type Wall Amount Fiber Optical Distribution FrameUS$ 1 - 29MOQ: 1 Piece
-
96 Cores Oudoor Wall-mount Fiber Optic Distribution Frame(ODF)NegotiableMOQ: 1 Piece
-
72 Cores Oudoor Wall-mount Fiber Optic Distribution Frame(ODF)NegotiableMOQ: 1 Piece
Specifications

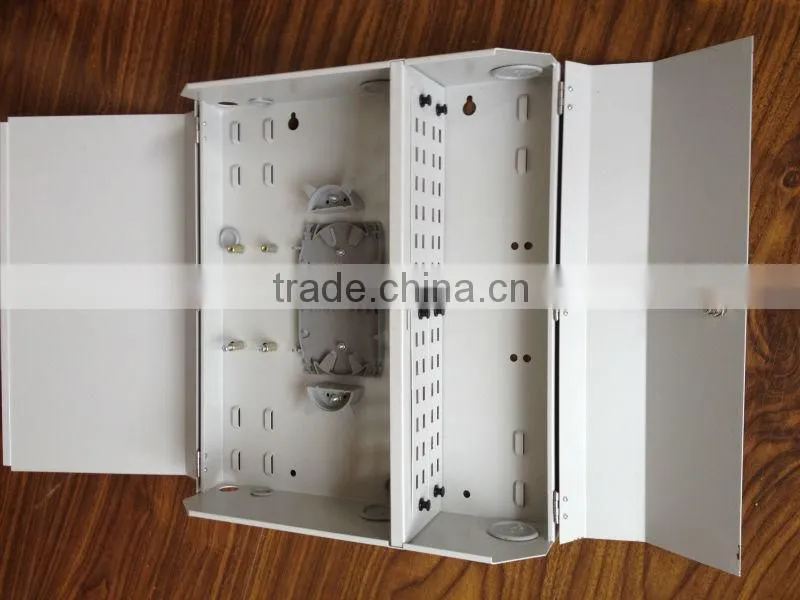

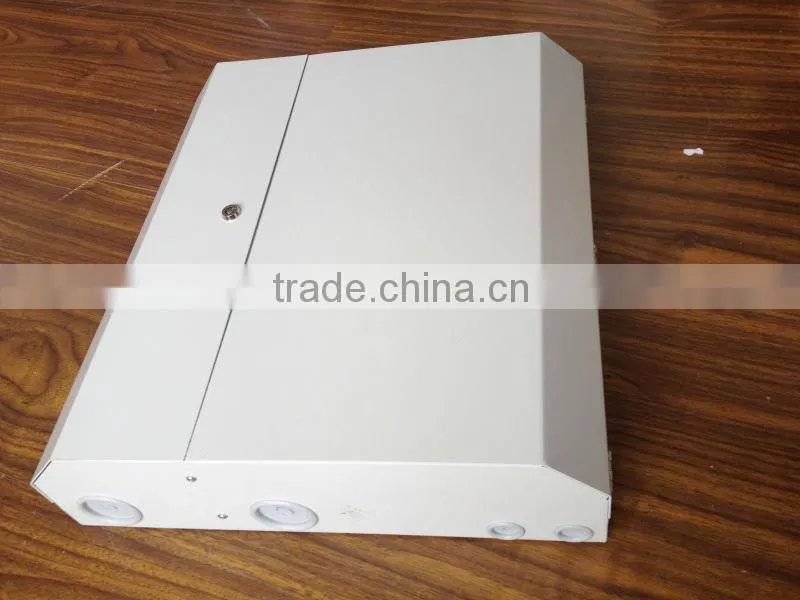

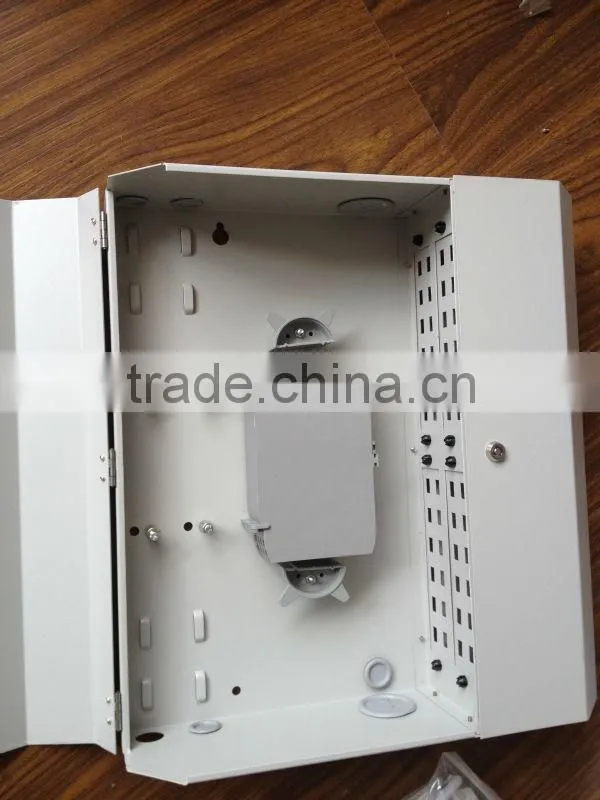

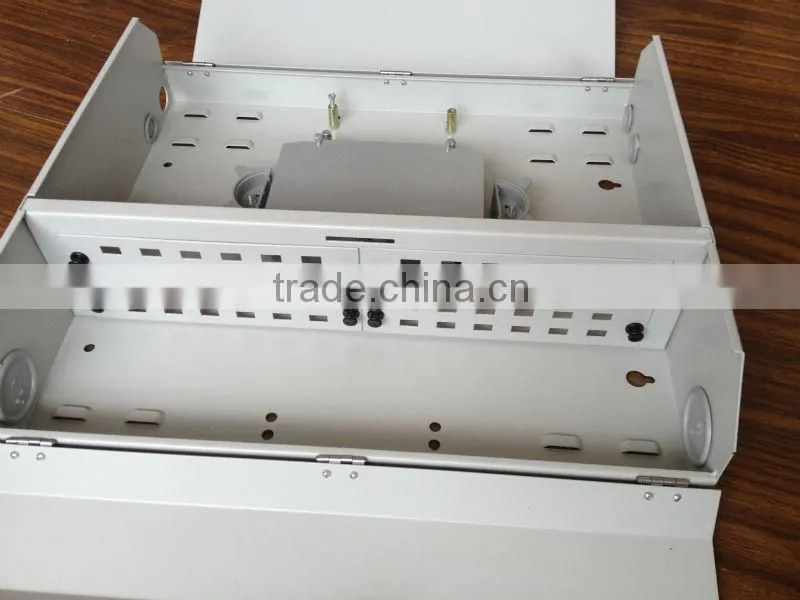

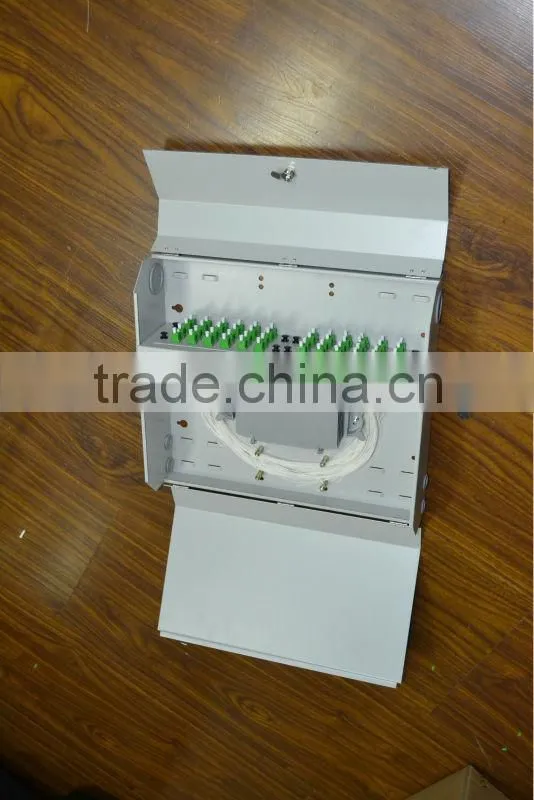

1.24 cores Indoor Type Wall Amount Fiber Optical Distribution Frame2.is used at optical access network terminal,
Wall Amount Distribution Frame OFS-W07 Indoor Type
1. Description:
1) Max. Capacity(core):96
2) Material: cold rolled steel plate
3)Packing: pp bags+Carton or customized Product summary:
4) Optical distribution box is used at optical access network terminal, it acts as the optical distribution and fusion
5) It is the combination of three functions: optical fusion, store and distribution
6) Fusion tray can be turned over, also can be pulled out to operate outside the box, the expansion of capacity is easy
7) Adaptor is installed with a certain angel, maintenance is easy, transmission loss is low
8) It suits to common optical fiber cable, also to band optical fiber cable's fusion
Environment conditions:
1) Working temperature: -45°C - 80°C
2) Relative humidity: ≤85% (30°C)
Dimension :
Modle |
Capacity |
Width (mm) |
Depth (mm) |
Height (mm) |
Weightv(kg) |
OFS-WS07-24 |
24 |
310 |
100 |
310 |
3.5 |
OFS-WS07-48 |
48 |
400 |
100 |
360 |
6 |
OFS-WS07-72 |
72 |
400 |
140 |
360 |
7.5 |
OFS-WS07-96 |
96 |
400 |
180 |
360 |
9.5 |
Minimum Order Quantity: 1~2piece/pieces
Port: Shenzhen
Packaging Details:carton
Delivery Time:7 days
Payment Terms:T/T ,L/C,Western Union
Supply ability:1000piece/pieces per Week
Warranty:1years
