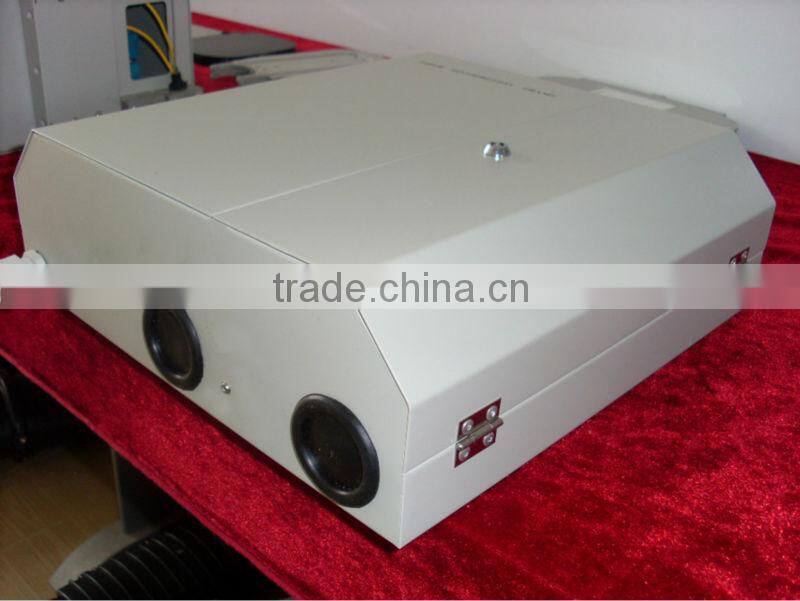

Optical distribution box is used at optical access network terminal, it acts as the optical distribution and fusionOFS-W07
Description:
1) Max. Capacity(core):96
2) Material: cold rolled steel plate
3)Packing: pp bags+Carton or customized Product summary:
4) Optical distribution box is used at optical access network terminal, it acts as the optical distribution and fusion
5) It is the combination of three functions: optical fusion, store and distribution
6) Fusion tray can be turned over, also can be pulled out to operate outside the box, the expansion of capacity is easy
7) Adaptor is installed with a certain angel, maintenance is easy, transmission loss is low
8) It suits to common optical fiber cable, also to band optical fiber cable's fusion
Environment conditions:
1) Working temperature: -45°C - 80°C
2) Relative humidity: ≤85% (30°C)
Dimension :
Modle |
Capacity |
Width (mm) |
Depth (mm) |
Height (mm) |
Weightv(kg) |
OFS-WS07-24 |
24 |
310 |
100 |
310 |
3.5 |
OFS-WS07-48 |
48 |
400 |
100 |
360 |
6 |
OFS-WS07-72 |
72 |
400 |
140 |
360 |
7.5 |
OFS-WS07-96 |
96 |
400 |
180 |
360 |
9.5 |

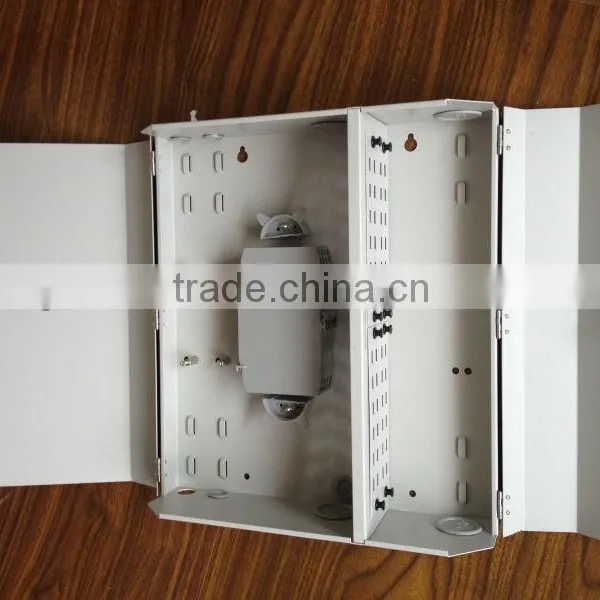

Intallation process:

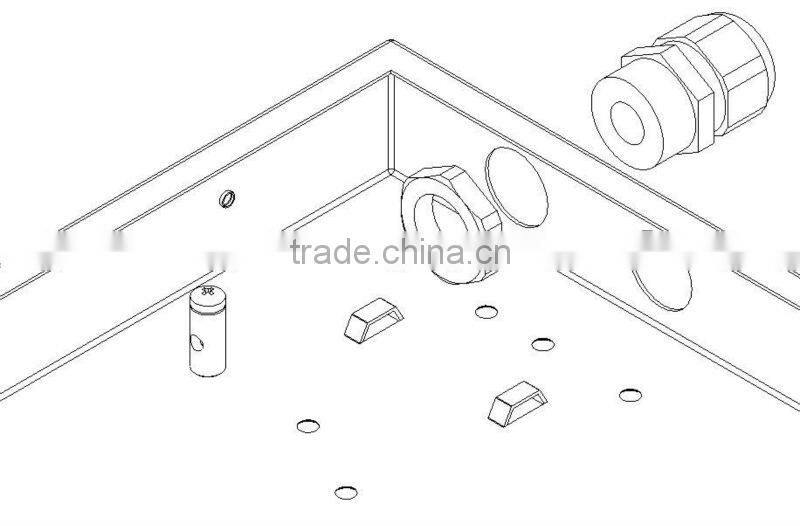

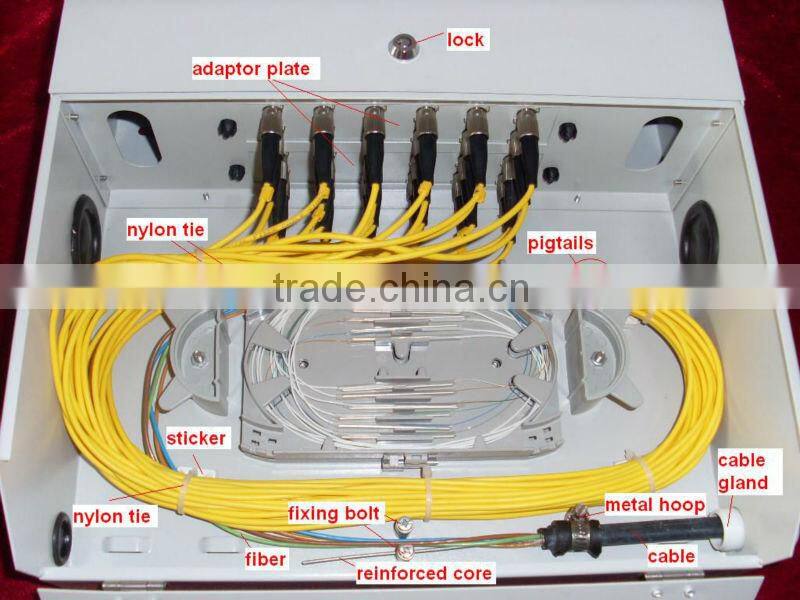

1) the cable get through from the side hole , and fixed by the metal hoop or the cable gland, enlace some adhesive tape on the cable to protect the cable, the reinforced core of cable will be fixed by the fixing bolt , and the cable will be managed by the sticker and nylon tie. ( See the following photo. )
Cable gland

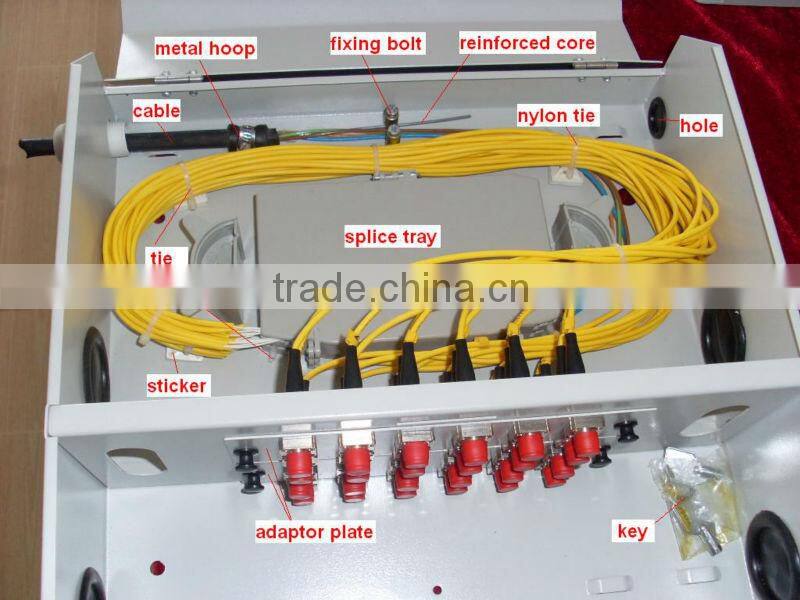

2) install adaptors on the adaptor plate ,and then enlace the pigtail in the ODF , and fix them by the stickers and nylon ties.

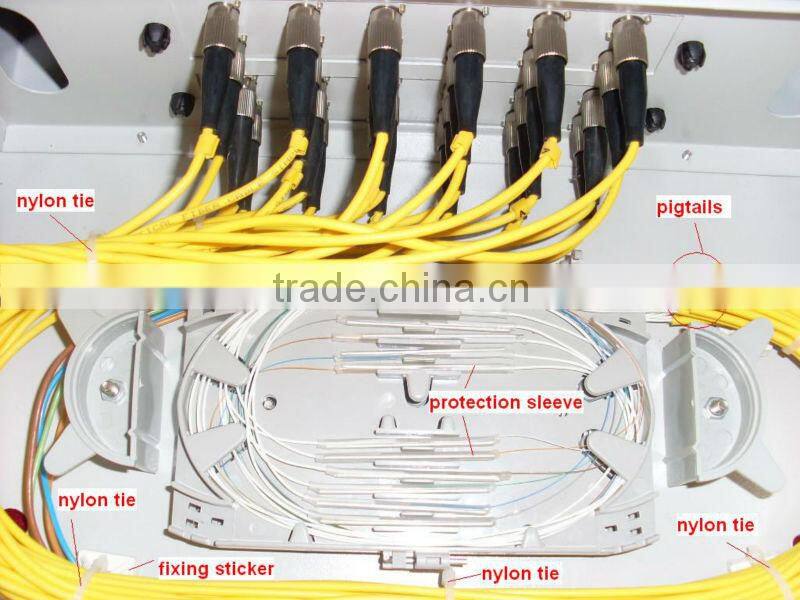

3) splice the fibers . and put the fibers in the splice tray after finishing it. keep certain bending radius . and then closre the splice tray cover.

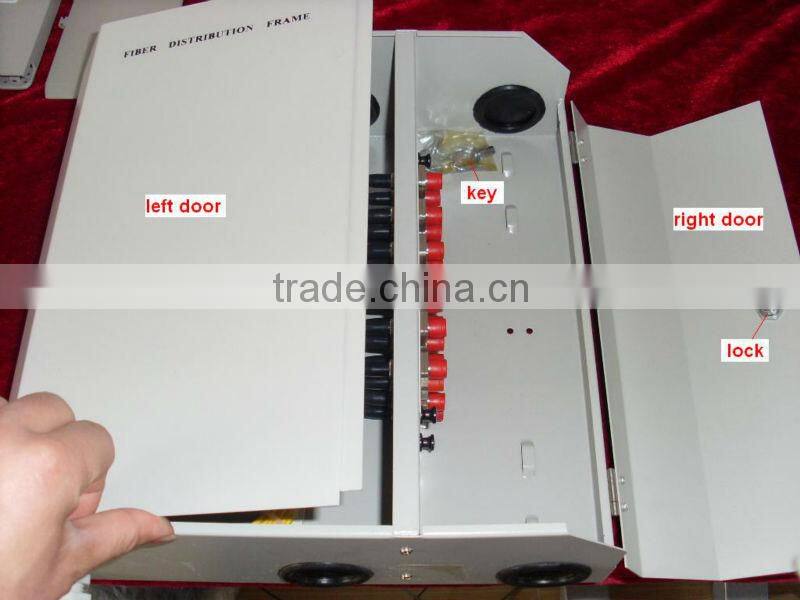

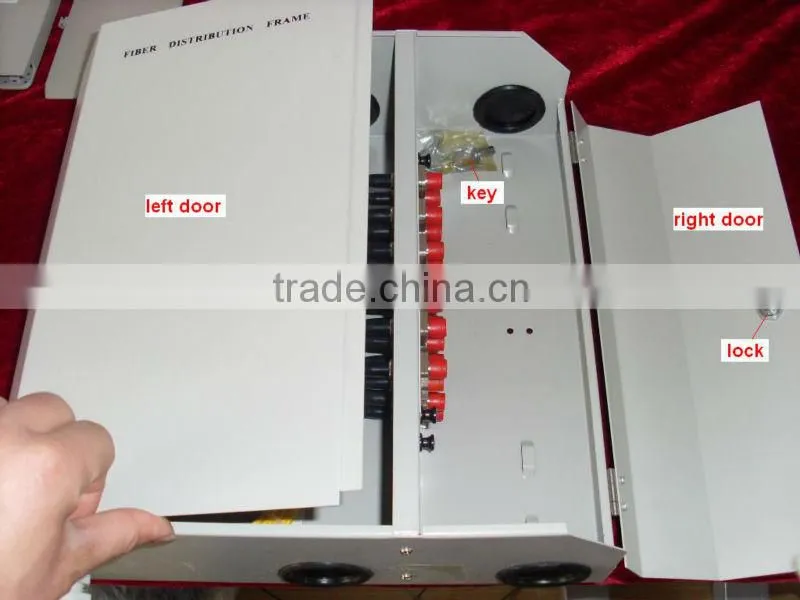

4) Close the cover of splice tray after splicing , and then close the door of ODF and lock it by key.
Finish the installation

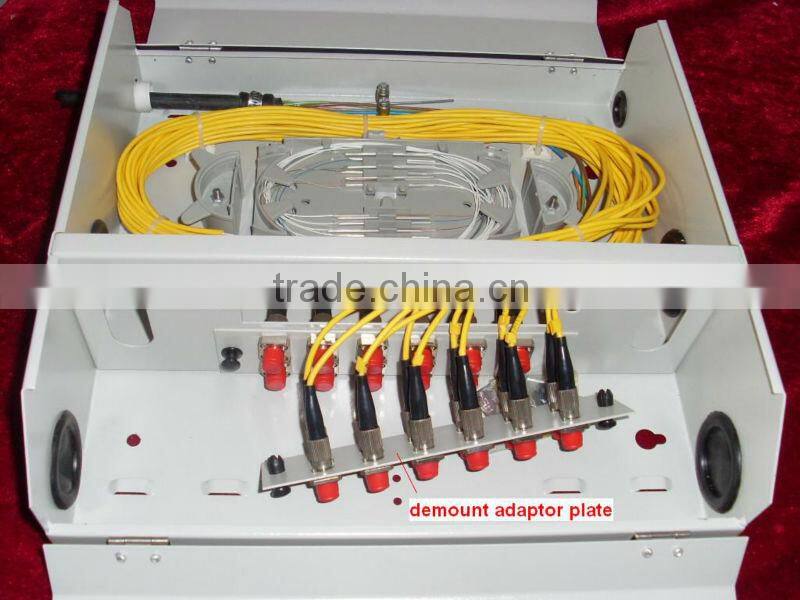

5) it is convenient for maintenance by demount the adaptor plate .

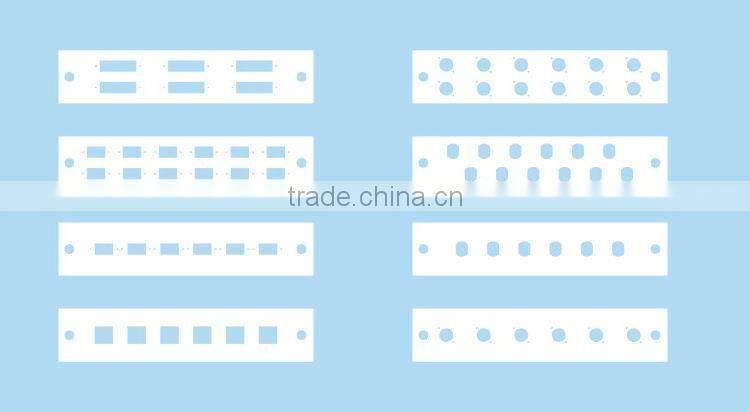

Different Adaptor plates are available according to customer requirement
