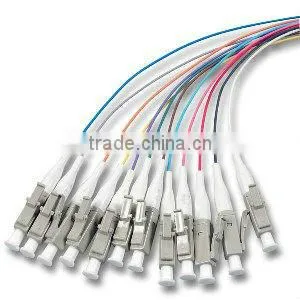

12 Color Pigtails

12 Color Pigtails thumbnail-1
12 Color Pigtails photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Optfocus
Model Number:
SC/APC 12 Color 12 Cores SM LSZH Fiber pigtail,SC
Contact Supplier Request Quote Chat Now
Shenzhen Optfocus Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Optfocus
Model Number SC/APC 12 Color 12 Cores SM LSZH Fiber pigtail,SC

Specifications

Features
*Low insertion loss
*High return loss
*Excellent interchangeability *High mechanical durability *Standard: RoHS

Performance Index

Item

Single mode

Multimode

Optical Fiber Diameter

9/125um

62.5/125um 50/125um

Insertion loss

PC ≤ 0.3dB APC ≤ 0.2dB

PC ≤ 0.3dB

Return loss

PC ≥ 45 dB APC ≥ 60 dB

PC ≥ 25 dB

Insert-Pull Test

(1000 times) less than 0.3dB

Interchangeability

≤ 0.2 dB

Operating temperature

-40°C~+80°C

Tensile strength

15kfg

Applications

*Telecommunication networks, Gigabit Ethernet

*CATV, Video, Multimedia

*Active device termination, Premise installations

*Industrial, Military

Ordering options

*Patch cord or pigtail

*Fiber type:9/125um(SM),50/125um(MM),62.5/125um(MM)

*Endface type: PC, APC,UPC

*Cable number:duplex,simplex

*Cable diameter:0.9mm,2.0mm,3.0mm......

*Cable length: customized

*Cable material: PVC,LSZH,OFNR,OFNP



Single Mode single window standard coupler

Grape

P

A

Operating Wavelength(nm)

1310 or 1550

Max. Insertion Loss(dB)

Schedule 1 P Grade

Schedule 1 P Grade

Uniformity(dB)

0.5

0.8

PDL(dB)

0.1

0.15







Single Mode Broadband Coupler



Single Window

Dual Window

Grape

P

A

P

A

Operating Wavelength(nm)

1310 or 1550

1310 and 1550

Operating Bandwidth(nm)

+/-40

Max. Insertion Loss(dB)

Schedule 1 P Grade

Schedule 1 P Grade

Schedule 2 P Grade

Schedule 2 A Grade

Uniformity(dB)

0.5

0.8

0.5

0.8

PDL(dB)

0.1

0.15

0.1

0.15







Single Mode tree/star Broadband Coupler

Star Structure

4*4

8*8

16*16





Tree Structure

1*4

1*8

1*16



Single window

Dual window

Single window

Dual window

Single window

Dual window

Grade

P

A

P

A

P

A

P

A

P

A

P

A

Operating Wavelength(nm)

1310 or 1550

1310 and 1550

1310 or 1550

1310 and 1550

1310 or 1550

1310 and 1550

Operating Bandwidth(nm)

+/-40

Max. Insertion Loss(dB)

</=6.8

</=7.5

</=7.2

</=7.6

</=10.2

</=11.4

</=10.8

</=11.8

</=13.6

</=15

</=14.4

</=15.5

Uniformity(dB)

</=1.2

</=2.0

</=1.5

</=1.8

</=2.0

</=3.0

</=2.0

</=2.4

</=2.4

</=3.8

</=2.5

</=3.5

PDL(dB)

0.2

0.3

0.3

0.5

0.4

0.6
