Specifications

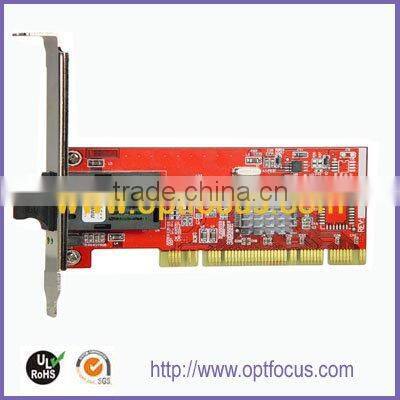

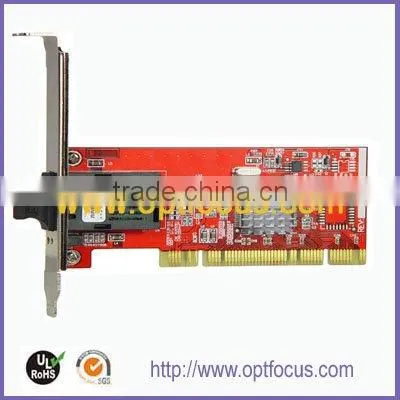

100M/1000M PCI TOpci serial cardOptical transeiver optional with different SFP or 1X9 module.
Plug and play install
100M/1000M PCI TOpci serial card
Optical Ethernet adapter/100MOptical Ethernet adapter
OFS Series Optical Ethernet adapter is designed to operate at 100Mbps(1000Mbps) and to provide a network throughput of 200Mbps (2000Mbps) in full-duplex mode. It offers a range of options, such as fiber / connector type and operating wavelength / reach, to meet the requirement of various applications. The Optical Ethernet adapter also supports IEEE802.3x Flow Control Enhancements. Its optical transceiver is optional with different SFP module
Features
Optical transceiver optional with different SFP or 1x9 module
Plug and Play installation
Support Flow Control enabled with full duplex operation
PCI Bus Master direct memory access for high throughput and low CPU utilization
Two LED indicators: Link/Act, Power
Drivers for all leading Network Operating Systems
Standard Protocol
100M Optical Ethernet adapter IEEE 802.3u 100Base-FX / IEEE 802.3ah 100Base-LX10 / -BX10 Ethernet standard.
1000M Optical Ethernet adapter IEEE 802.3z 1000Base-SX / 1000Base-LX Ethernet standard.
IEEE 802.3x Flow Control
IEEE 802.1q/ VLAN Tagging supported
GVRP VLAN
IEEE 802.1p. priority class of service
Compliant with ACPI specification.
PCI 2.2 or PCI-E standard
Optical Interface
SFP module:
Optical Ethernet 1000Base-SX/ 1000Base-LX SFP Optical transceiver module
1x9 module
Single single-mode fiber, dual wavelength 1310nm / 1550nm, single SC/PC connector, 20/40 km reach
Dual single-mode fibers, single wavelength 1310nm or 1550nm, dual SC/PC connectors, 20/40/60 km reach
Dual multimode fibers, single wavelength: 1310nm, dual SC/PC connectors, 2 km reach
Model |
Product description |
OFS-N101 |
100M SFP Port Optical Ethernet adapter PCI 2.2 |
OFS-N102M |
100M multimode Optical Ethernet adapter PCI 2.2 |
OFS-N102S |
100M singlemode Optical Ethernet adapter PCI 2.2 |
OFS-N201 |
1000M SFP Port Optical Ethernet adapter PCI 2.2 |
OFS-N202M |
1000M multimode Optical Ethernet adapter PCI -E |
OFS-N202S |
1000M singlemode Optical Ethernet adapter PCI -E |
