Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > ip to Analog Converter / Gigabyte Fiber Converters

ip to Analog Converter / Gigabyte Fiber Converters

Name: ip to Analog Converter / Gigabyte Fiber Converters
Brand: Optfocus
SKU: 107904459
Availability: InStock

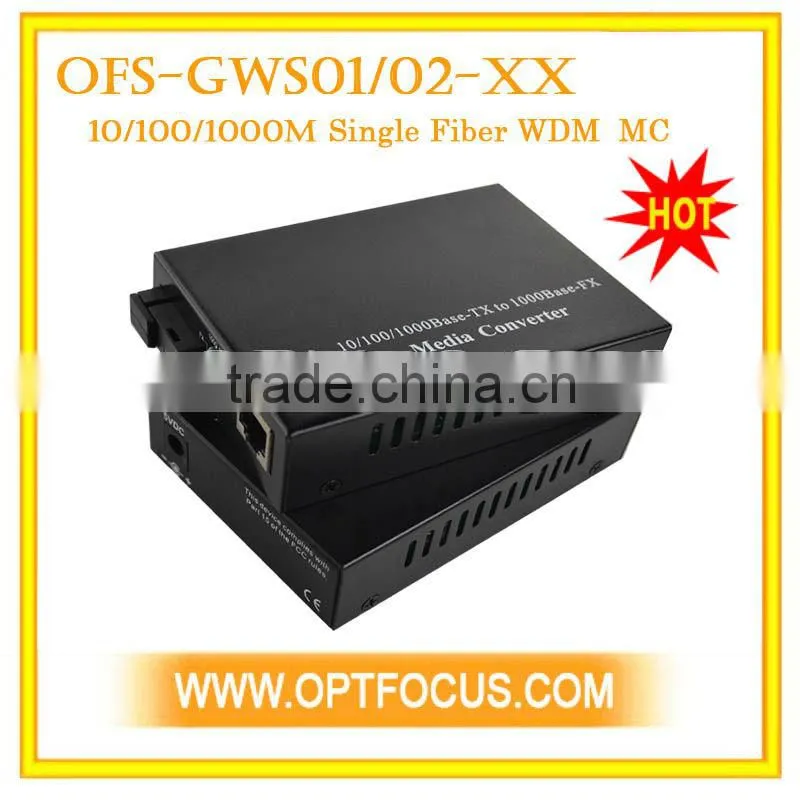

ip to Analog Converter / Gigabyte Fiber Converters thumbnail-1

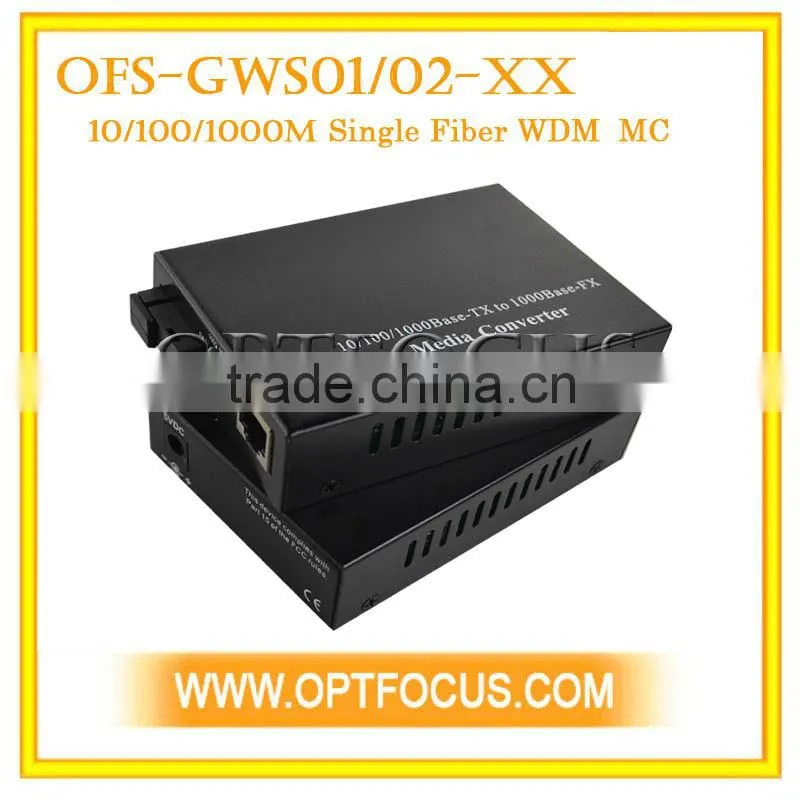

ip to Analog Converter / Gigabyte Fiber Converters photo-1

Negotiable MOQ: 1 Pair (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Optfocus

Model Number:

OFS-GWS01/02

Contact Supplier Request Quote Chat Now

Shenzhen Optfocus Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Optfocus

Model Number OFS-GWS01/02

Specifications

Full Duplex: IEEE802.3x
Half Duplex: back pressure
Power: AC. 220V(170-260V),50Hz; DC. 5V,2A

10/100/1000M Gigabyte Optical Fiber Media Converter

OFS Gigabit Single Fiber Converter can convert Optical-Electric Ethernet signals between 10/100/1000M UTP interface (TX) and 1000M optical fiber interface (FX). The traditional 10/100/1000M gigabit Ethernet can be extended to the distance of 90km through single optical fiber link. The performance and quality of the products are excellent because of adopting latest Gigabyte IC from USA and Taiwan. It must be used in couples,because the transmitted optical differs from the receive optical in wavelength. 6 Group LED indicated lights could fully monitor the working conditions of converters. It is easy for users to observe and diagnose the failure of converters.

Main features

The transmission of a channel signals can be completed by single fiber. It has doubled in quantity of fiber data transmission compared with twin fiber.

Auto negotiation function allows UTP port to auto select 10/100/1000M and Full Duplex or Half Duplex

The UTP port supports MDI / MDI-X auto crossover.

Supporting the max 1536 bytes packets

Adopting internal power supply to insure equipment at long-hours work stably.

Technical Specifications

Operating standards: IEEE802.3z/AB, 1000Base-T and 1000Base-SX/LX

MAC address table: 4K

Data Buffer: 256K

Connector: UTP: RJ-45,10/100/1000Mbps; Fiber: SC,1000Mbps.

Cable :

UTP: Cat.5e or Cat.6 (the max distance up to 100m)

Fiber (singlemode): 8.3/125, 8.7/125, 9/125, 10/125µm (the max distance up to 90km)

Flow control:

Full Duplex: IEEE802.3x

Half Duplex: back pressure

Power: AC. 220V(170-260V),50Hz; DC. 5V,2A

Ambient temperature:0 ~ +50°C

Storage temperature:-20 ~ +70°C

Humidity:5% ~ 90%

Dimensions:40 (high) x 110(width) x 140 (length) mm

Fiber Optic Information

Type	connector	Max distance	Wavelength	TX power	Sensitivity	Link Budget
OFS-GWS01/02-20	SC	20km	1310/ 1550nm	-11 ~-5dBm	-23dBm	12dBm
OFS-GWS01/02-40	SC	40km	1310/ 1550nm	-5/-8 ~0dBm	-26dBm	21/18dBm
OFS-GWS01/02-60	SC	60km	1310/ 1550nm	0/-5 ~2dBm	-26dBm	26/21dBm
OFS-GWS01/02-80	SC	80km	1490/ 1550nm	-2 ~3dBm	-26dBm	24dBm

Order Information

Model	Product description
OFS-GWS01/02 -xx	10/100/1000M singlemode single fiber converters must be used and ordered in couples. One set of WS01 must be connected with another set of WS02 for using. WS01 transmitted optical wavelength 1310nm, receive optical wavelength 1550nm; WS02 transmitted optical wavelength 1550nm, receive optical wavelength 1310nm. The max distance of fiber is up to 20, 40, 60 or 80km. XX is the amount of distance.
