Home > Products > Fiber Media Converter > OEM80km 10/100M Single fiber singlemode SC fiber optcial converter with LFP

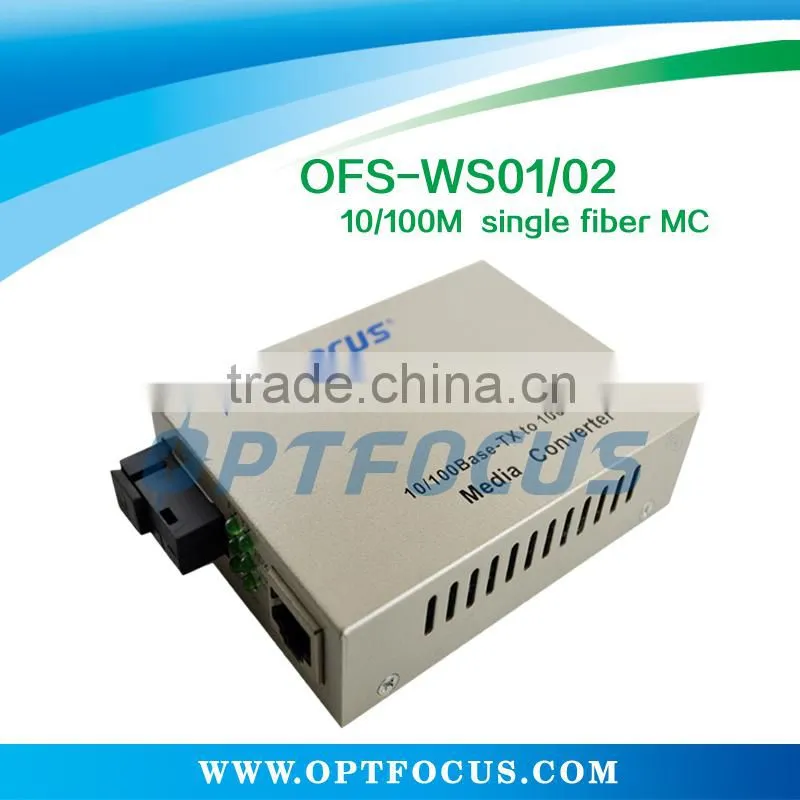

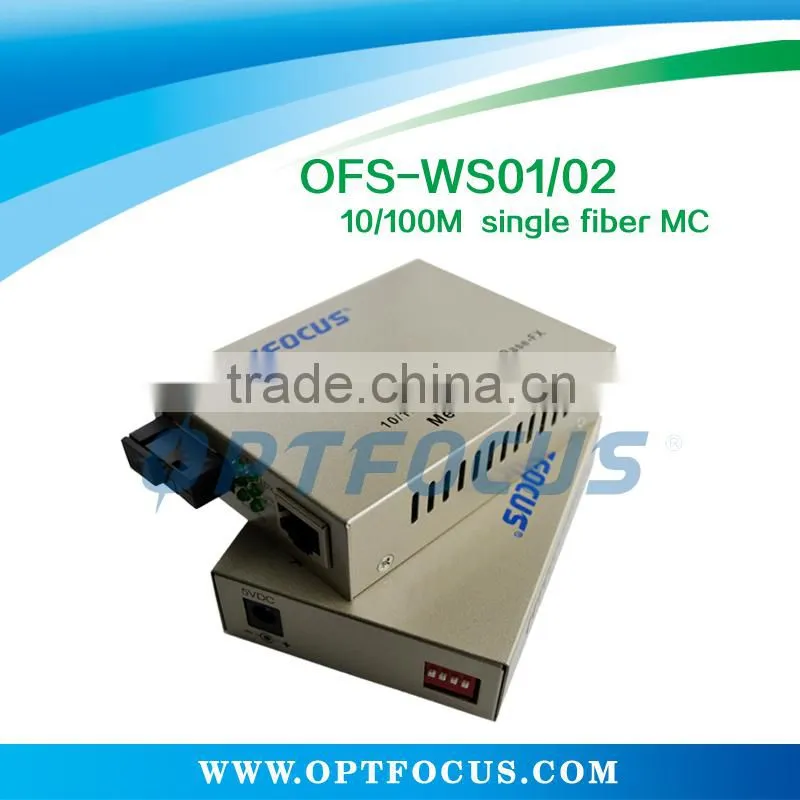

OEM80km 10/100M Single fiber singlemode SC fiber optcial converter with LFP
- 20000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | OPTFOCUS | |
| Model Number | OFS-WS01/02-80 |
Product Description
10/100M fiber optcial converter 80km
10/100base-fx-100base tx single fiber media converter/100M bi-di fast ethnet fiber converter
Technical Specifications
1.Operating standardsIEEE802.3u10/100Base-TX and 100Base-FX
2.MAC addresses table: 1K
3.Data buffer: 128K.
4.Connectors: UTP Connector: RJ-45, 10/100Mbps; Fiber Connector: SC, 100Mbps
5.UTP: Cat. 5 UTP cable (the max distance up to100m)
6.Fiber ( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μmthe max distance up to 90km
7.Flow Control
Full Duplex: IEEE802.3x
Half Duplex: back pressure
Fiber Optic Information
Type | connector | Max distance | Wavelength | TX power | Sensitivity | Link Budget |
OFS-WS01/02-20 | SC | 20km | 1310/1550nm | -14-6dBm | -32dBm | 18dBm |
OFS-WS01/02-40 | SC | 40km | 1310/1550nm | -8/-9-3dBm | -35dBm | 27/26dBm |
OFS-WS01/02-60 | SC | 60km | 1310/1550nm | -5/-70dBm | -37dBm | 32/30dBm |
OFS-WS01/02-80 | SC | 80km | 1310/1550nm | -3/-52dBm | -37dBm | 34/32dBm |
Order Information
Model | Product description |
OFS-WS01/02 -xx | 10/100M Singlemode Single Fiber Converters must be used and orderd in couples. One set of WS01 must be connected with another set of WS02 for using. WS01 transmitted optical wavelength 1310nm, receive optical wavelength 1550nm; WS02 transmitted optical wavelength 1550nm, receive optical wavelength 1310nm. The max distance of fiber is up to 20, 40, 60, 80 km. XX is the amount of distance. |
Payment & Shipping Terms
Minimum Order Quantity: 1~2piece/pieces
Port: Shenzhen
Packaging Details:20pcs/carton carton size:31*50*33CM 10kgs/carton
Delivery Time:7 days
Payment Terms:T/T ,L/C/Western Union
Supply ability:2000 Piece/Pieces per Week
Warranty:2years
