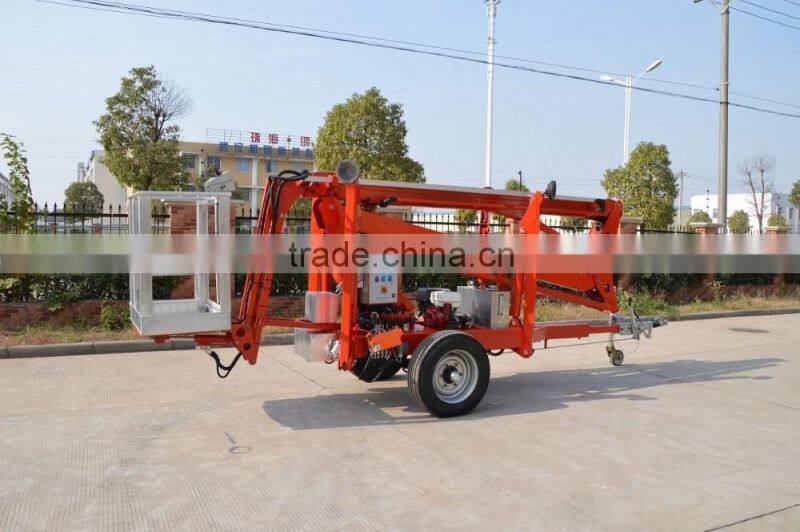

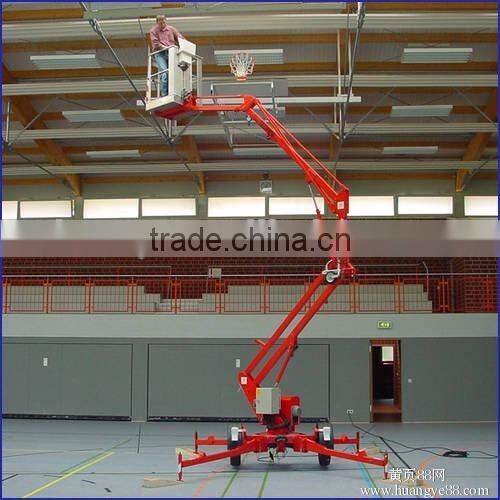

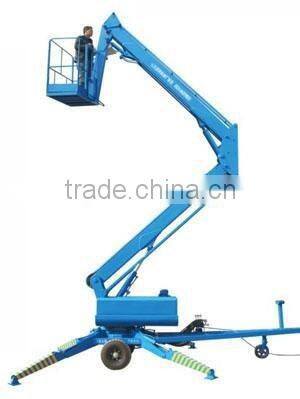

ce approved articulated spider lifts for sale 12-14m
1.Product Description
It is used for maintenance or aerial work ,can also move a short distance
It can move upward and downward automatically ,be operated both an platform or ground
With compact structure of lift could be used in tight space
2.Advantages:
1)Two sources of power :storage battery and Diesel engine ,and the storage battery works without noise
2)Without four-automatic hydraulic legs ,it can be more stable
3)Boom rotation it can work across the barriers
3.Safety :
1).Explosion-proof valves :protect hydraulic pipe ,ant-hydraulic pipe rupture
2).Spillover valve :it can prevent high pressure when the machine moves up ,adjust the pressure
3).Emergency decline valve ::it can go down when you meet an emergency
4).Phase lack &phase dislocation protection .
4.Technical specifications
Model |
HTZB-8 |
HTZB-10 |
HTZB-12 |
HEZB-14 |
HTZB-16 |
Platform height(m) |
8 |
10 |
12 |
14 |
16 |
Max. work height(m) |
10 |
12 |
14 |
16 |
18 |
Max. horizontal extent(m) |
3.5 |
4m |
5.5m |
6.5m |
7m |
Rotation |
360° |
360° |
360° |
360° |
360° |
Platform capacity(kg) |
200 |
200 |
200 |
200 |
200 |
Platform Size (mm) |
1100*700 |
1100*700 |
1100*700 |
1100*700 |
1100*700 |
duct show
1)Lifting condition: 360 degree rotation
2).Working Platform: Load capacity: 200kg
3).Controller: enables user control lift freely on platform or ground.
4).Automatic hydraulic support legs, provide high-provide stability when working.
5).Hydraulic boom: working by the power of hydraulic cylinders.
6).Provide aerial work solutions.Just tell us what aerial lifts needed.
| Packaging Details: | stander export packing |
|---|---|
| Delivery Detail: | 15 days after confirmation of the purchase order |
1. How about the delivery time?
Within 15 working days after we receive the order
2. What kind of payments do you support?
T/T, L/C, other kinds, pls contact with us.
3. What is the MOQ?
Generally speaking, the MOQ is 1 set, Different products have different MOQ. More quantity, better price. pls contact with us.
4. Can you produce according to customer's requirements?
Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and platform size,
OEM we are also welcome.
5. Can you tell us your main customers?
That's our customer's privacy, we should protect their information, when you need, we ask them first, if agree, we can tell u.
At the same time, pls rest assured that your information is also safe here.
Jinan Honty lift was founded in 2005, which is one of the main manufacturer of hydraulic equipments located in China elevator base. Since the revolution in 2006, we took the development on the technology of hydraulic lifting table as well as elevator, and now we are the main number of the manufacturer of Lifting, Transportation, Stocking and Logistics of China, and we are also given the honor of “Company with good credit” by the Chinese Government.
We have excellent equipment, advanced technology, perfect detection method and skilled technicians as well; we have 12 series, more than 100 models products, main business is to design and manufacture non-standard product.
Our products approved -CE&ISO,exported to Europe North America South America Mid-east Southeast Asia Easten Asia,etc.got good reputation. As one of China's lift machine leading enterprises, we are committed to create the world advanced level lift.
