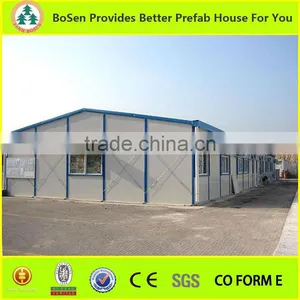

prefabricated apartments building house model

Specifications

sandwich panel prefab houses:
1. cost-effectiveness
2. durable structure
3. environment protection
4. easy assembly





Advantages
Number	Item	Content
1	Low cost	Low labour and material costs
2	Long life	over 10 years
3	Recycling use	Reused for more than 10 times
4	Easy assembly	100m2house assembled by 6 workers in 2 days
5	Flexible layout	Layout adjusted according to your requirement
6	Beautiful appearance	Optional colors of panels: Ivory white, off-white, sky-blue, lotus-green, red, etc.
7	Environment protection	Environment-friendly materials used
8	Safe & Stable steel structure	Earthquake proof & Wind resistance







General Specifications of Two-Storey Slope-top Prefab House







Foshan Nanhai BoSen Building Materials Co., Ltd.
Two-storey Slope-top Prefab House
Number	Component	Material			Specifications
A,Main Steel-structure
1	Stand column	Double #8 C type steel			80*35*15*1.8mm
2	Ground beam	#8 C type steel			80*35*15*1.8mm
3	Ring beam	#8 C type steel			80*35*15*1.8mm
4	Herringbone beam	#8 C type steel			80*35*15*1.8mm
5	Roof purlin	#8 C type steel			80*35*15*1.8mm
6	Cross beam	#8 C type steel			80*35*15*1.8mm
7	Floor purlin	#8 C type steel			80*35*15*1.8mm
8	stairway	#16 C type steel			160*45*15*2.5mm
9	slidewalk	checkered plate			thickness: 3mm
B,Wall
1	External wall panel	EPS(polystyrene) /Rock wool sandwich panel / Cement-polystyrene Panel / PU (Polyurethane) sandwich panel			Thickness of EPS(polystyrene) /Rock wool /Cement-polystyrene sandwich Panel: 50mm/75mm/100mm
					Thickness of color steel sheets (covering polystyrene / Rock wool): 0.25mm-0.5mm)
2	Internal wall panel	EPS(polystyrene) /Rock wool sandwich panel / Cement-polystyrene Panel / PU (Polyurethane) sandwich panel			Thickness of EPS(polystyrene) /Rock wool /Cement-polystyrene sandwich Panel: 50mm/75mm/100mm
					Thickness of color steel sheets (covering polystyrene / Rock wool): 0.25mm-0.5mm)
C,Roofing
1	Roof panel	PU foaming tiel/ EPS(polystyrene) /Rock wool / PU(Polyurethane) corrugated steel sheets			Thickness of EPS(polystyrene) /Rock wool sandwich Panel: 50mm/75mm/100mm
					Thickness of corrugated steel sheets (covering polystyrene / Rock wool): 0.25mm-0.5mm)
D,Window & Door
1	Window	Plastic steel / Aluminum alloy sliding window			For Dimension and Qty, please check the drawing
2	Door	Color steel composite door panel(EPS sandwich panel) with aluminum alloy doorframe / Security door			For Dimension and Qty, please check the drawing
E,Accessories
1	Accessories :	Setscrew, pop rivet, self-tapping screw, screw,silicon sealant, canopy, etc..
2	Optional spare parts	exhaust fan, electricity system and water pipes, etc.







Cut-open view:







 Main Steel Structure:























Note:

The structure shouldn’t be adjusted and any accessories such as bolts and screws shouldn’t be disassembled after the completion of the house without negotiating with and getting approval from the manufacturer.





Fields of Application

1. Office

2. Canteen

3. Rest room

4. Restaurants

5. Conference room

6. Temporary shelter

7. Field work station

8. Residential housing

9. Temporary building on construction sites, etc.
