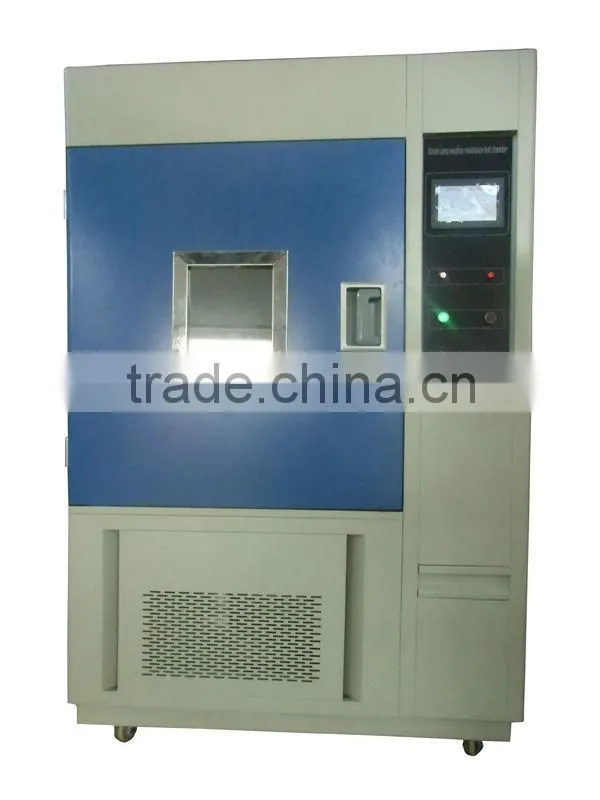

Xenon Lamp Solar Simulator for Solar Cell
Xenon Lamp Solar Simulator for Solar Cell
Xenon Lamp Solar Simulator adopts the xenon arc lamp that can simulate full sunlight
spectrum to reproduce destructive light waves existing in different environments so as to provide the corresponding environment simulation and acceleration test for scientific research, product development and quality control. It is approved by many OEMs in the automotive, paints and coatings, and plastics industries as the exclusive platform to deliver accurate, reproducible and repeatable results for predicting service life.
Technical Information
Model |
XL-500 |
XL-750 |
Internal dimension (mm) |
500*760*500 |
950*950*850 |
External dimension (mm) |
1200*1150*1480 |
1280*1320*1980 |
Technical structure | ||
Lamp quantity |
3 pc |
|
Lamp cooling mode |
Air cooling |
|
Temperature range |
Ambient ~70℃ |
|
Distance between sample and lamp |
50mm |
|
Humidity range |
50~98% R.H |
|
UV wavelength |
280nm~400nm UV-A, UV-B |
|
Spectrum wavelength |
280nm~800nm |
|
Rainfall time |
1~9999 minute, settable |
|
Rainfall cycle |
1~240 minute, interval settable |
|
Irradiance |
100~1200 W/m2 |
|
Xenon lamp power |
1.5 KW per lamp (life time: 1600 hours) |
|
Control system | ||
Controller |
Programmable color touch-screen controller |
Sensor |
PTR Platinum Resistance PT100Ω/MV |
Heating system |
Independent Nichrome electronic heating system |
Cooling system |
French TECUMSEH compressor |
Humidification system |
External isolation, stainless steel surface evaporation humidifier |
BST Temperature |
Black standard Thermometer |
Dehumidification system |
Evaporator |
Water supply system |
Automatic control, water saving and power reducing |
Circulatory system |
Cold resistance and low noise centrifugal wind wheel |
Material | |
Exterior material |
Steel Plate with coating |
Interior material |
SUS304 stainlesssteel |
Insulation window |
Double thermostability silicone rubber sealing |
Standardconfiguration |
1 Cable hole (Φ 50,) cover, 2 sets of shelf, 2 protector tubes, 1 overflow water tube,1 copy of operating specification |
Timing Function |
0.1~999.9 (S,M,H) settable |
Power Supply |
AC380V 50HZ Three-phase five line system |
Ambient Temperature |
5℃~+30 ℃ ≤85% RH |

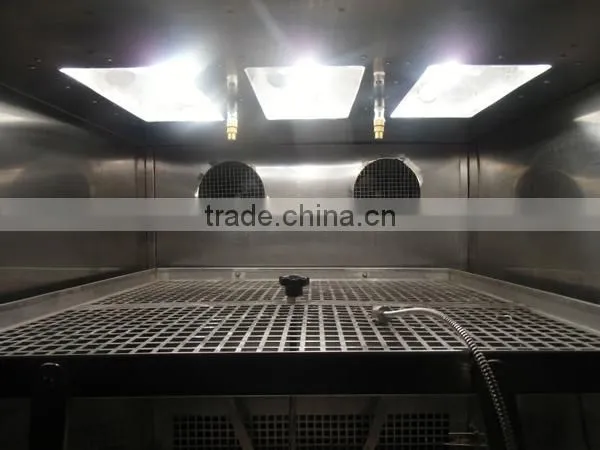

Workroom
Xenon Lamp

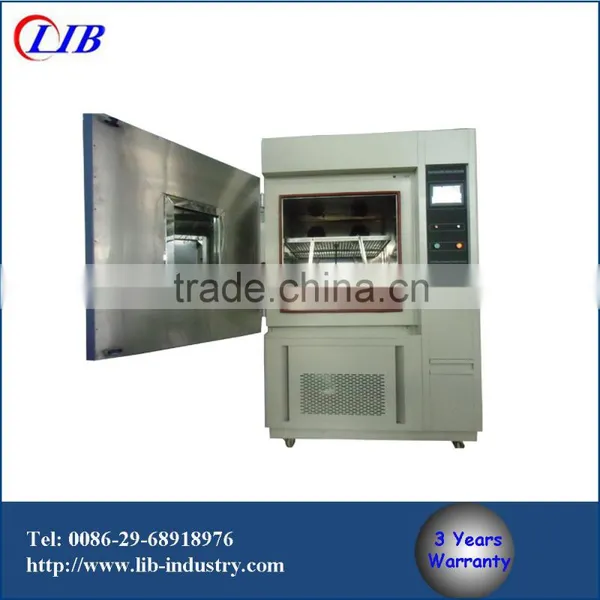

Test holder could be adjustable

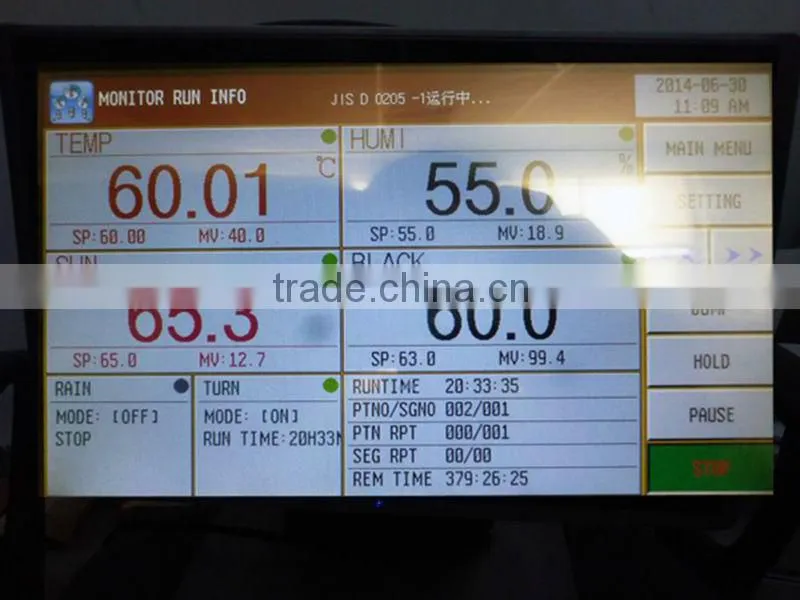

Color Touch Screen Controller

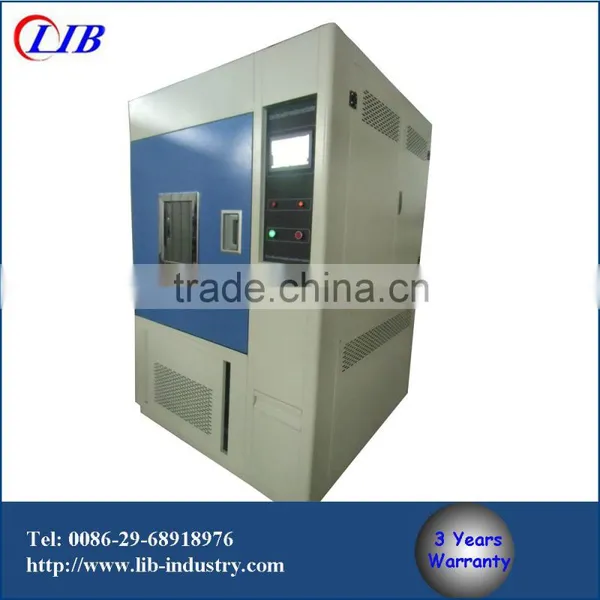

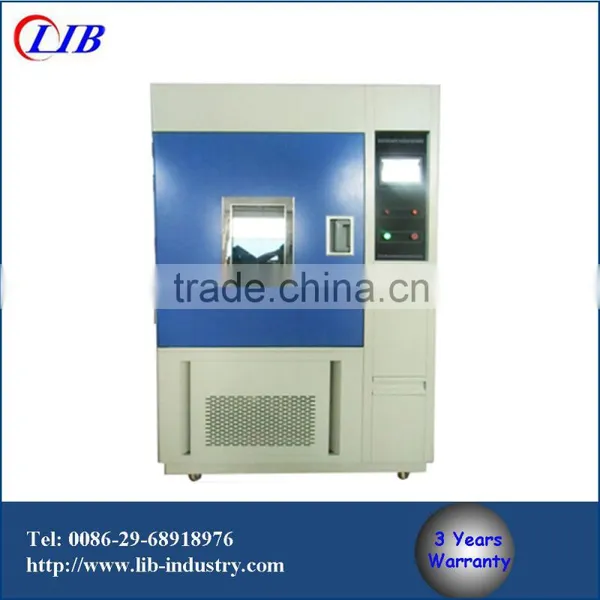

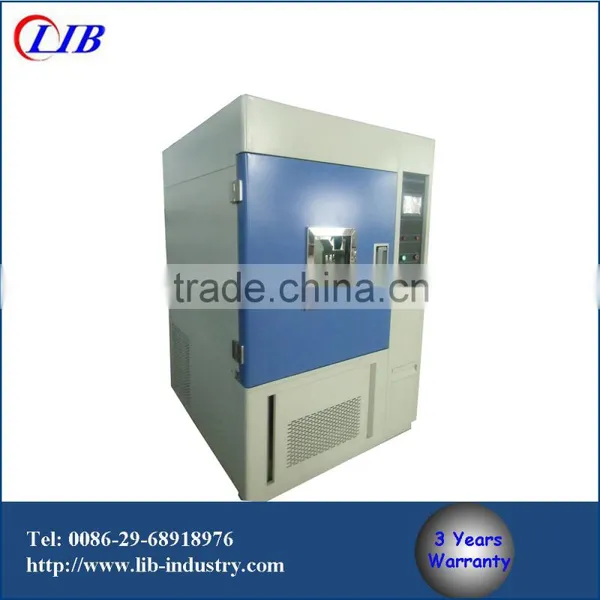

More Pictures Showing
LIB Industry Warranty (Three Years)
All of LIB test chambers have three years warranty . During warranty period, if the equipment is under the ordinary usage and arise any hardware problem which caused by product itself, rather than human error, we will offer the repair to you.
* Firstly, we can provide the spare parts with you. And also provide the solution about the
trouble of the products.
* Secondly, Please send back the apparatus, which will be repaired by our company.
* Lastly, we would like to appoint our technical engineer to your company to repair the apparatus.
